Shift Lever Disassembly/Reassembly

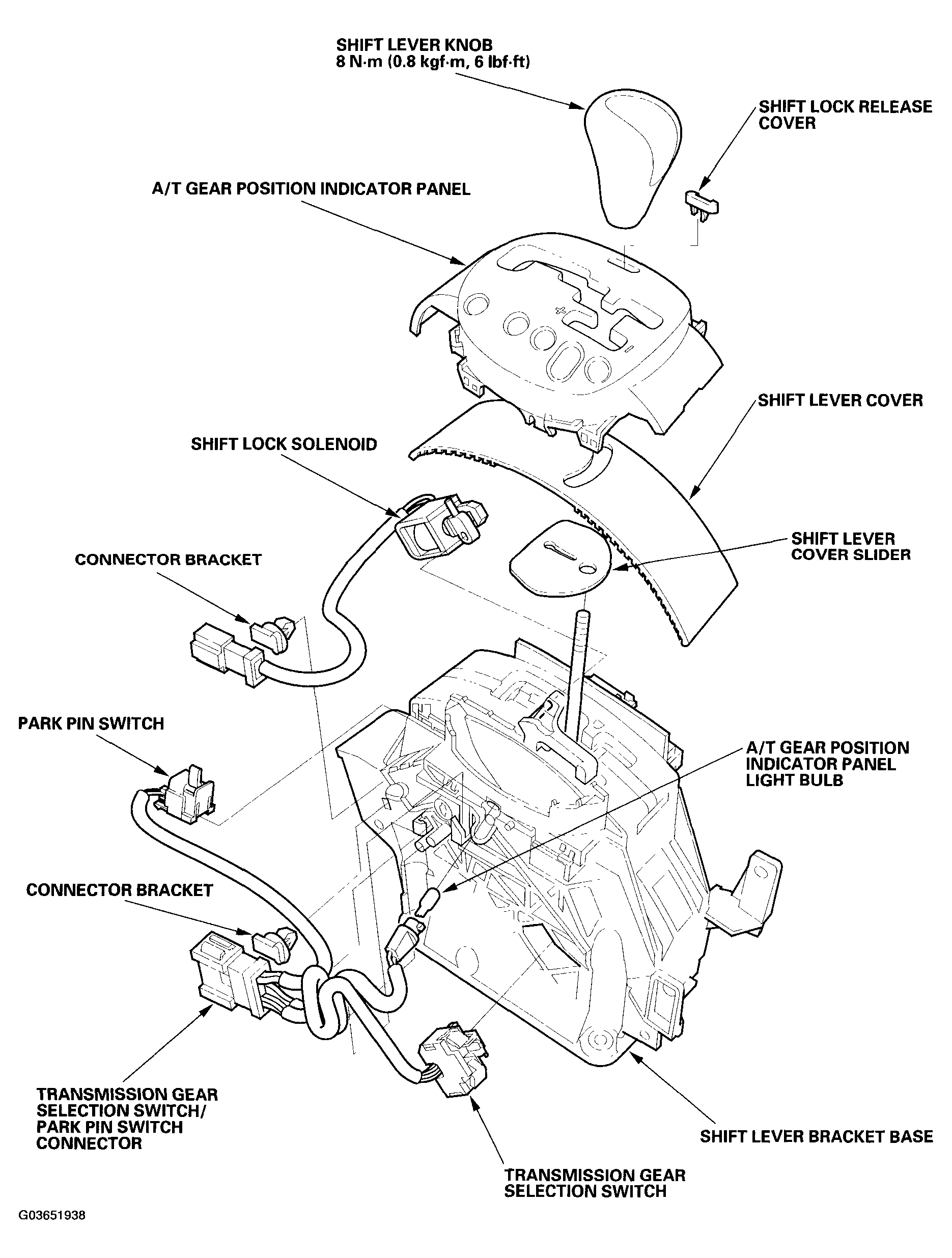

Fig 1: Disassembling/Reassembling Shift Lever And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
