Servo Body

The servo body contains the servo valve, the shift valve D, accumulators for 2nd, 4th, and 5th, and shift solenoid valves for A, B, C, D, and E.

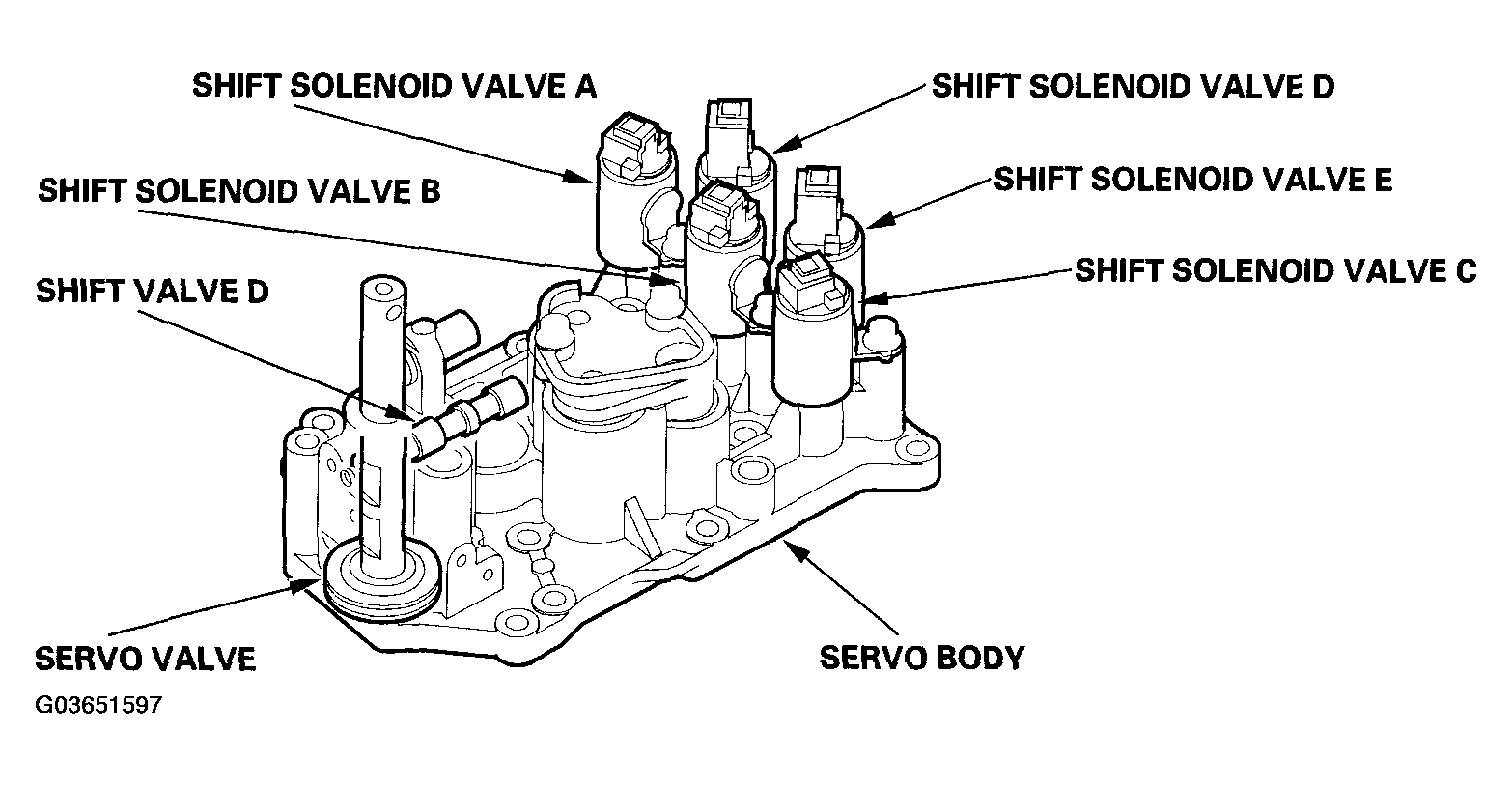

Fig 1: Identifying Hydraulic Controls Servo Body

Courtesy of AMERICAN HONDA MOTOR CO., INC.
