K20A3 engine

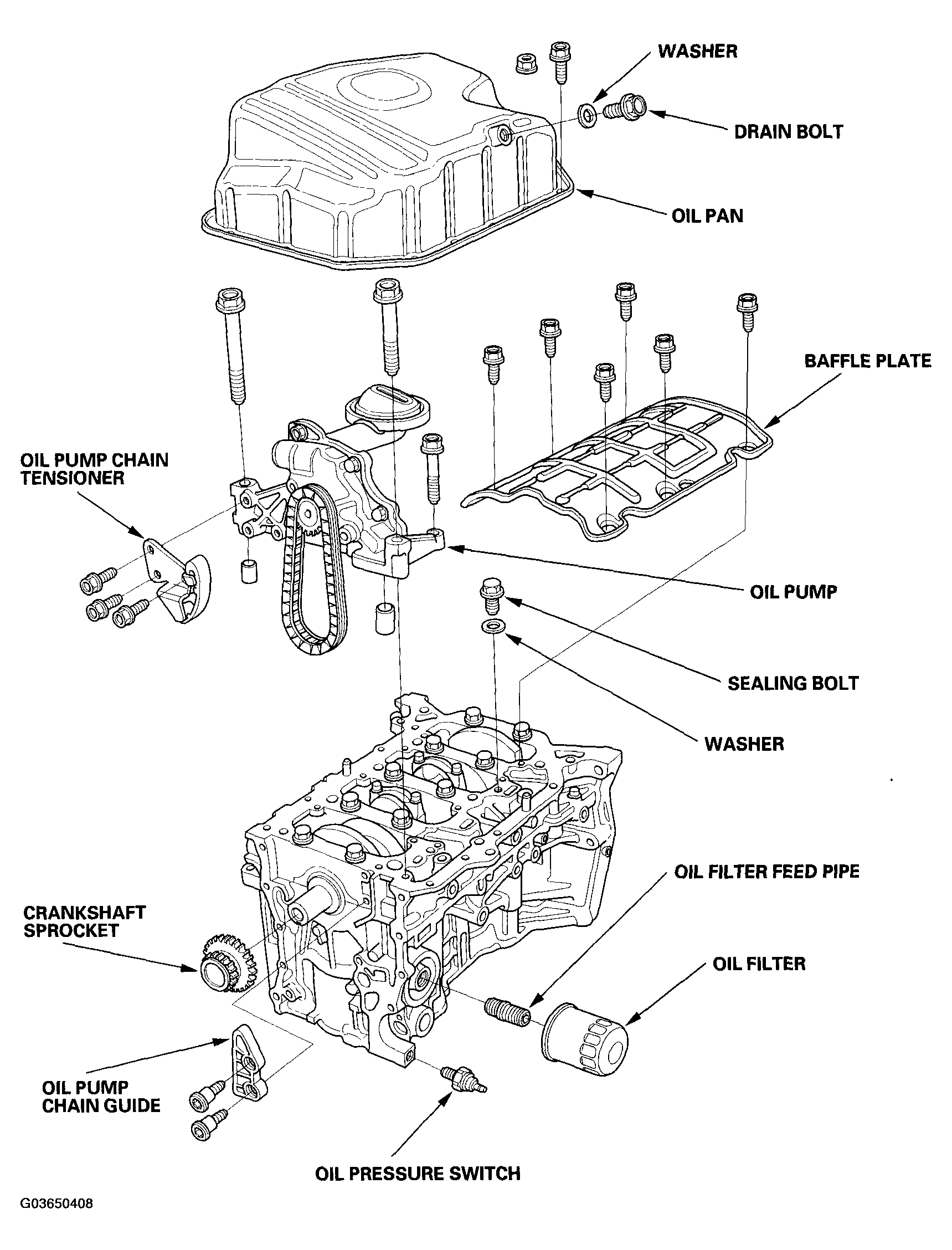

Fig 1: Engine Lubrication Component Location Index (1 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
