Oil Pressure Switch Replacement

  1. Disconnect the oil pressure switch connector, then remove the oil pressure switch.

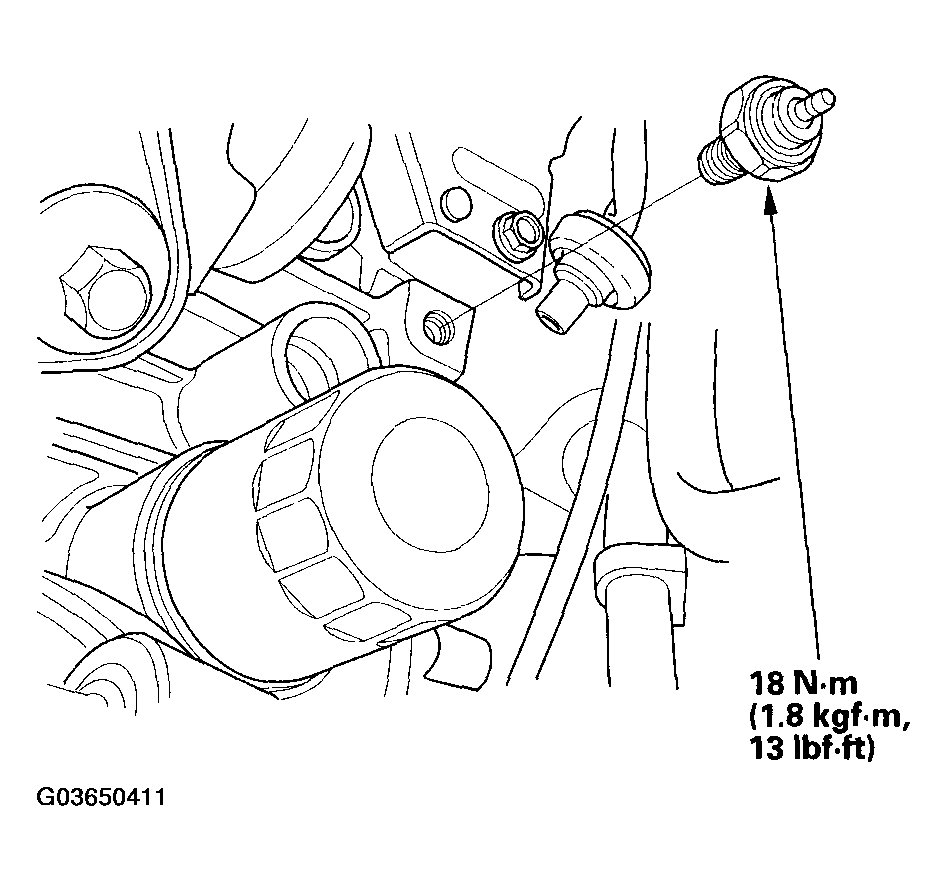

    Fig 1: Disconnecting Oil Pressure Switch Connector And Torque Specifications
    G03650411Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Apply liquid gasket to the oil pressure switch threads, then install the oil pressure switch.
    NOTE: Using too much liquid gasket may cause liquid gasket to enter the oil passage or the end of the new oil pressure switch.
