K20A2 engine

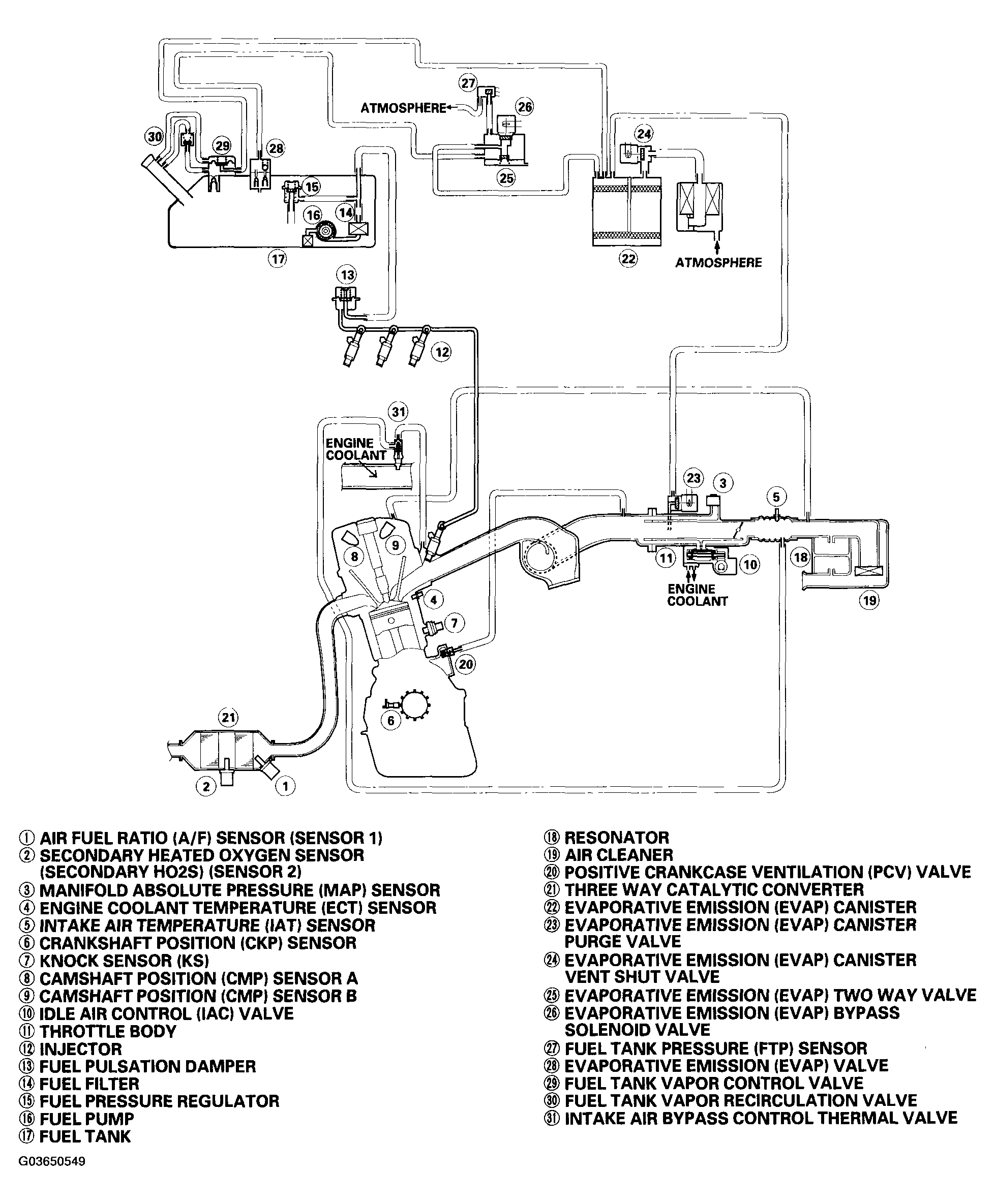

Fig 1: Identifying Vacuum Distribution (K20A2 Engine)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
