PCM Inputs and Outputs

WARNING: This page is about a different variant/trim than selected.

The PCM terminal voltage and measuring conditions are shown for the connector terminals that are related to the A/T control system. The other terminal voltage and measuring conditions are described in Fuel and Emission.

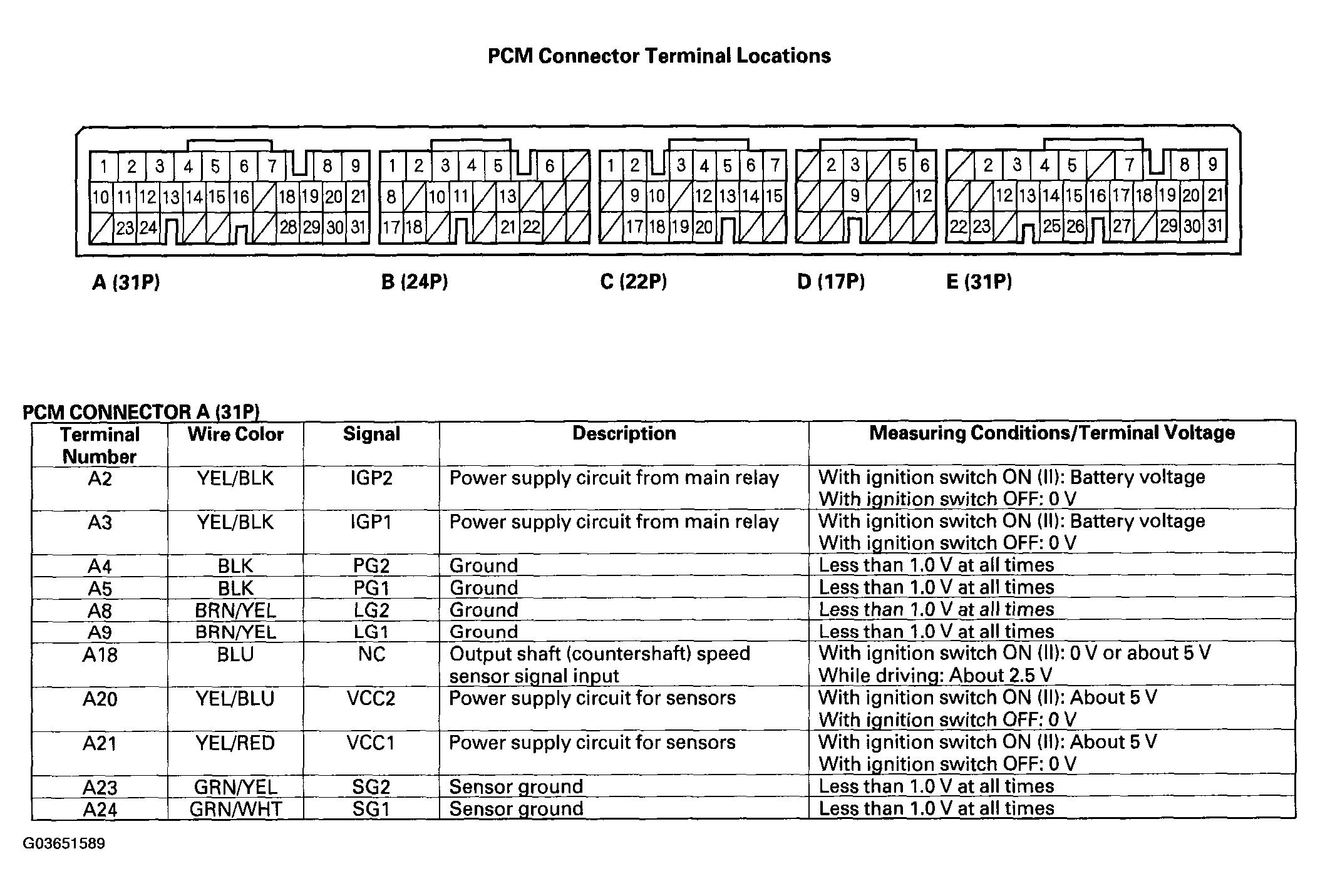

Fig 1: Identifying PCM Connector A (31P) Terminal Locations (2005-2006 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

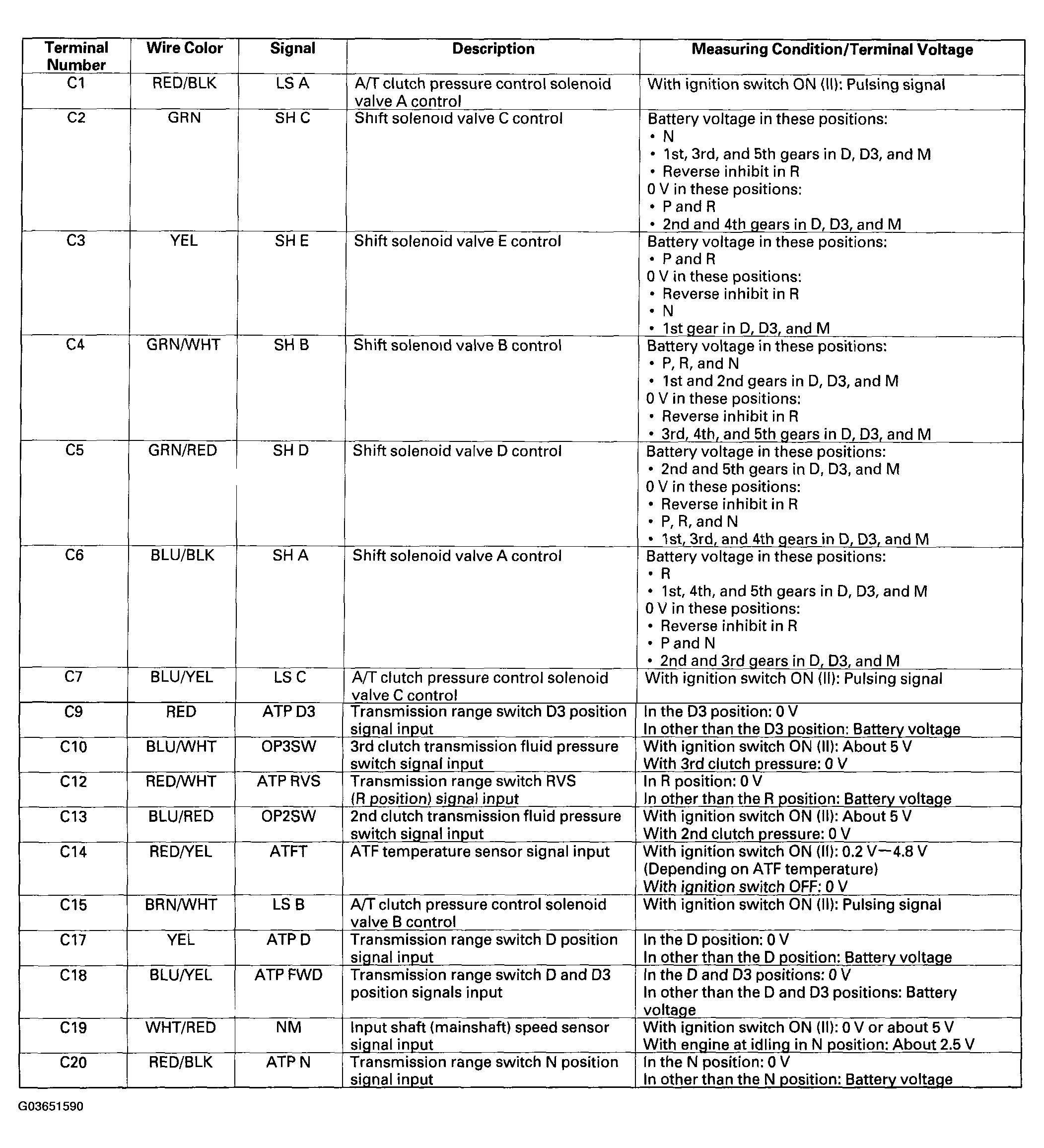

Fig 2: PCM Connector C (22P) Terminal Specification

Courtesy of AMERICAN HONDA MOTOR CO., INC.

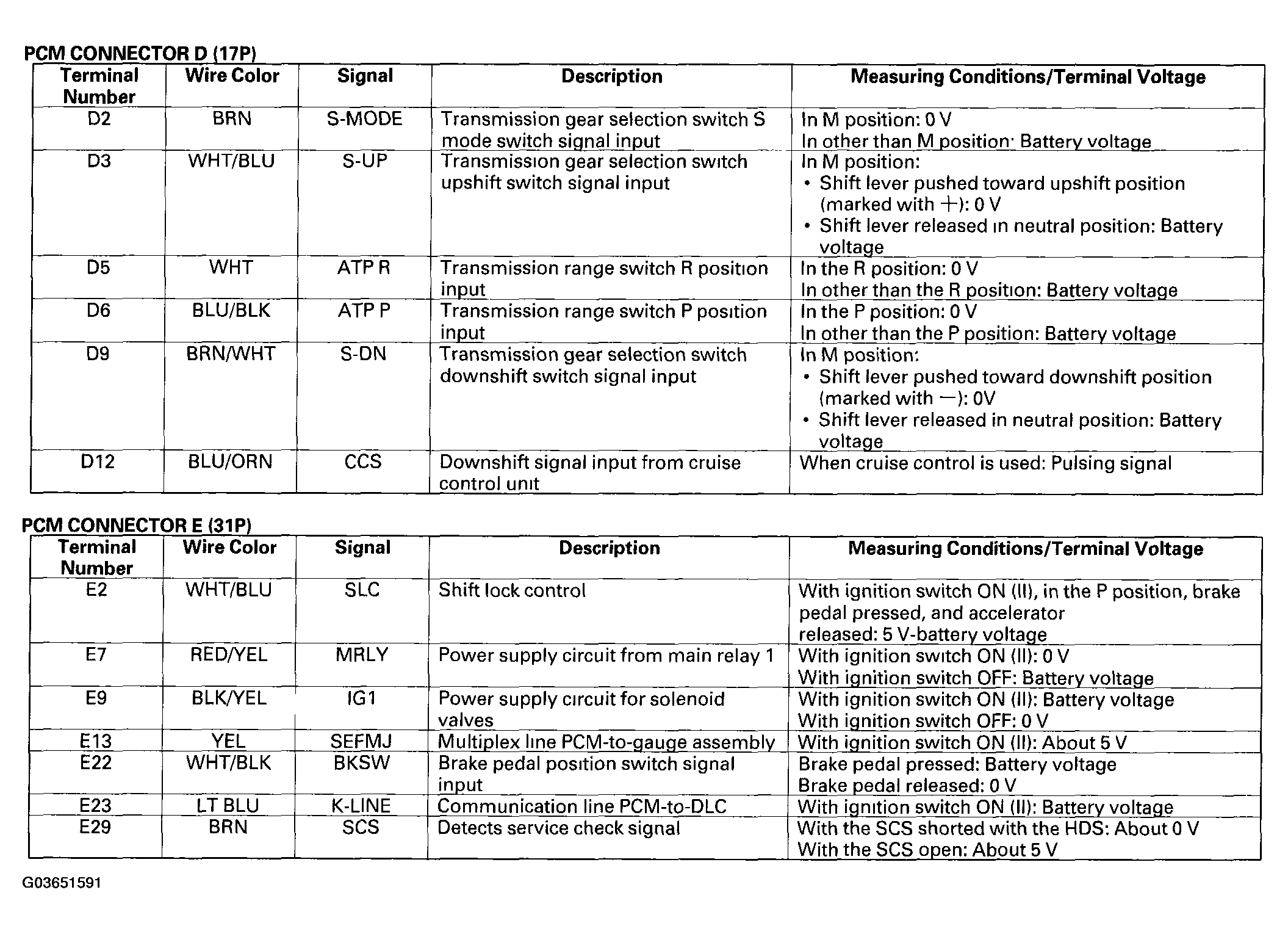

Fig 3: PCM Connector D And E Terminal Specification

Courtesy of AMERICAN HONDA MOTOR CO., INC.
