Climate Control Unit Bulb Replacement
- Discharge the static electricity (which accumulated on you when you removed the climate control unit) by touching the door striker or other body parts.

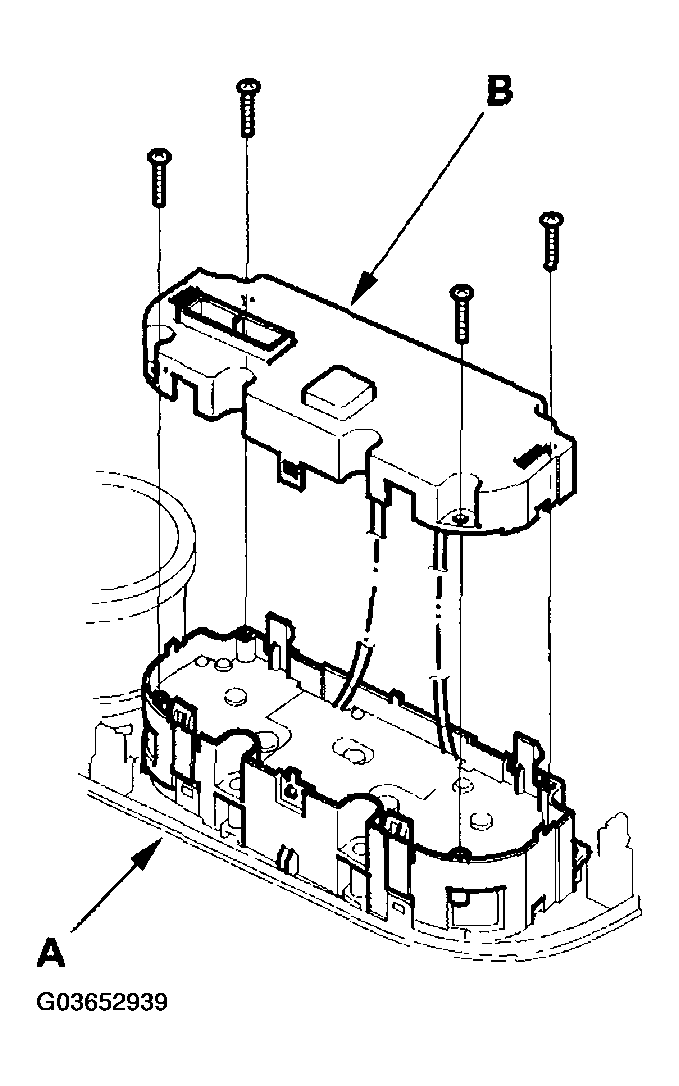

- Remove the self-tapping screws, then carefully separate the climate control unit to the display (A) and the control unit (B). Do not kink or pull on the wires between the display and the control unit. Do not touch the electronic components on the printed circuit board in the control unit.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

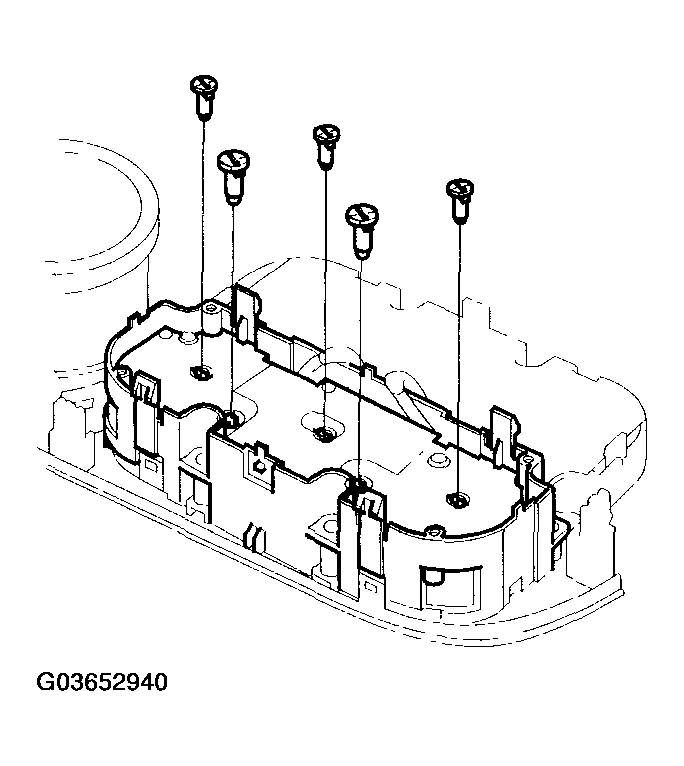

- Remove the bulb(s) with a flat-tip screwdriver.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the bulb in the reverse order of removal.
