Mode Control Motor Replacement

Open the glove box. Remove the glove box stop on each side, then let the glove box hang down (see GLOVE BOX REMOVAL/INSTALLATION ).
Disconnect the 10P connector (A) from the mode control motor (B). Remove the self-tapping screws and the mode control motor from the heater unit.

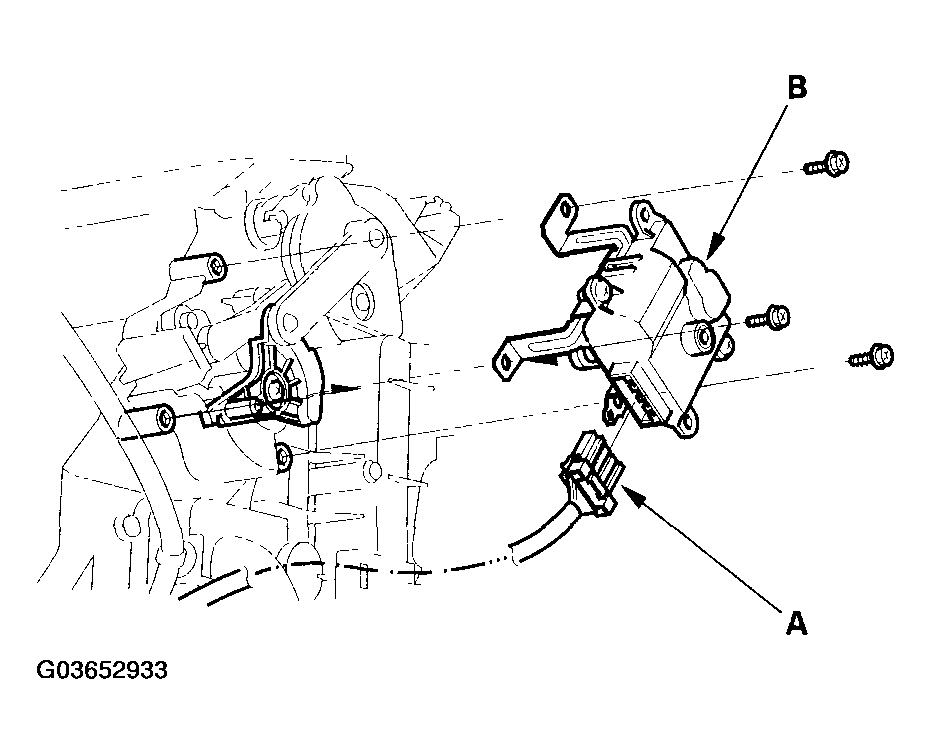

Fig 1: Disconnecting 10P Connector From Mode Control Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the motor in the reverse order of removal. Make sure the pin on the linkage is properly engaged with the motor. After installation, make sure the motor runs smoothly.
