ECM/PCM Electrical Connections

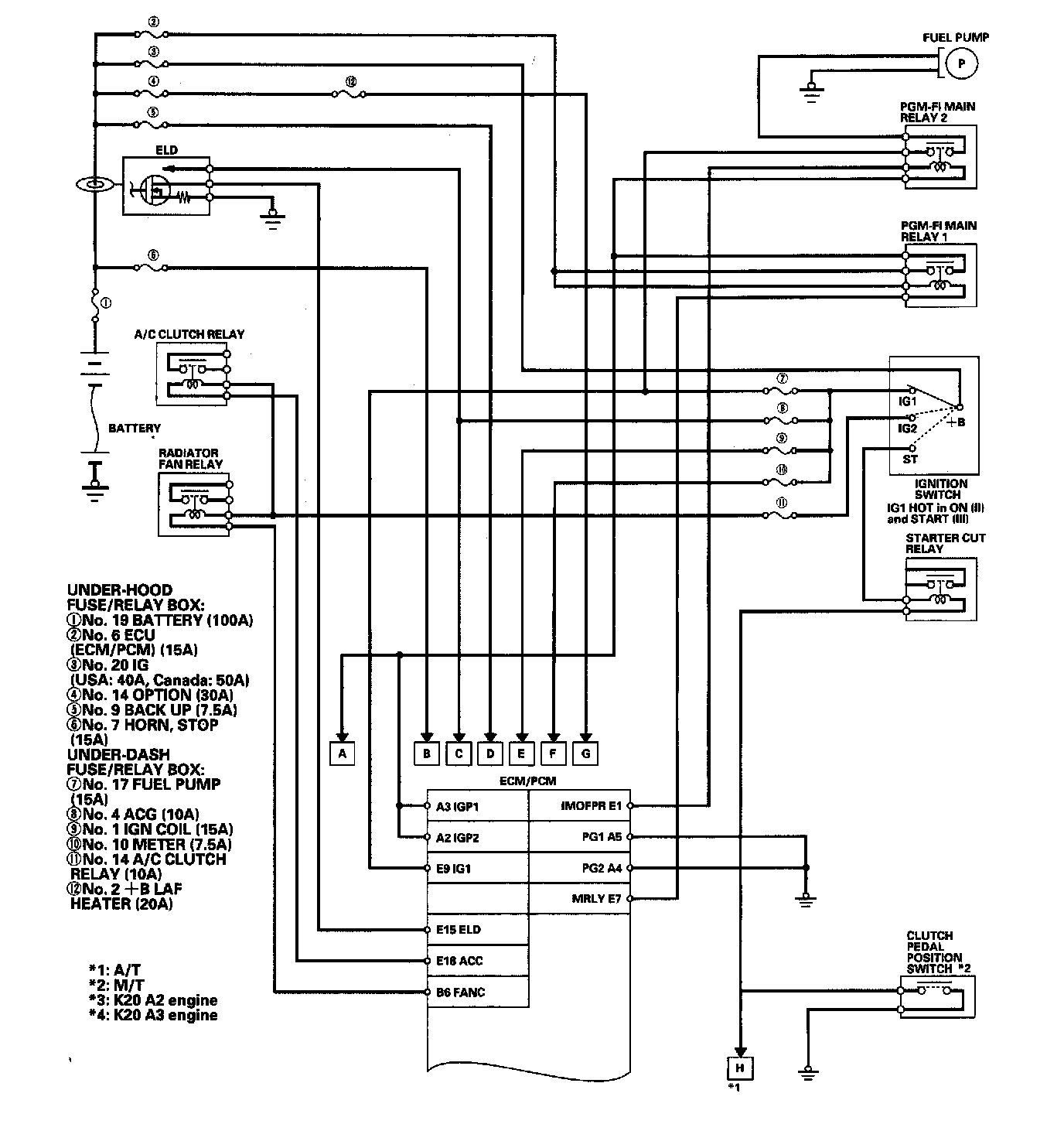

ECM/PCM Electrical Connections Image 11-15:

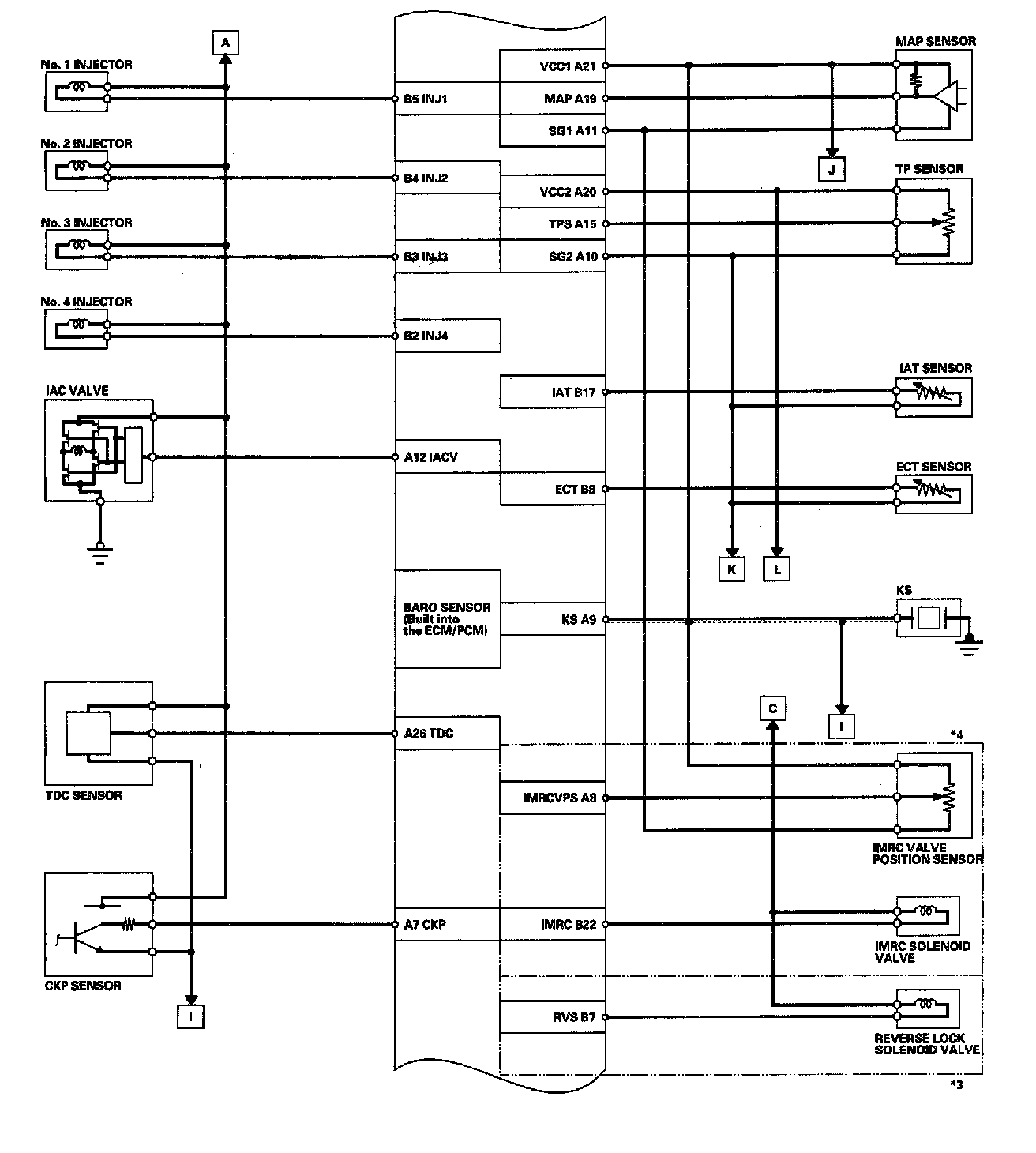

ECM/PCM Electrical Connections Image 11-16:

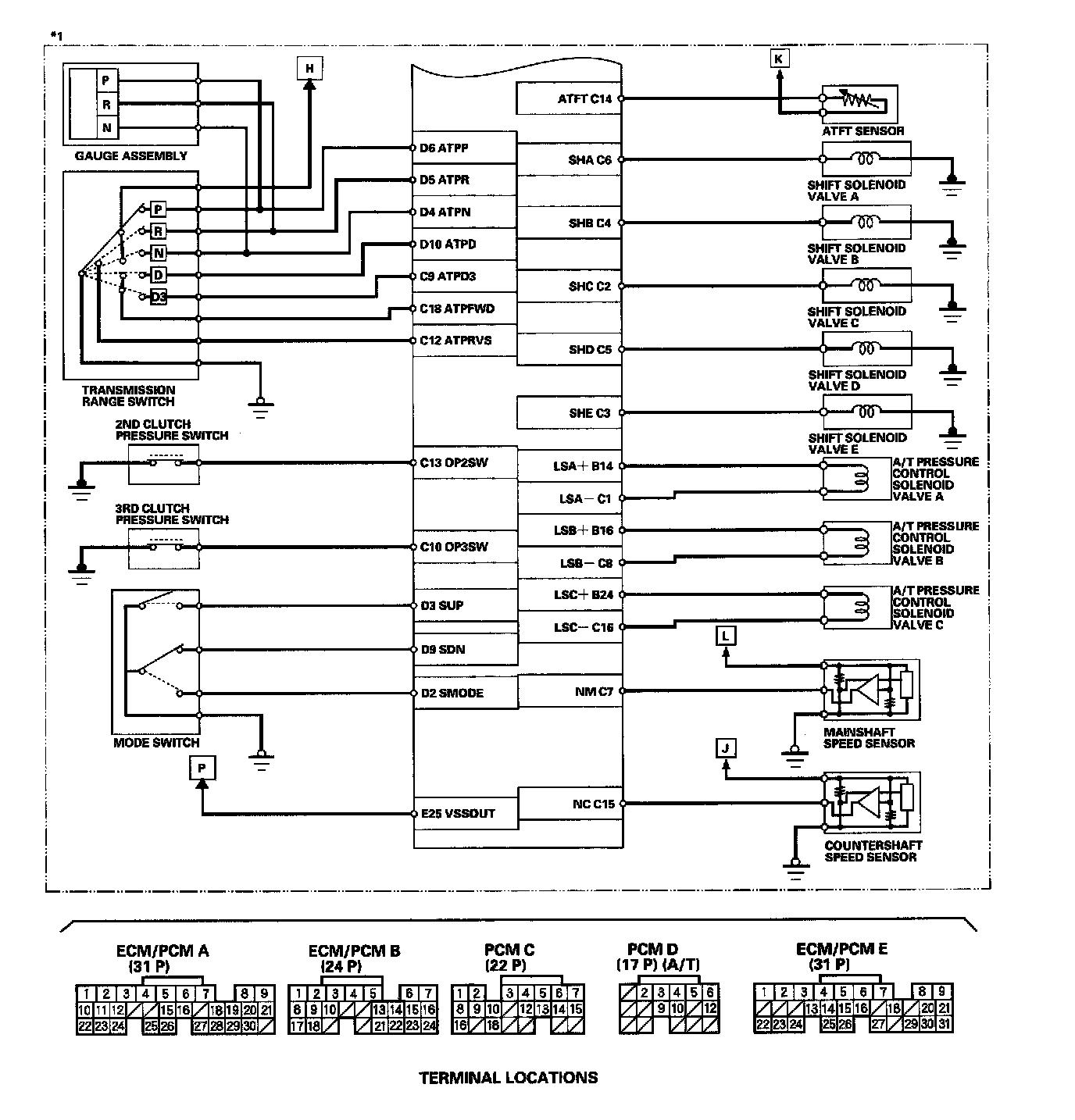

ECM/PCM Electrical Connections Image 11-17:

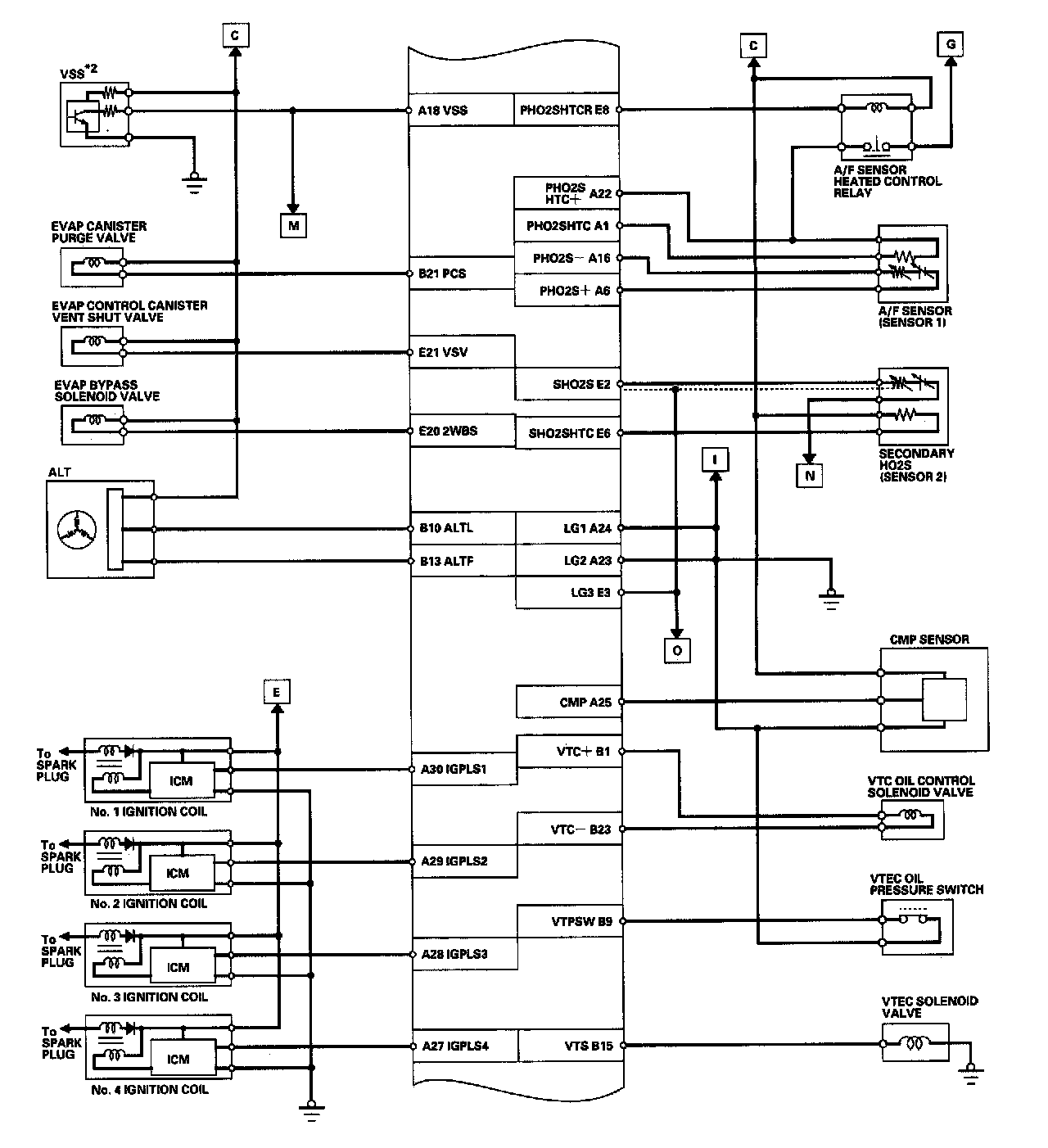

ECM/PCM Electrical Connections Image 11-18:



ECM/PCM Electrical Connections Image 11-19:
