Pre-Alignment Checks

For proper inspection and adjustment of the wheel alignment do these checks:

1. Release the parking brake to avoid an incorrect measurement.
2. Make sure the suspension is not modified.
3. Check the tire size and tire pressure.

   Tire size:

   1. Front/rear:  185/65R15 86H

   Tire pressure:

   1. Front/rear:  210 kPa (2.1 kgf/cm² ,30 psi)
4. Check the runout of the wheels and tires.
5. Check the suspension ball joints. (Hold a wheel with your hands, and move it up and down and right and left to check for wobbling).

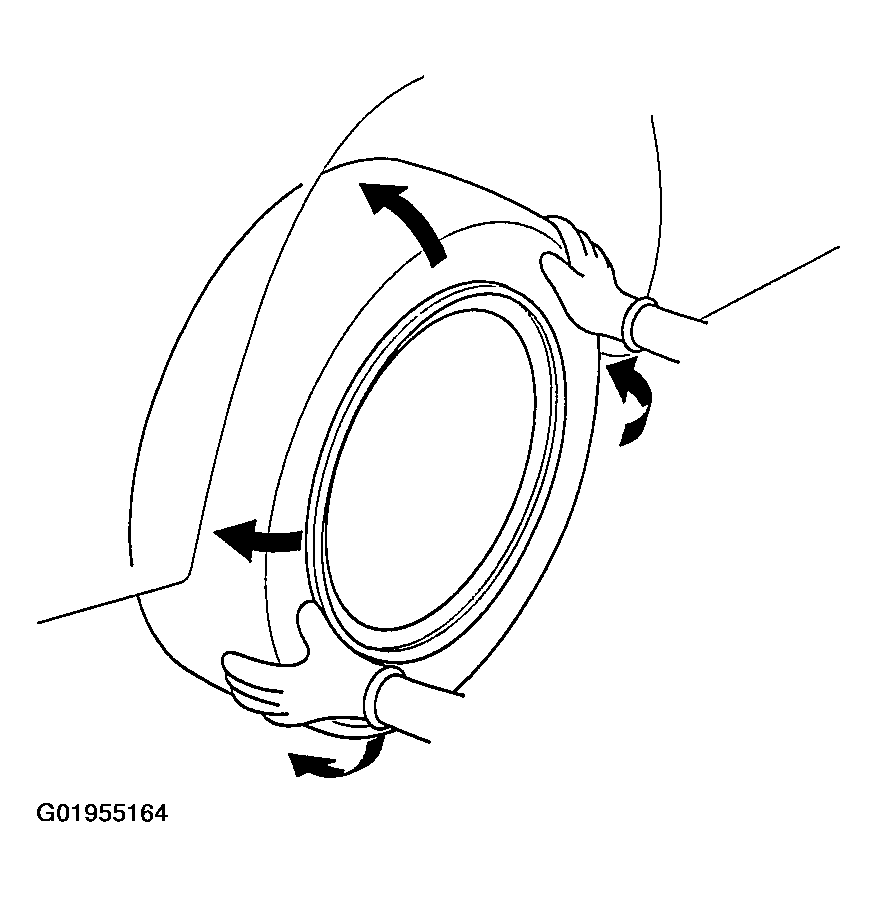

   Fig 1: Checking Suspension Ball Joints


6. Bounce the vehicle up and down several times to stabilize the suspension.
