Component Location Index

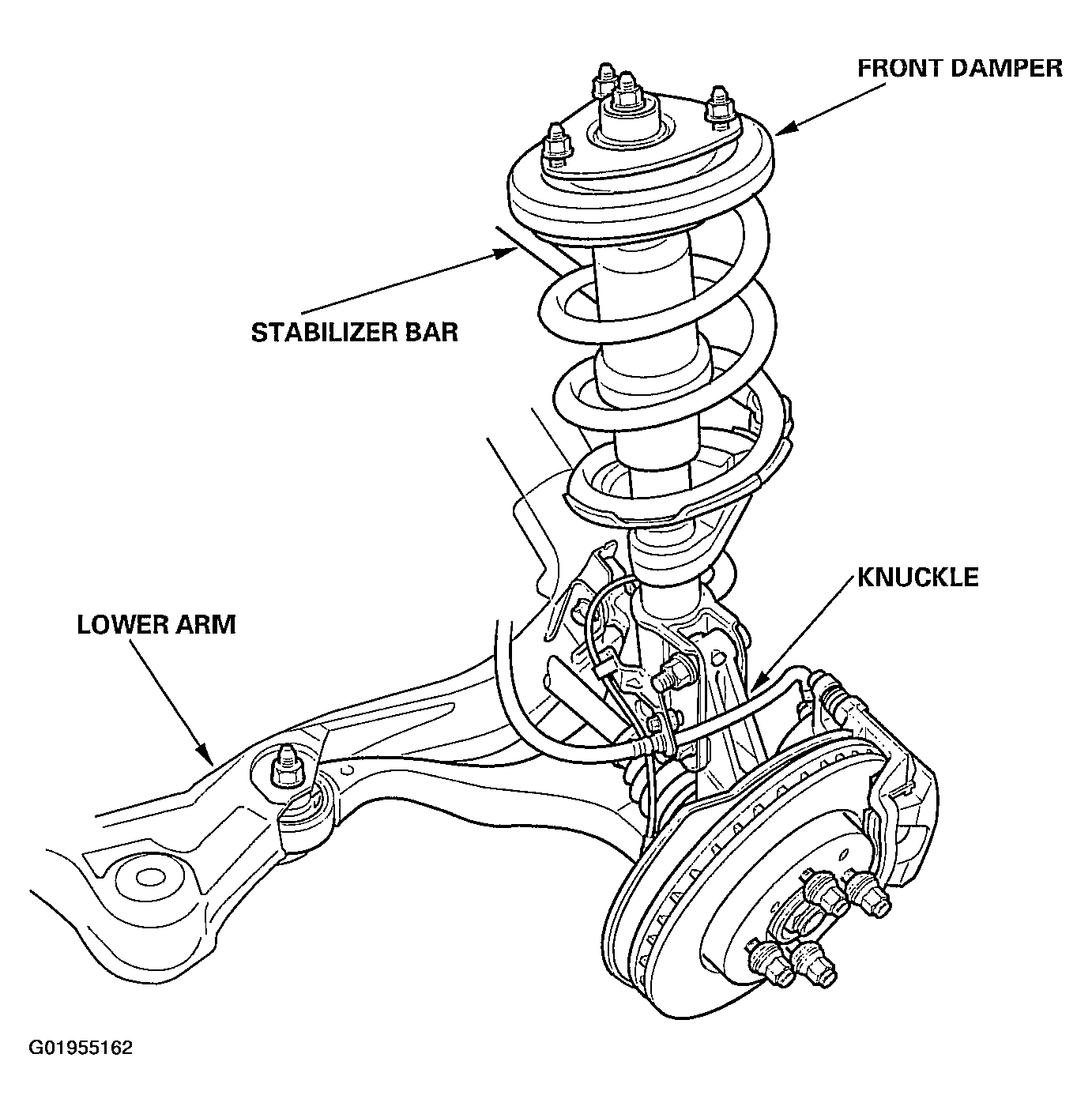

Fig 1: Locating Front Suspension Components

G01955162

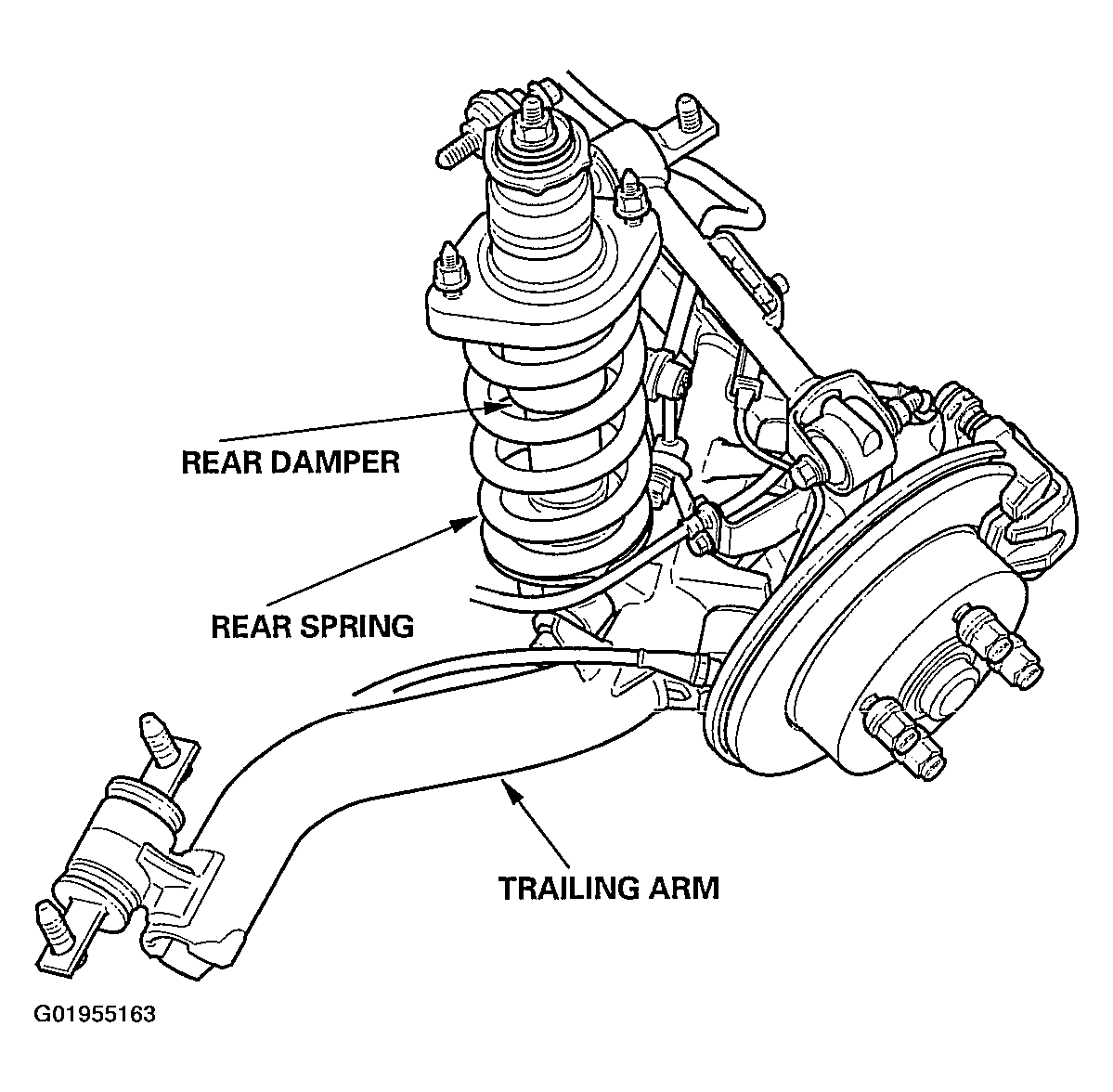

Fig 2: Locating Rear Suspension Components

G01955163
