Relays And Control Unit Locations: Seats

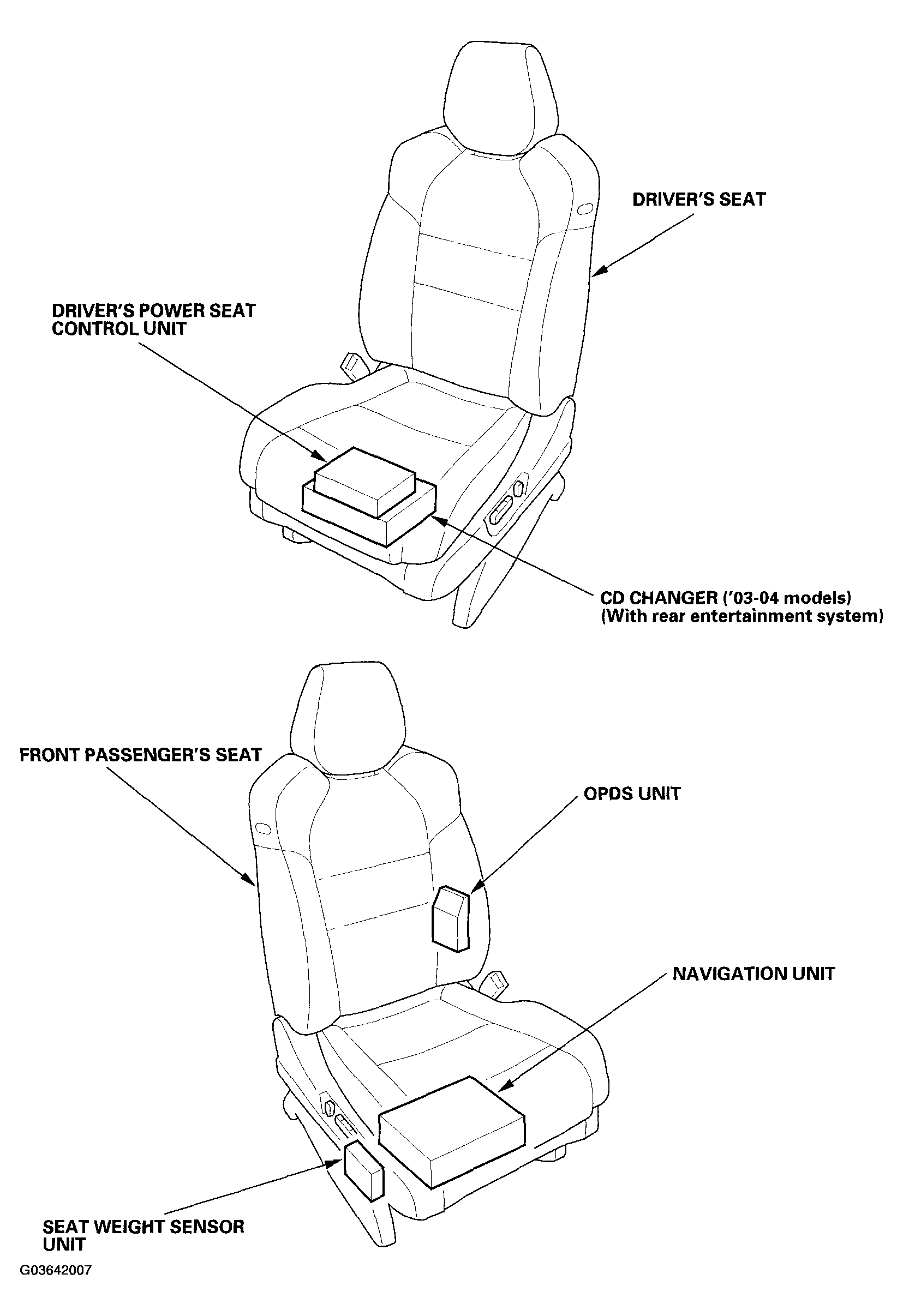

Fig 1: Identifying Seat Components

G03642007

Courtesy of AMERICAN HONDA MOTOR CO., INC.
