IAB Control System
For troubleshooting flow chart, see
Fig 1
and
Fig 2
.

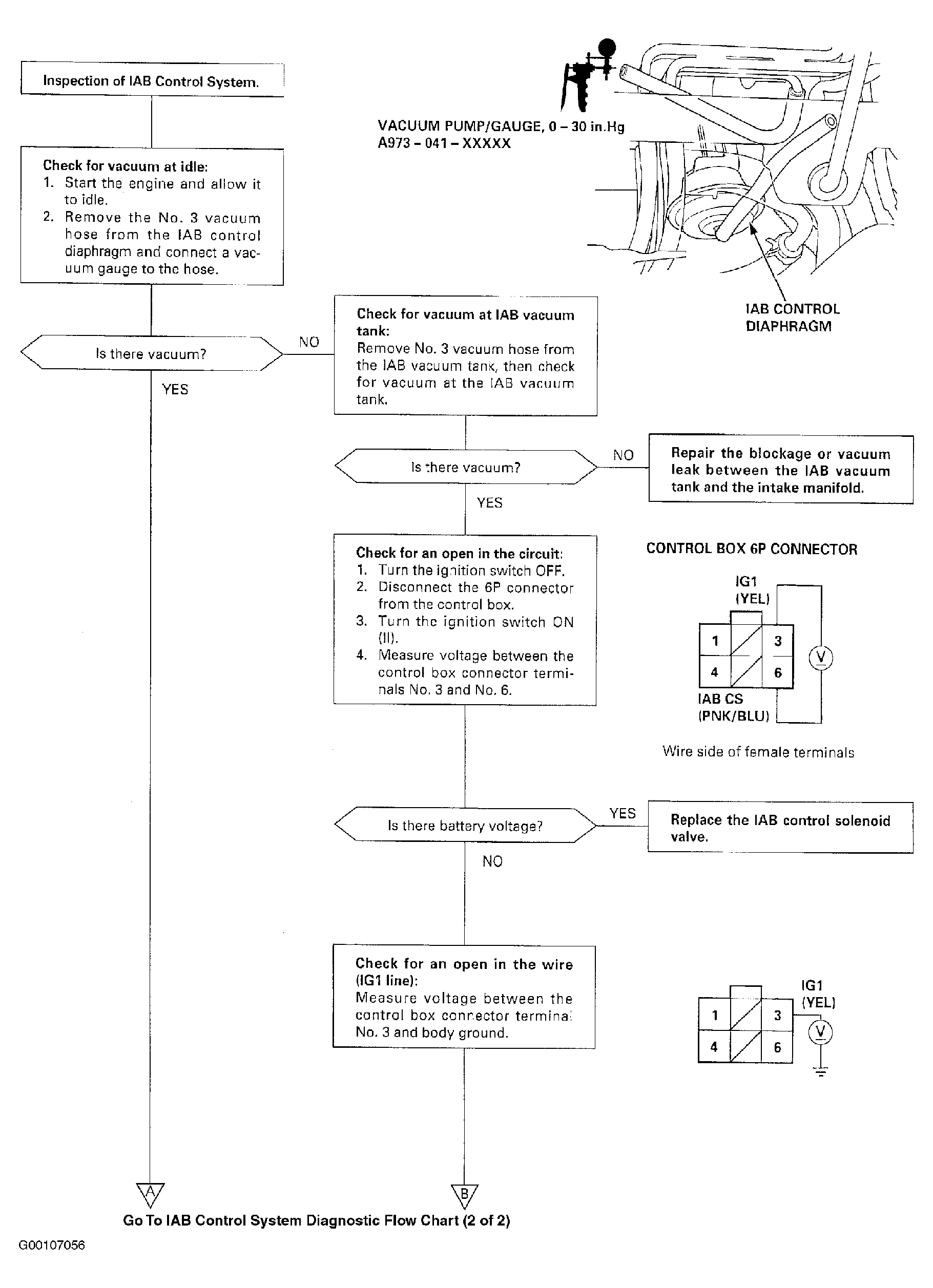

Fig 1: IAB Control System Diagnostic Flow Chart (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

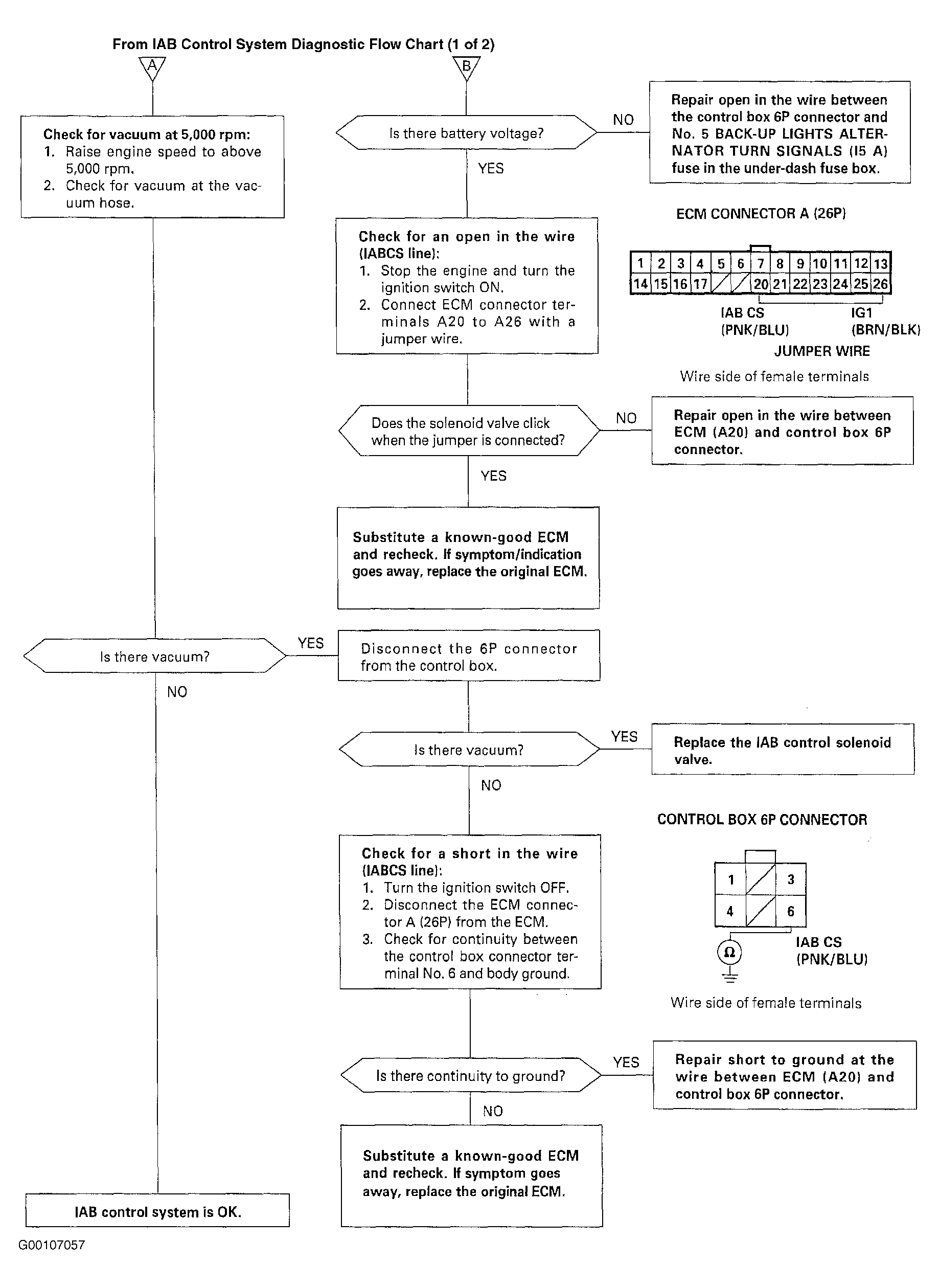

Fig 2: IAB Control System Diagnostic Flow Chart (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
