Security Indicator Test

  1. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connector from the security indicator.

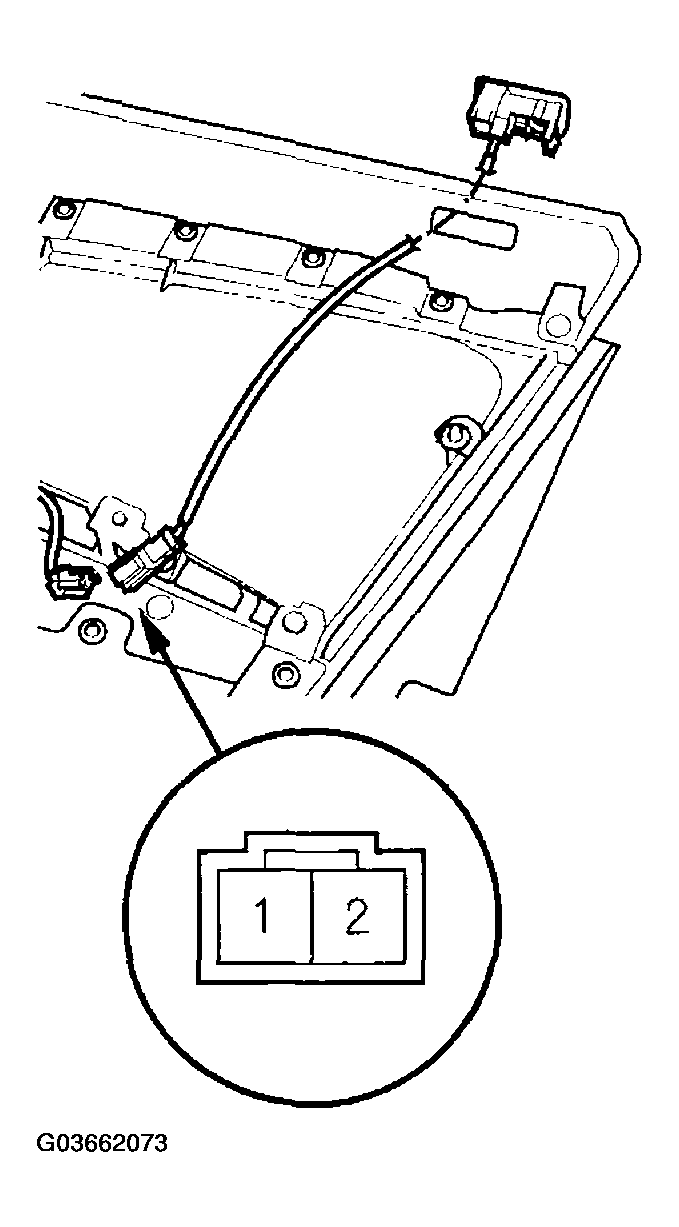

    Fig 1: Disconnecting 2P Connector From Security Indicator
    G03662073Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. The LED should come on when power is connected to terminal No. 2, and ground is connected to terminal No. 1.
  4. If the LED does not work as specified, replace the security indicator.
