Exploded View: Notes

Replace the pump as an assembly if the parts indicated with asterisk (*) are worn or damaged.

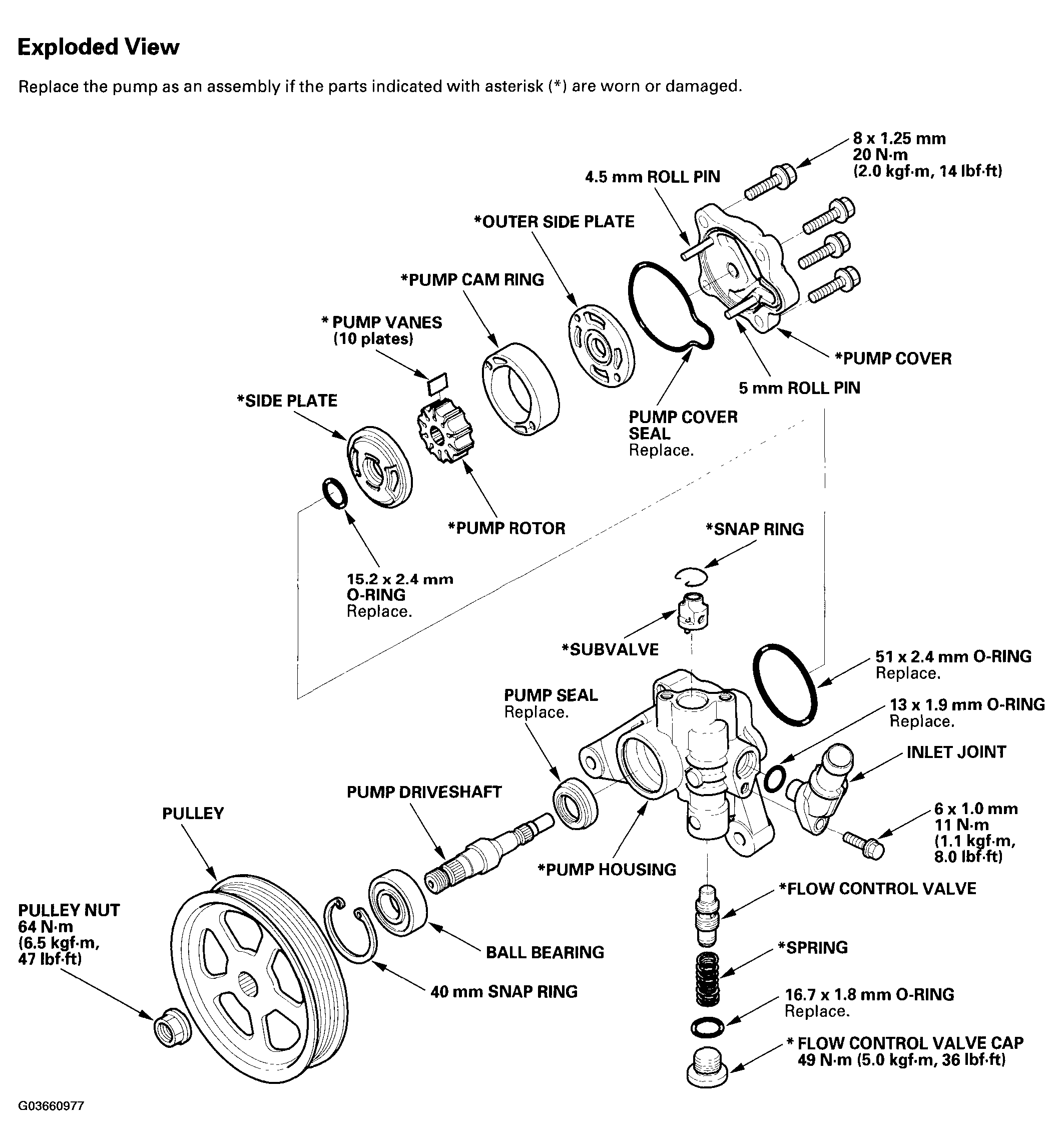

Fig 1: Exploded View Of Power Steering

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Pulley holder 07ZAB-S5A0100
