Circuit Diagram

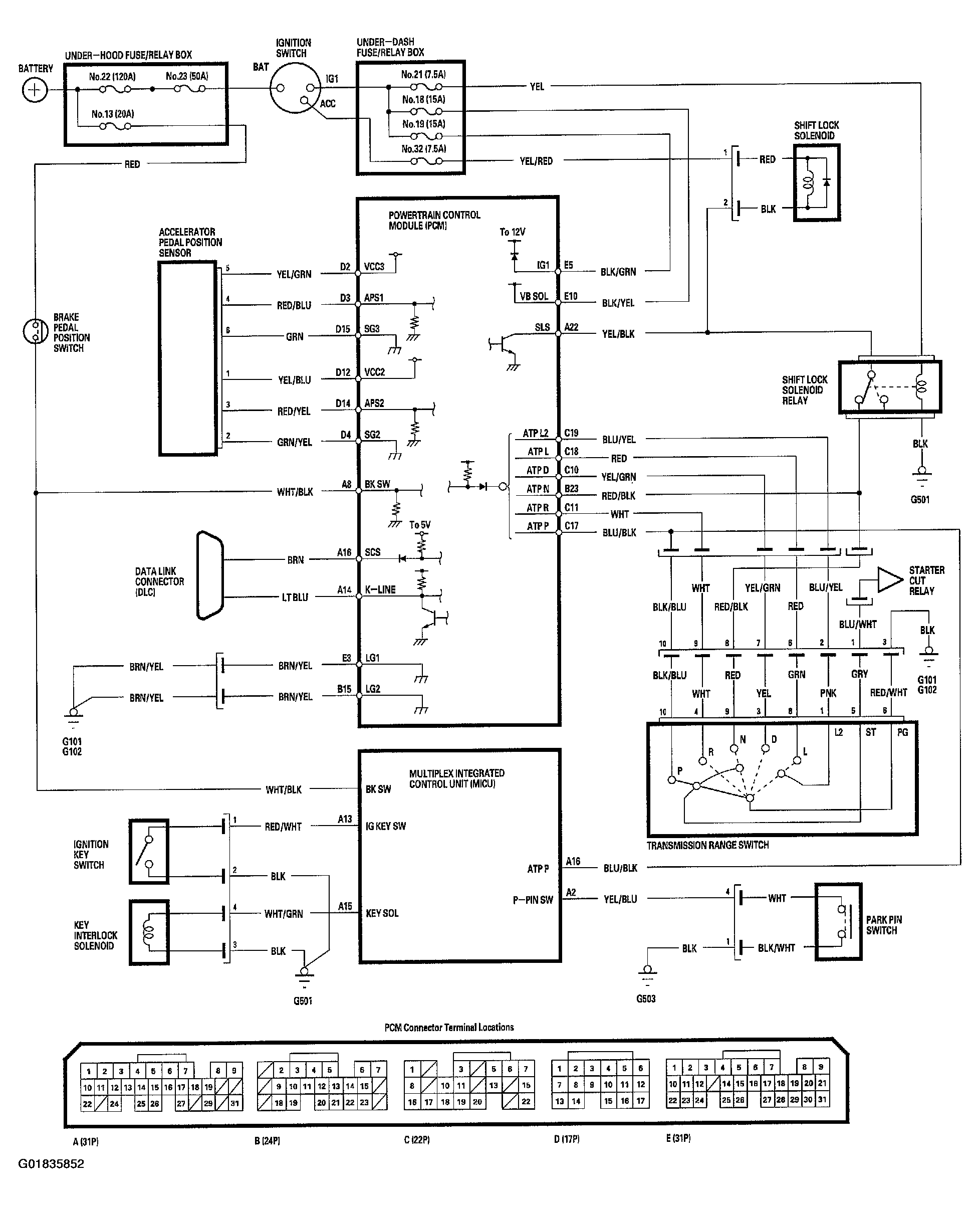

Fig 1: A/T Interlock System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
