Antenna Module Replacement

  1. Remove the left C-pillar trim (see TRIM REMOVAL/INSTALLATION - REAR SHELF AREA ).
  2. Disconnect the 1P connector (A), 1P connector (B), and antenna lead (C) from the antenna module (D) and the three window connectors (E).

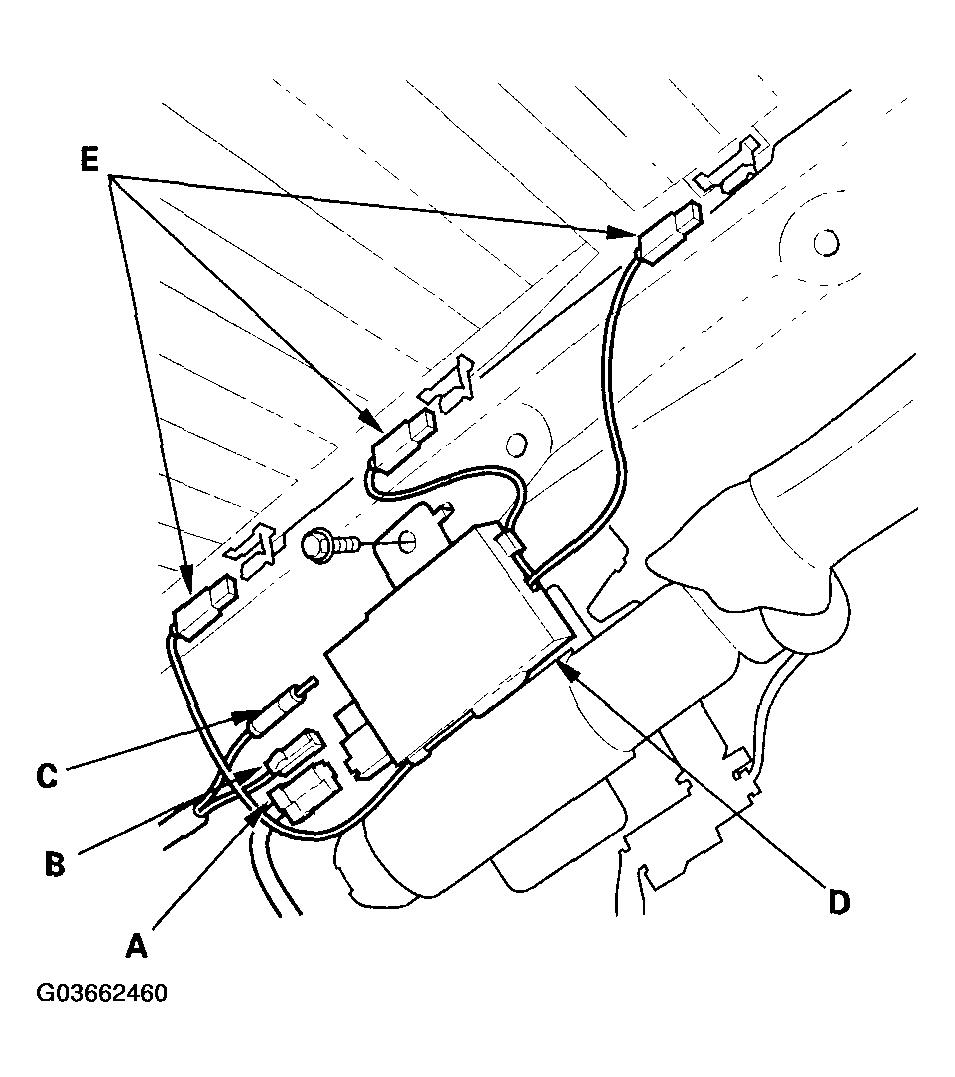

    Fig 1: Disconnecting 1P Connector, 1P Connector & Antenna Lead From Antenna Module
    G03662460Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect all connectors, then remove the bolt and antenna module.
  4. Install in the reverse order of removal.
