With Navigation

  1. Remove the upper panel (see DRIVER'S DASHBOARD UNDER COVER REMOVAL/INSTALLATION ).
  2. Disconnect the 10P connector (A) from the audio-HVAC subdisplay unit (B).

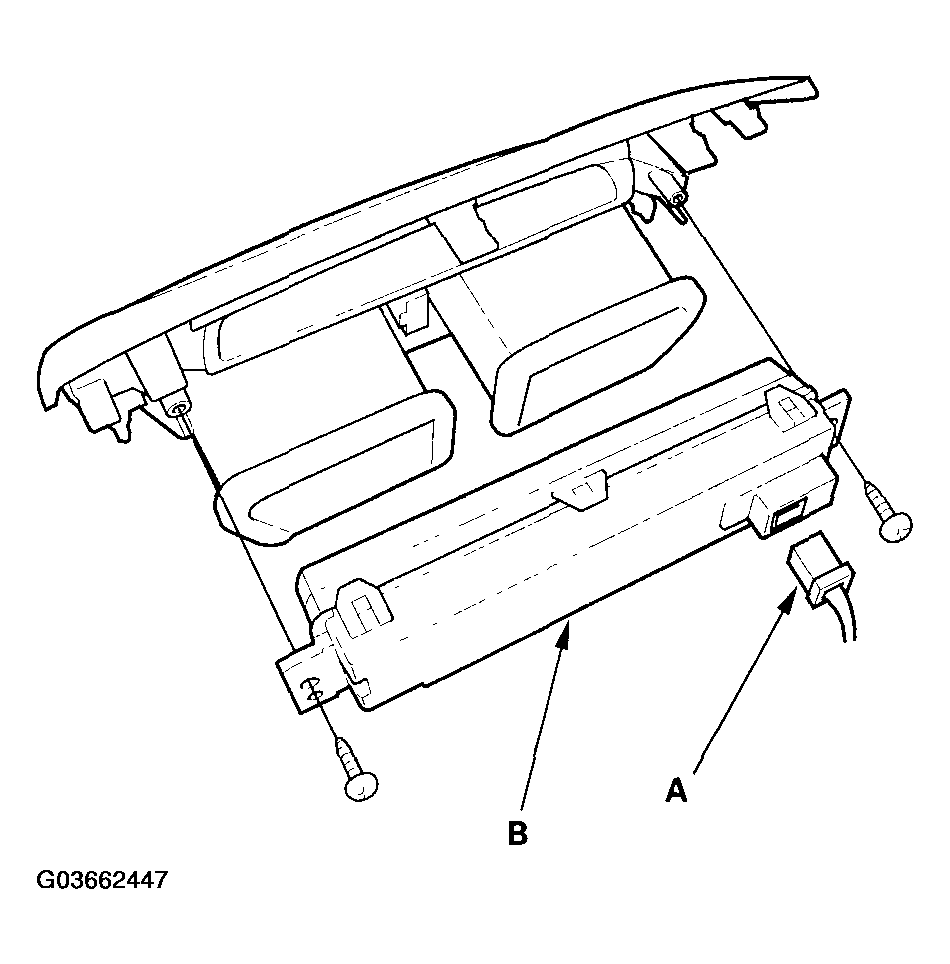

    Fig 1: Disconnecting 10P Connector From Audio-HVAC Subdisplay Unit
    G03662447Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two screw and audio-HVAC subdisplay unit.
  4. Install in the reverse order of removal.
