Motor Test

Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Disconnect the 2P connector (A) from the lumbar support motor.

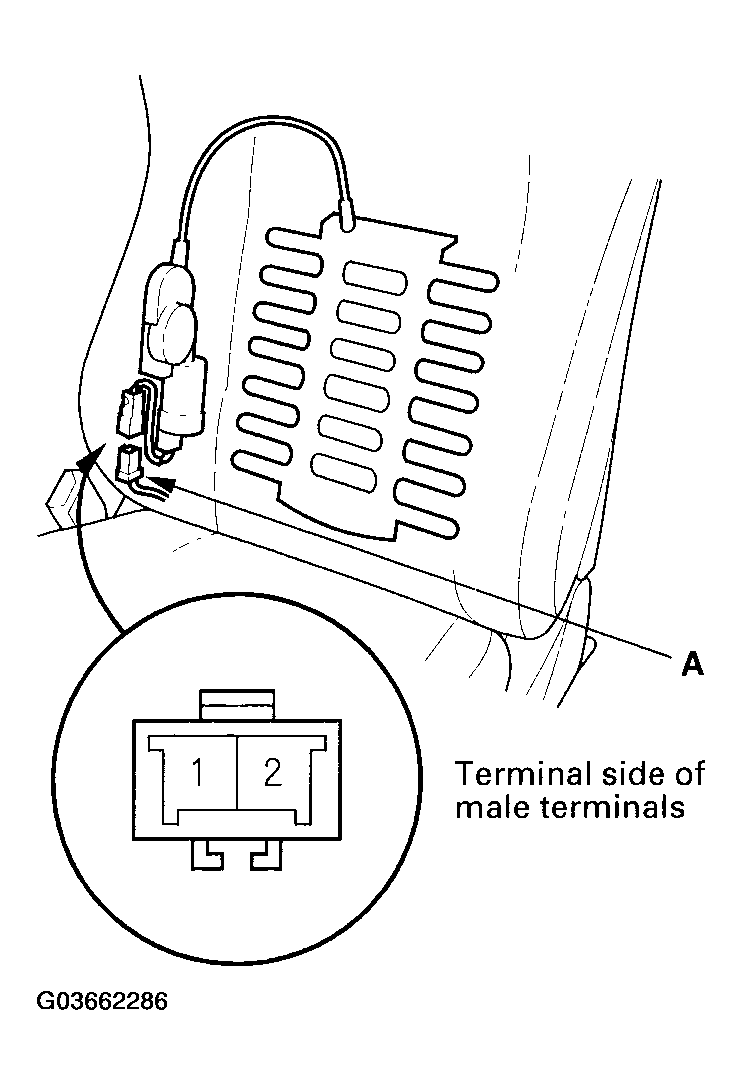

Fig 1: Disconnecting 2P Connector (A) From Lumbar Support Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test each motor by applying battery voltage and body ground to the terminals.

Fig 2: Applying Battery Voltage Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace it (see FRONT SEAT RECLINE MOTOR REPLACEMENT ).
