Switch Test/Replacement

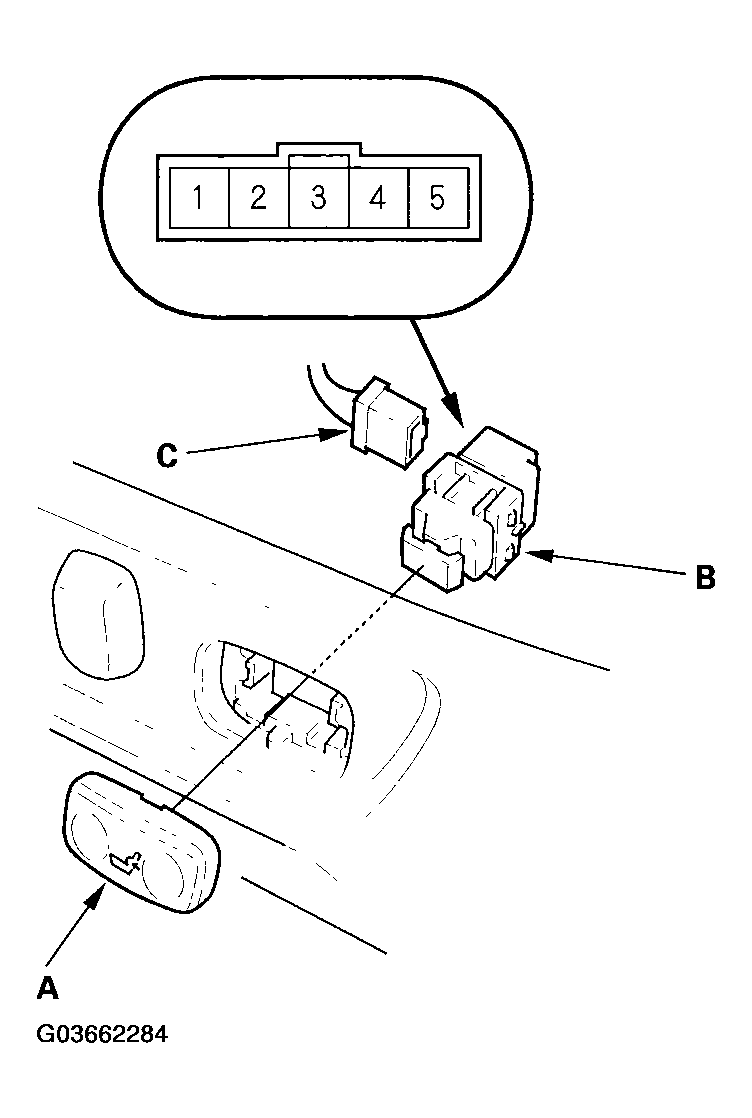

Separate the lumbar support switch cover (A) from the switch (B).

Fig 1: Separating Lumbar Support Switch Cover (A) From Switch (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 5P connector (C) from the switch.
Check for continuity between the terminals in each switch position according to the table.

Fig 2: Terminal Switch Position Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
