Throttle Position Learning Check

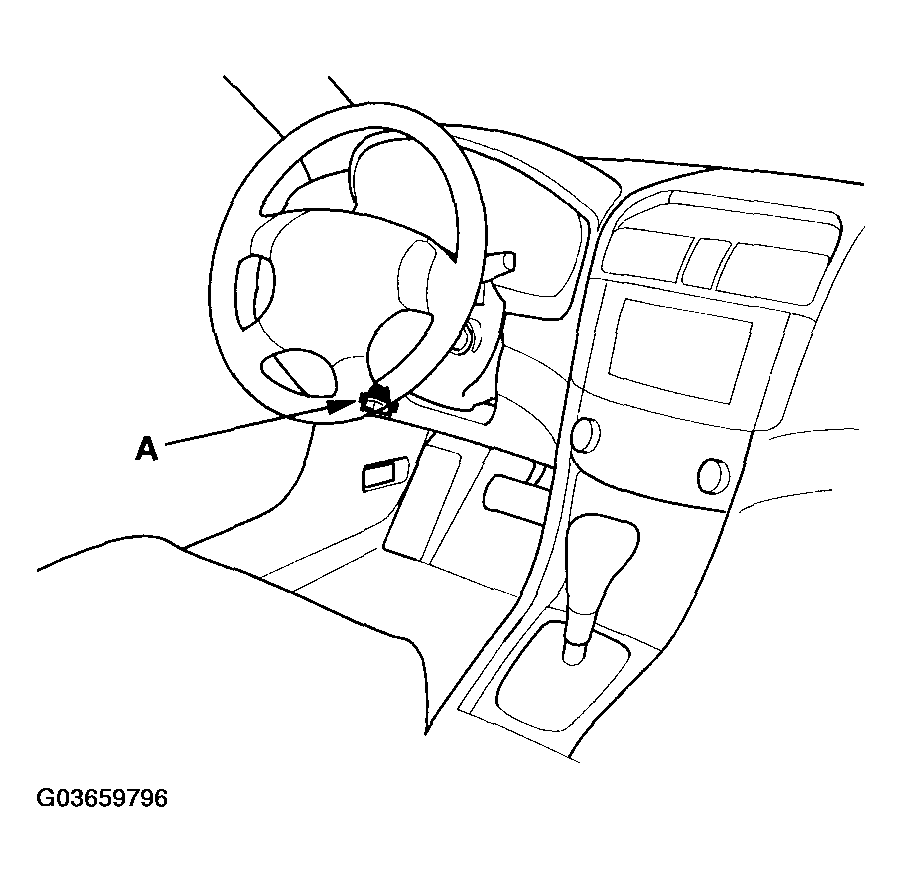

  1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.
    Fig 1: Connecting HDS To DLC
    G03659796Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Select the INSPECTION MENU with the HDS.
  3. Do the TP POSITION CHECK in the ETCS TEST. If it indicates to clean the throttle body (see THROTTLE BODY CLEANING ).
