Climate Control Switch Assembly Removal and Installation

Remove the audio-HVAC display module assembly (see DISPLAY AND CONTROL UNIT INPUT TEST ).
Remove the self-tapping screws and the audio unit (A) and bracket (B) from the display panel control unit (C).

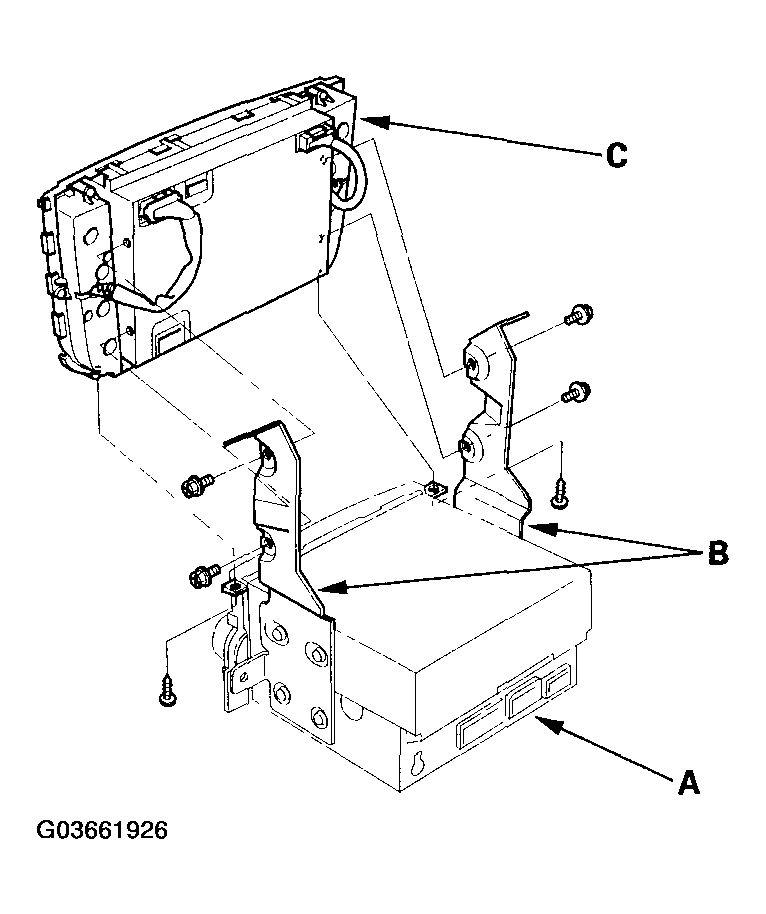

Fig 1: Removing Self-Tapping Screws, Audio Unit & Bracket From Display Panel Control Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect 10P connector (A) and 16P connector (B) from the display panel control unit (C). Remove the self-tapping screws and the climate control switch assembly (D).

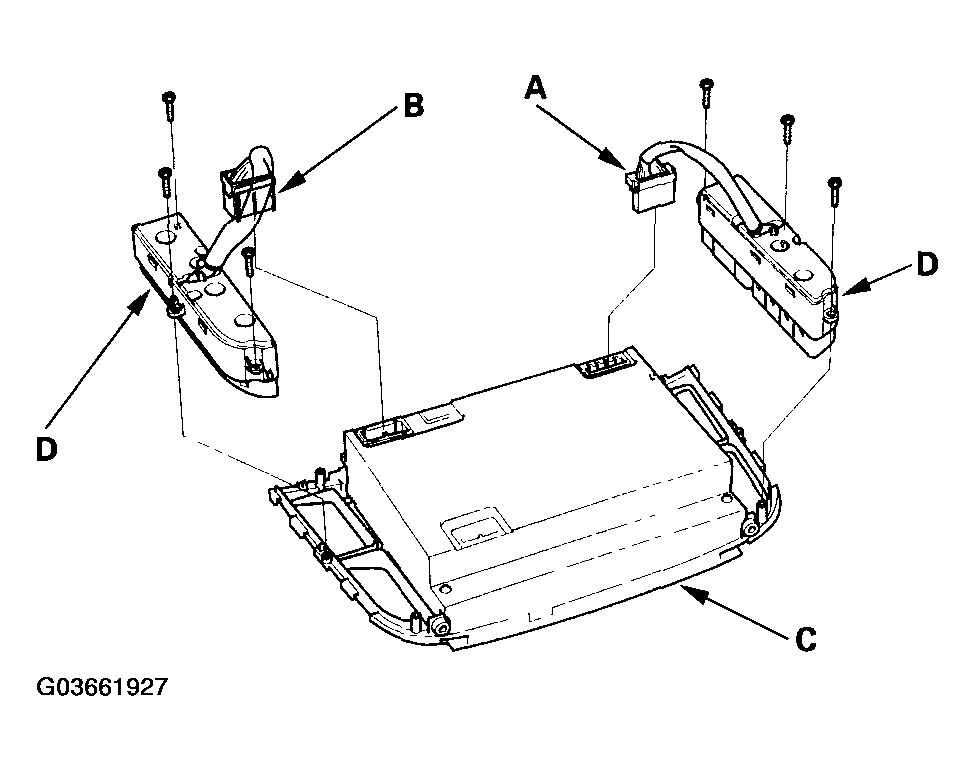

Fig 2: Disconnecting Connector & 16P Connector From Display Panel Control Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the control switch assembly in the reverse order of removal. After installation, operate the control switch assembly controls to see if they work properly.
Run the self-diagnostic function to confirm that there are no problems in the system (see GENERAL TROUBLESHOOTING INFORMATION ).
