Body Control Systems

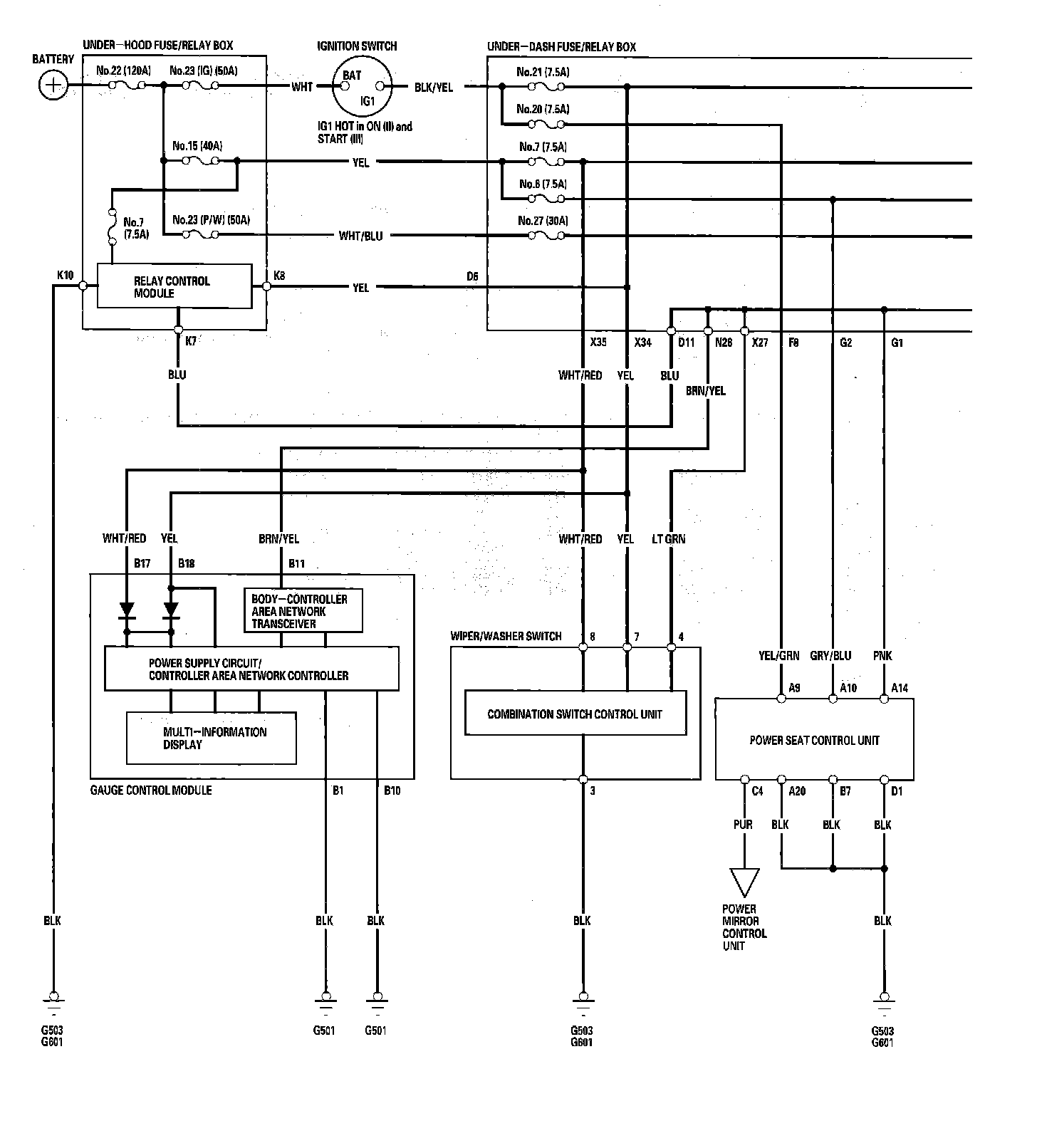

Multiplex Integrated Control System (MICS) - Circuit Diagram Part 1:

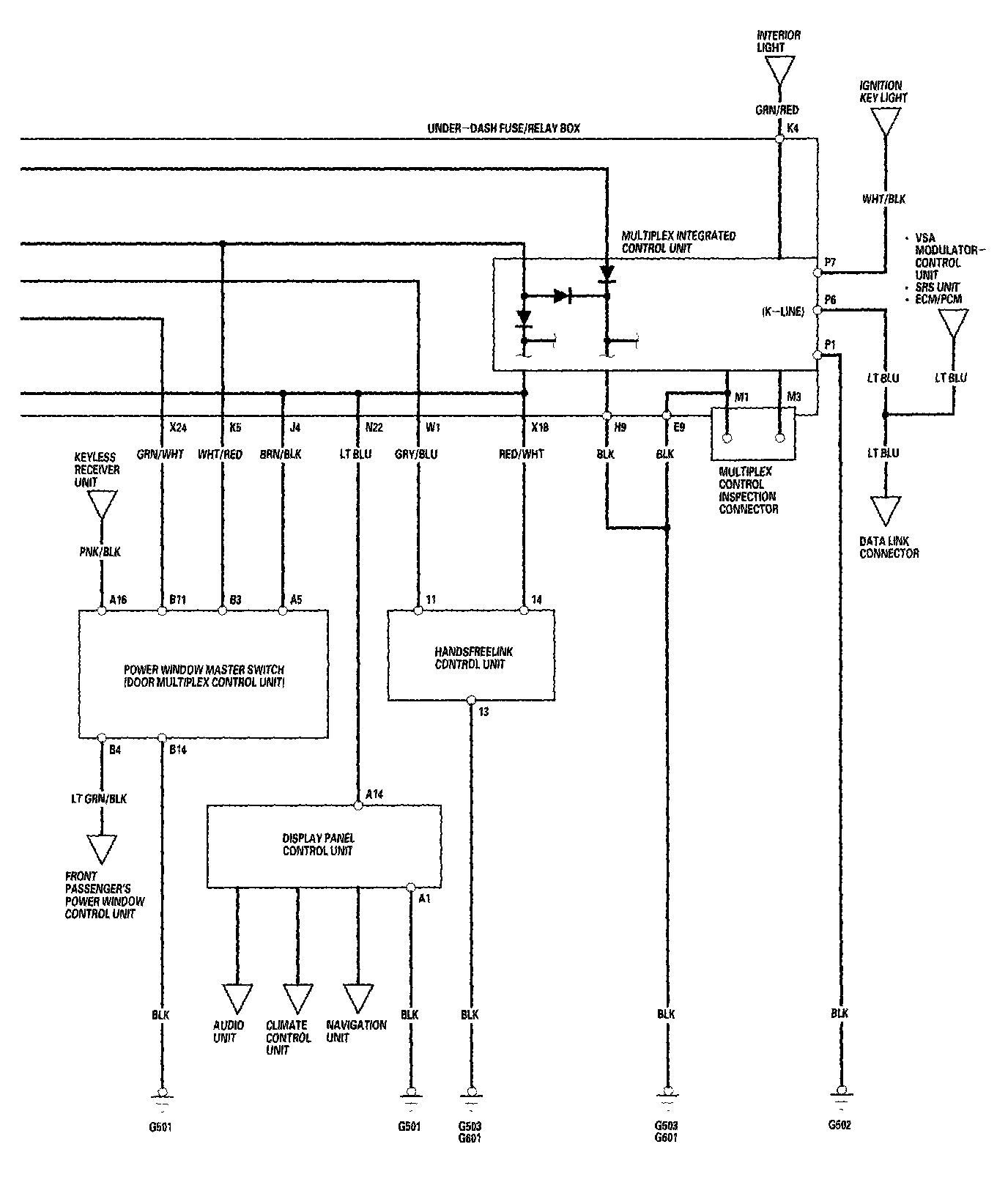

Multiplex Integrated Control System(MICS) - Circuit Diagram Part 2:
