ECM/PCM Circuit Diagrams

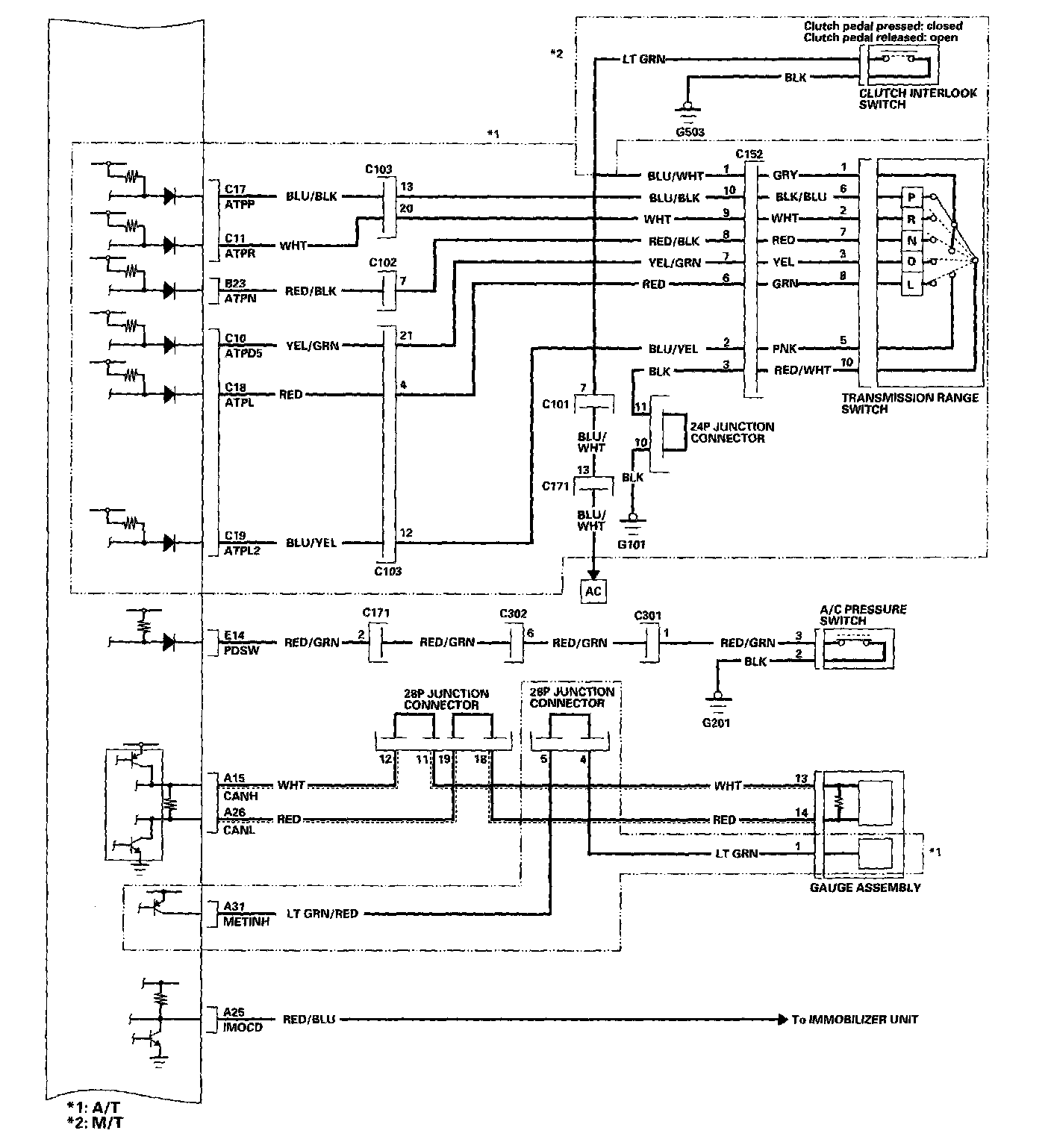

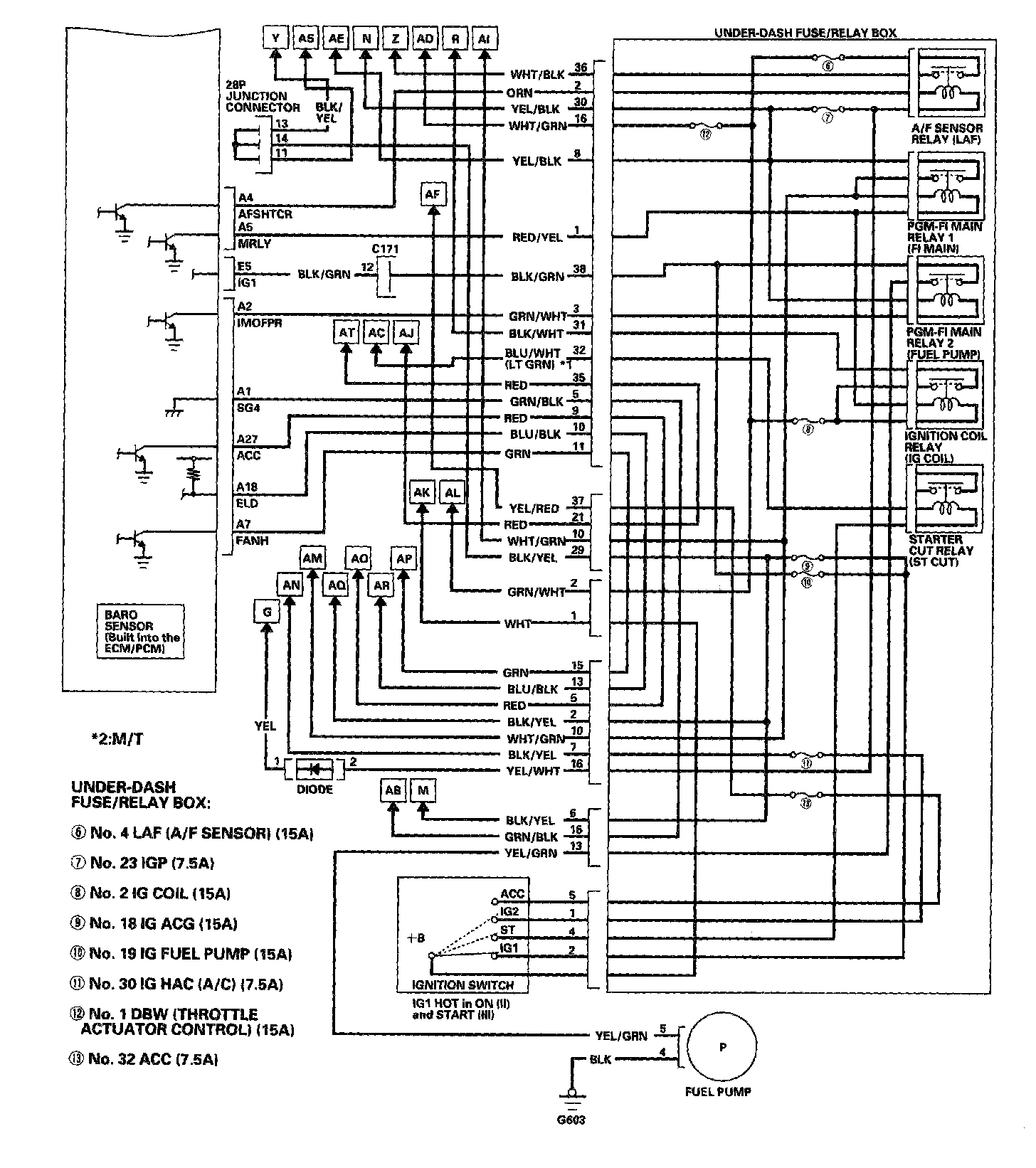

ECM/PCM Circuit Diagram Image 11-40:

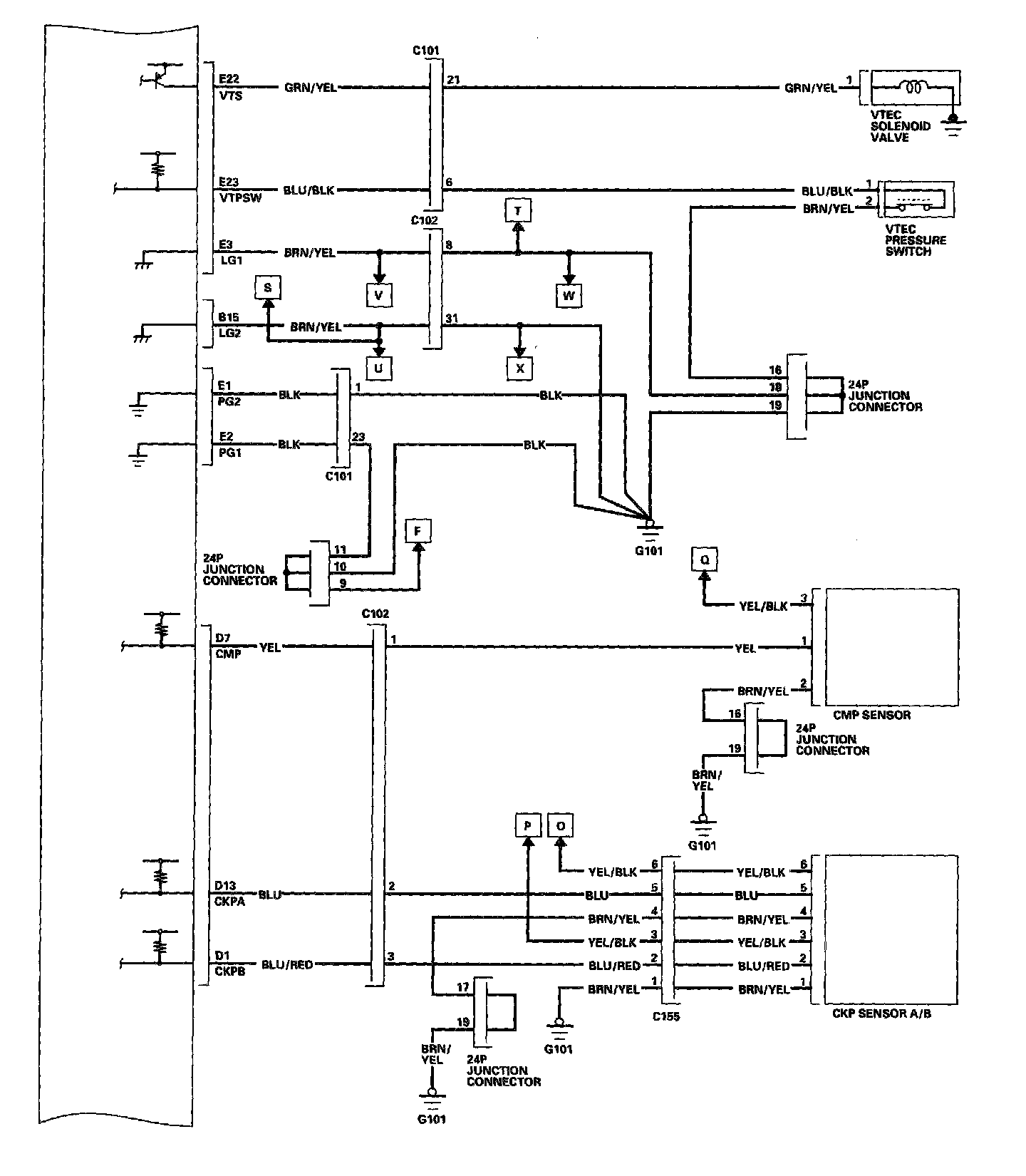

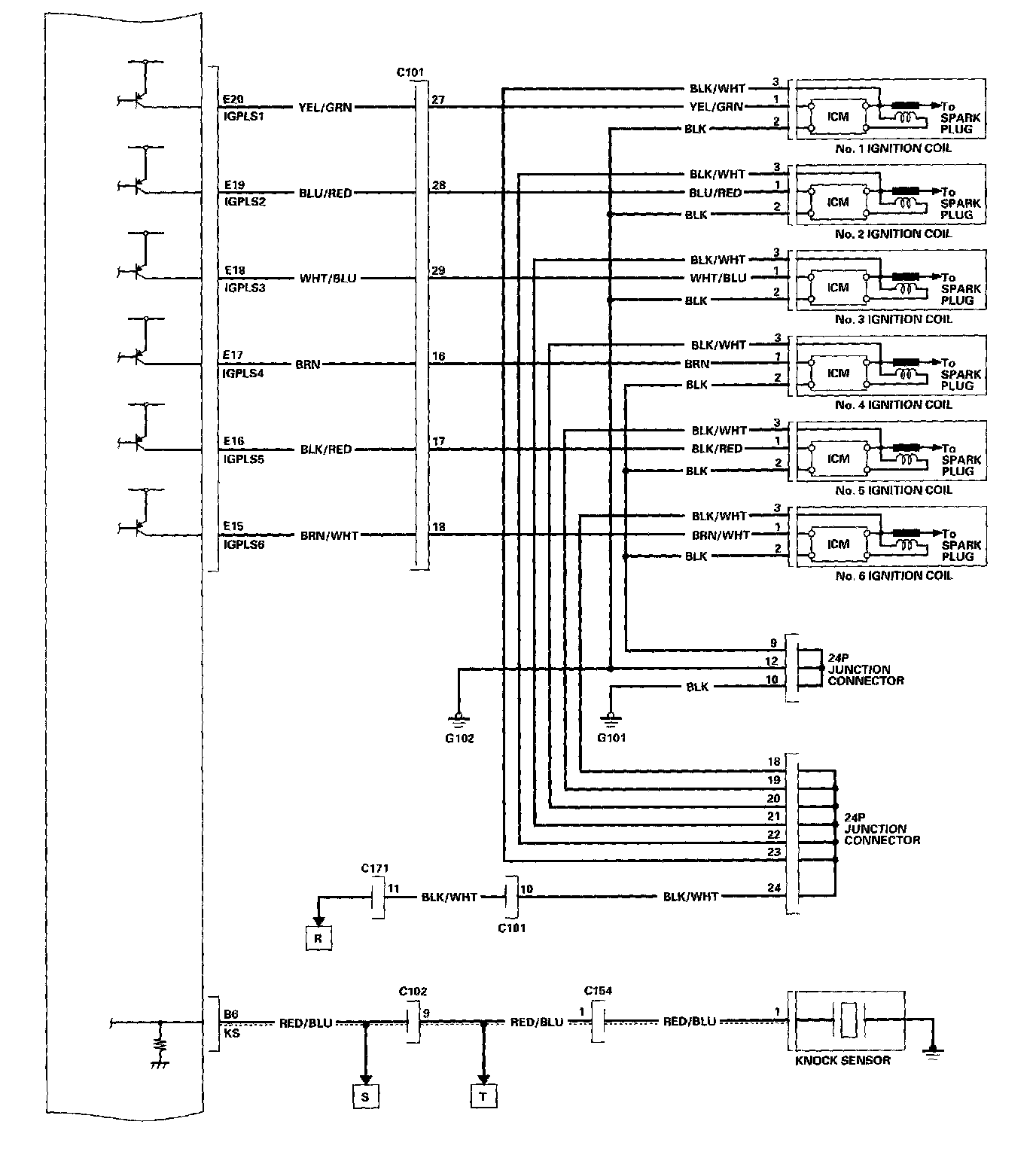

ECM/PCM Circuit Diagram Image 11-41:

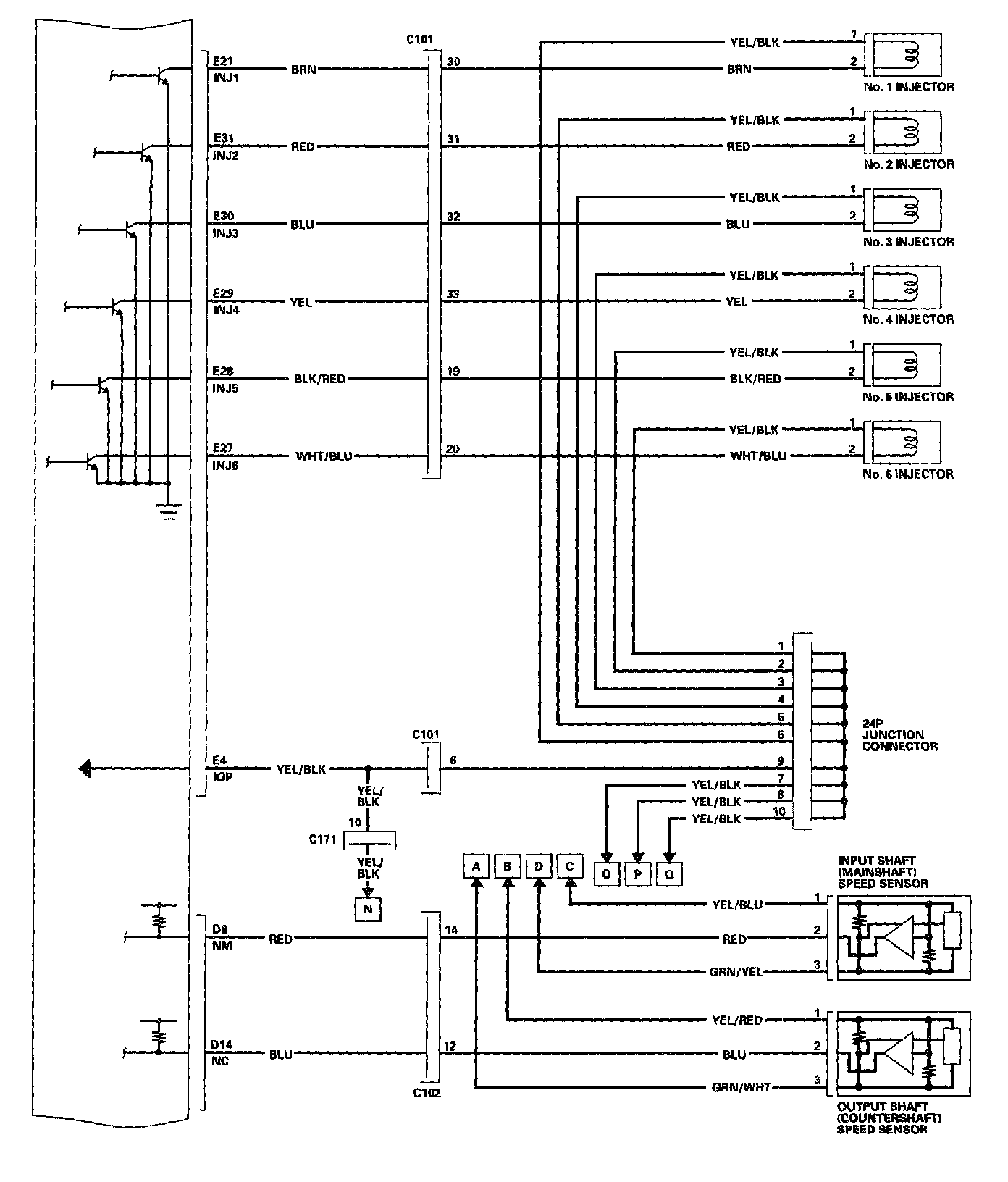

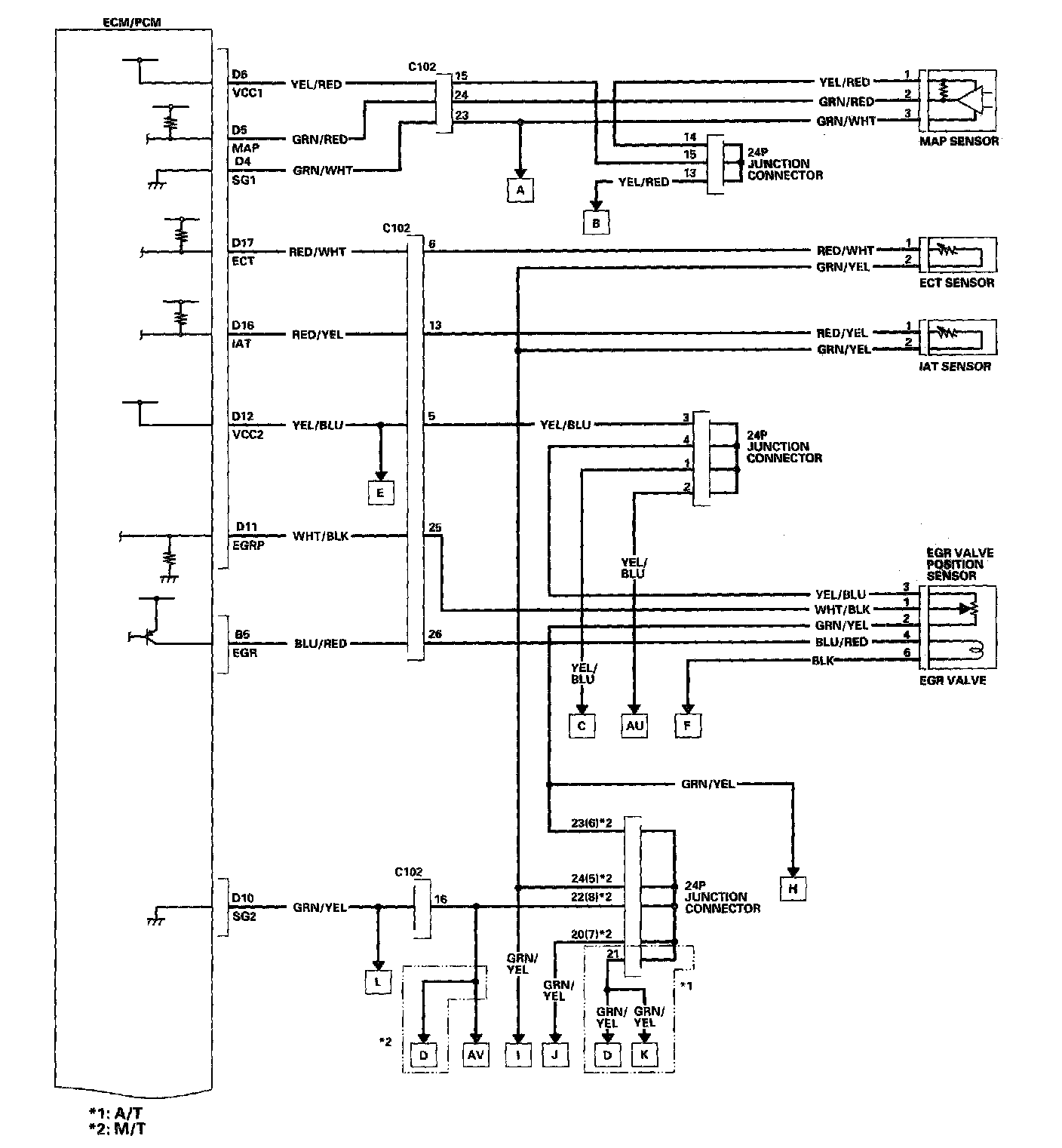

ECM/PCM Circuit Diagram Image 11-42:

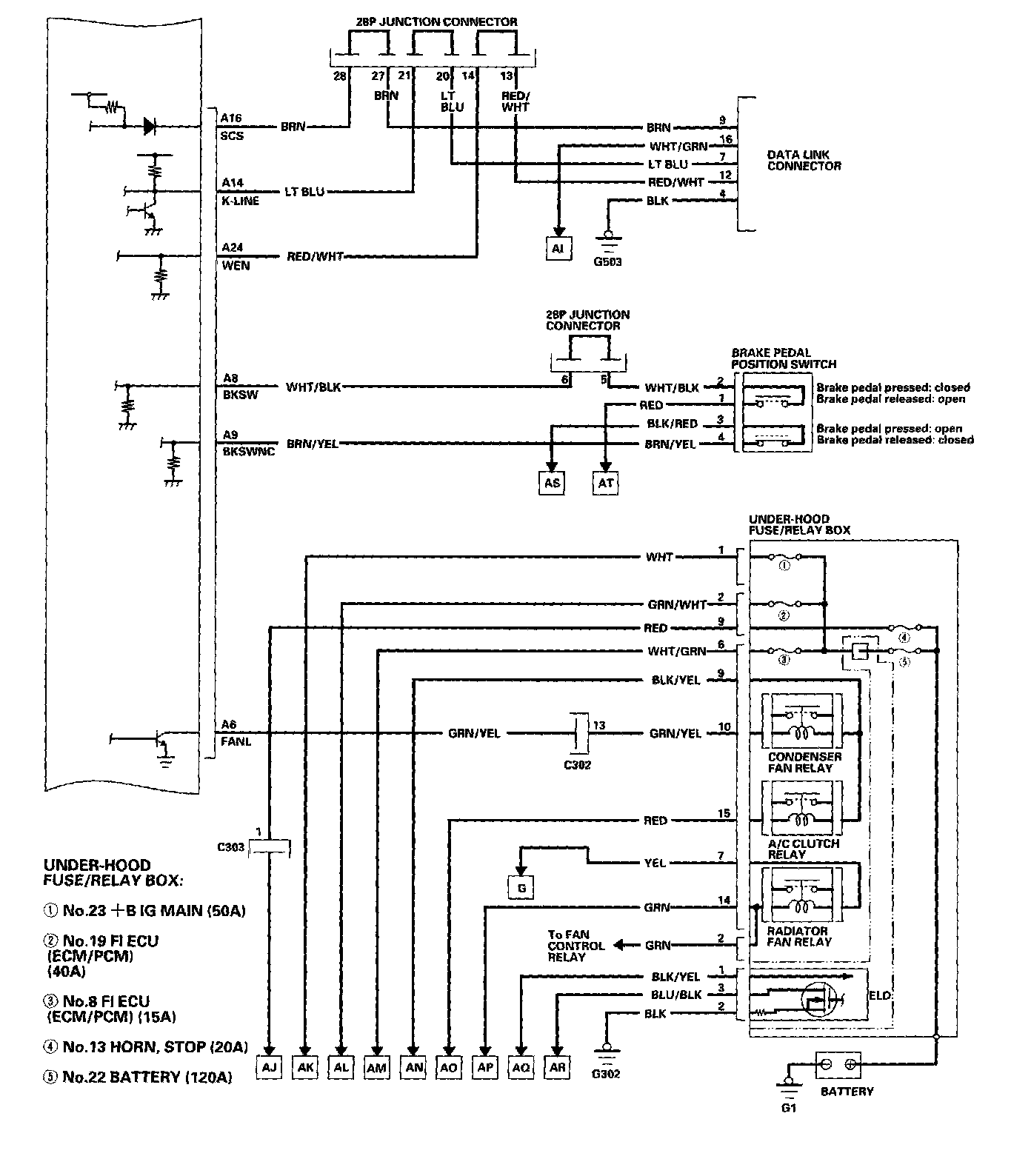

ECM/PCM Circuit Diagram Image 11-43:

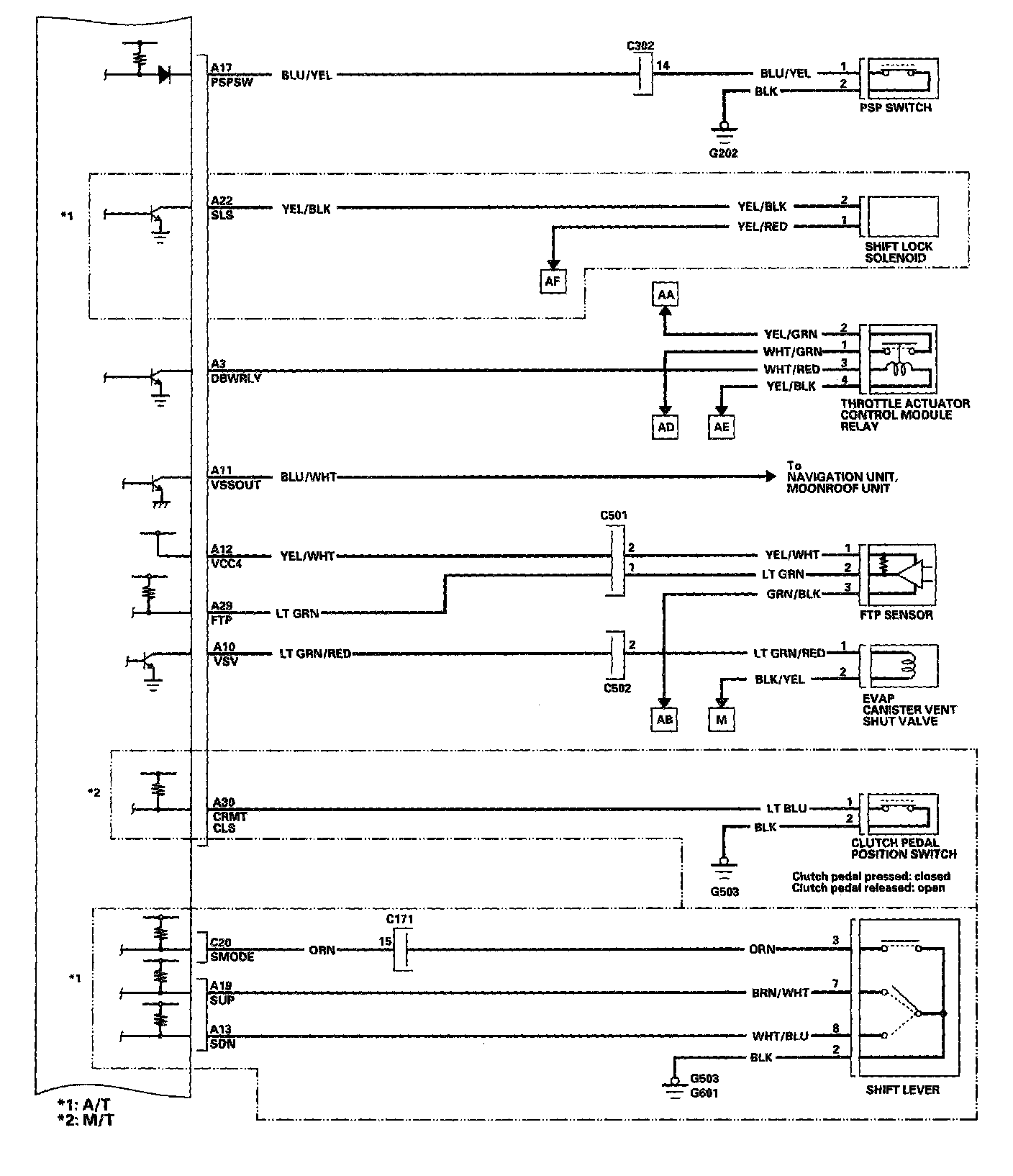

ECM/PCM Circuit Diagram Image 11-44:

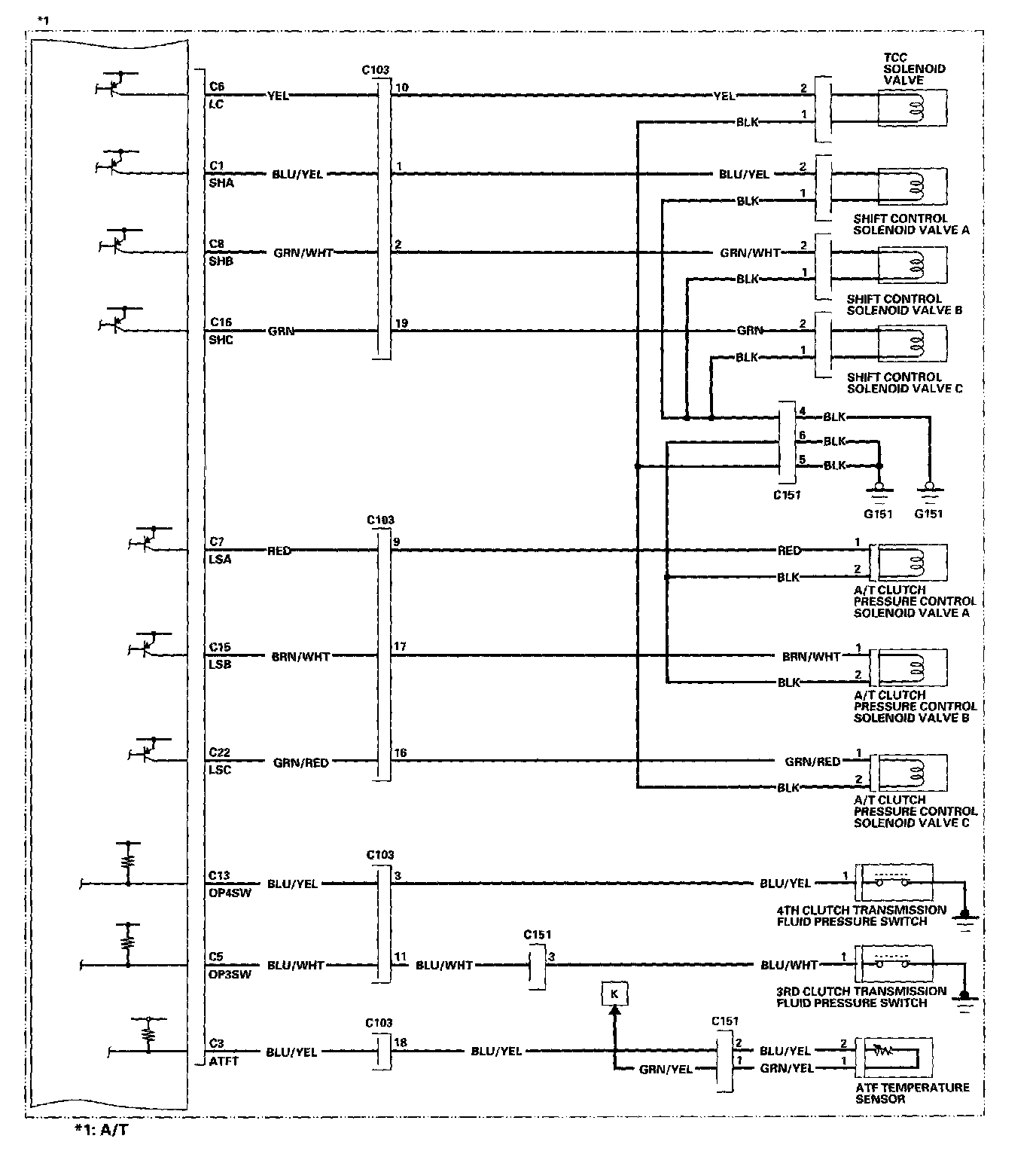

ECM/PCM Circuit Diagram Image 11-45:

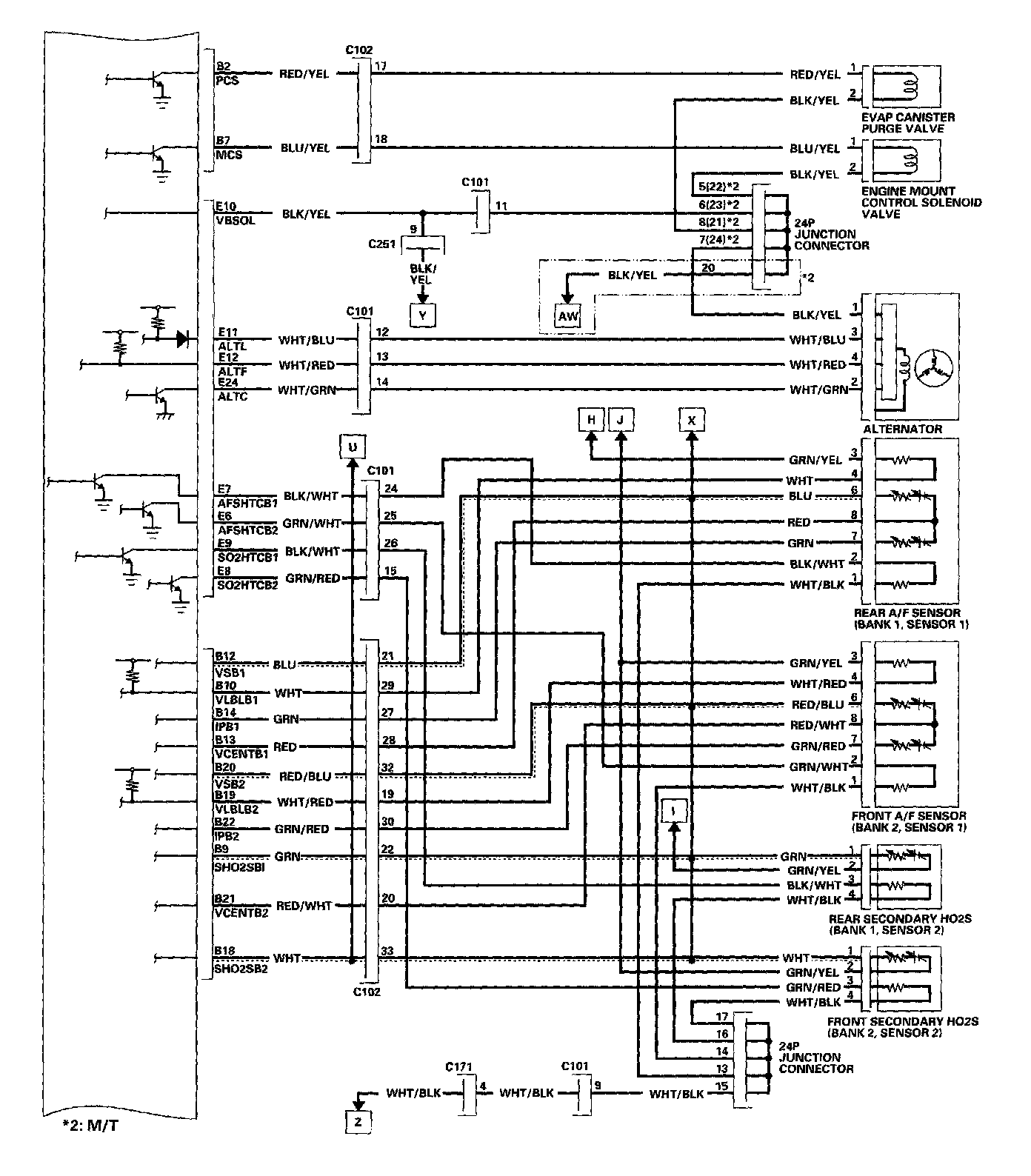

ECM/PCM Circuit Diagram Image 11-46:

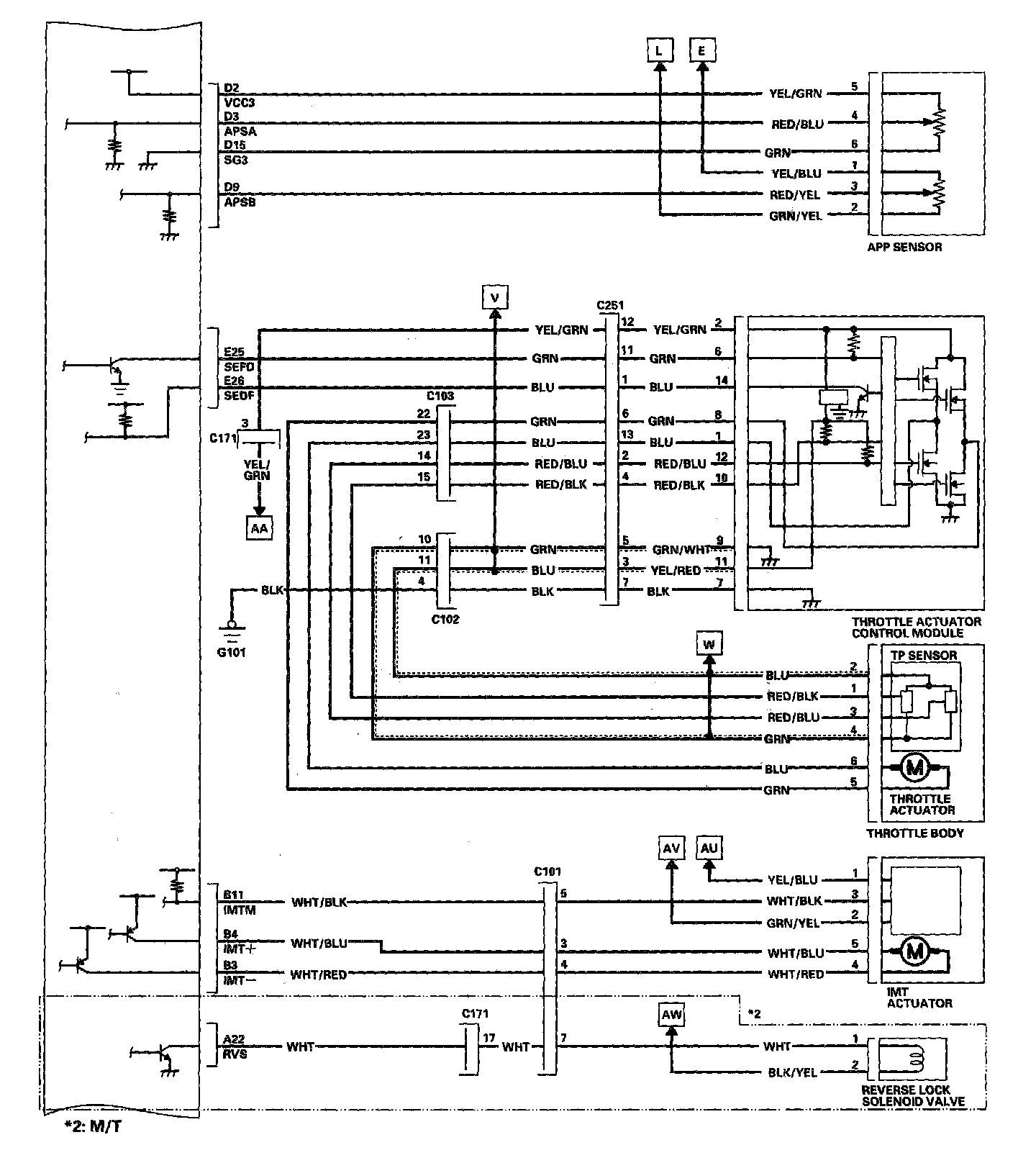

ECM/PCM Circuit Diagram Image 11-47:




ECM/PCM Circuit Diagram Image 11-48:




ECM/PCM Circuit Diagram Image 11-49:




ECM/PCM Circuit Diagram Image 11-50:
