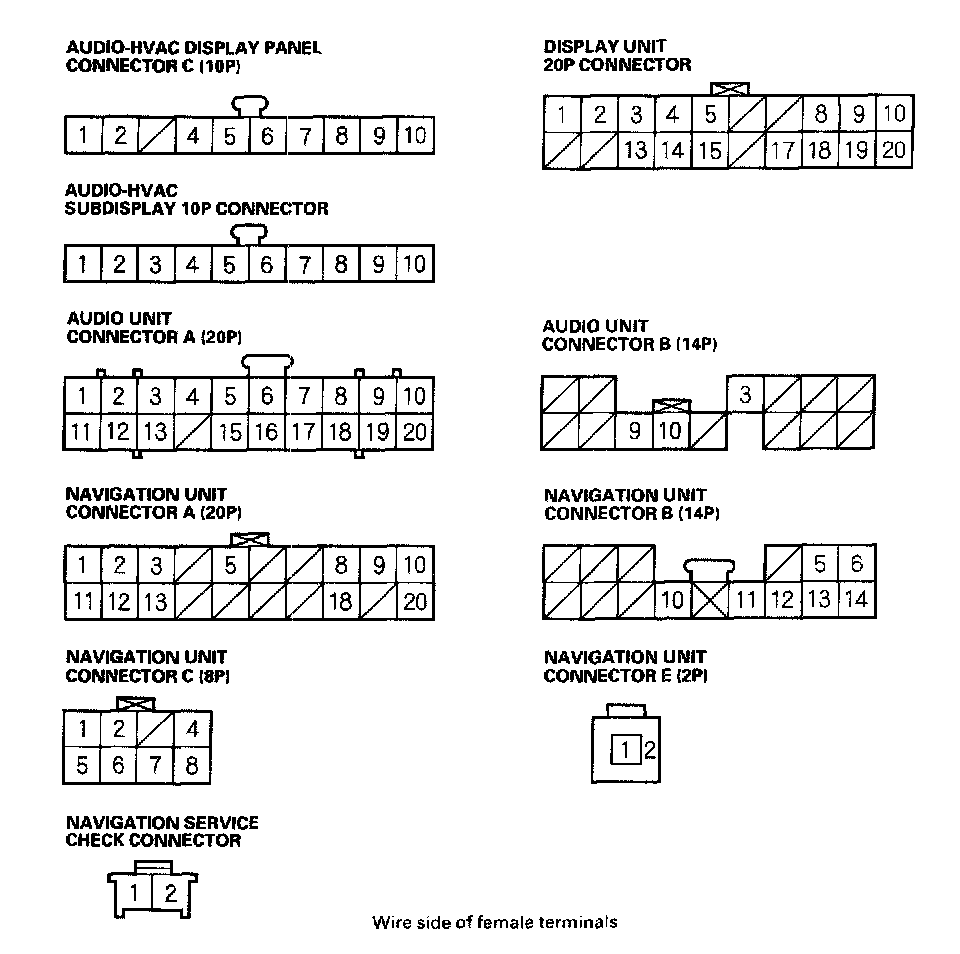

Wire Side Female Terminals

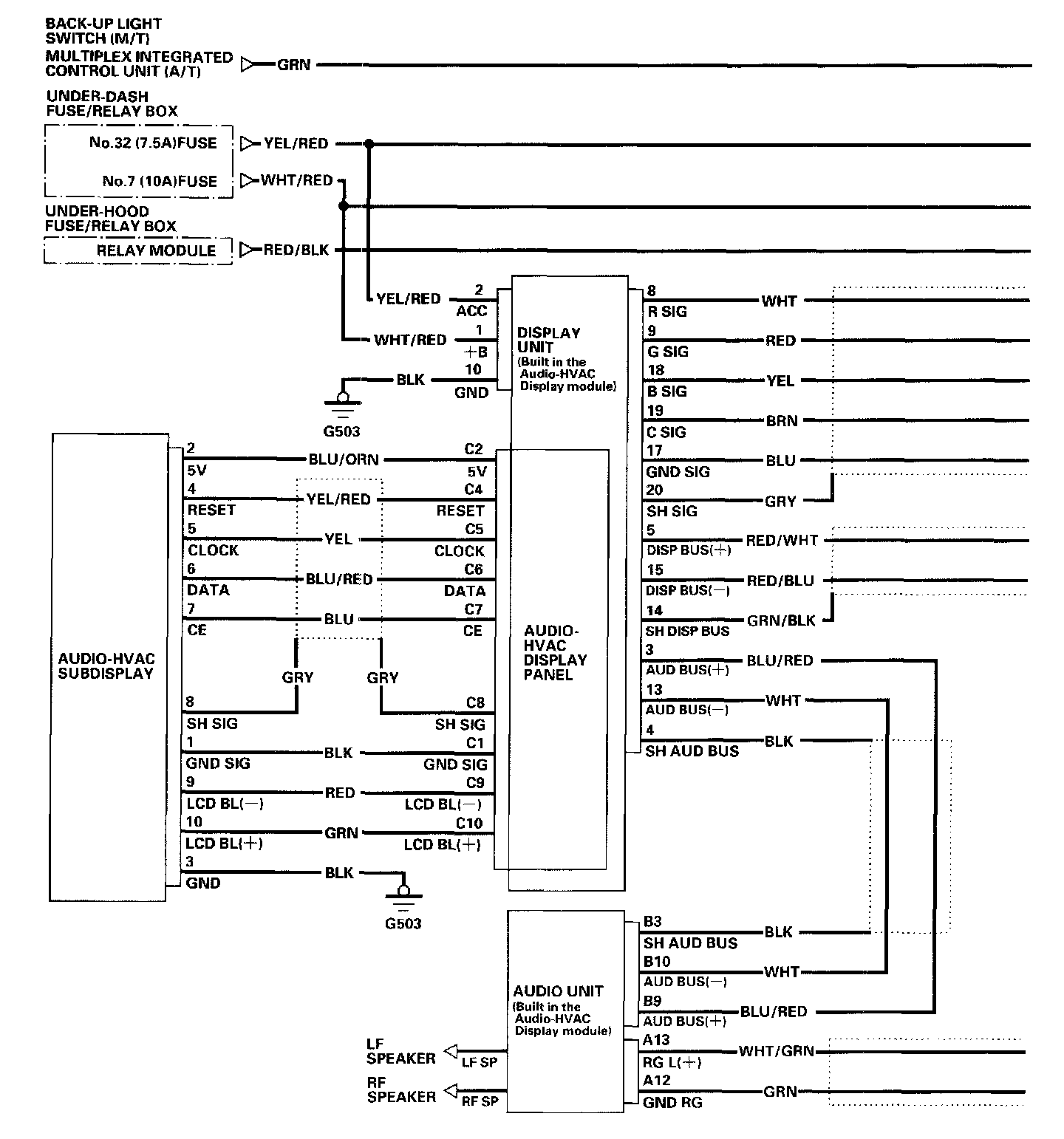

Navigation System - Circuit Diagram Part 1:

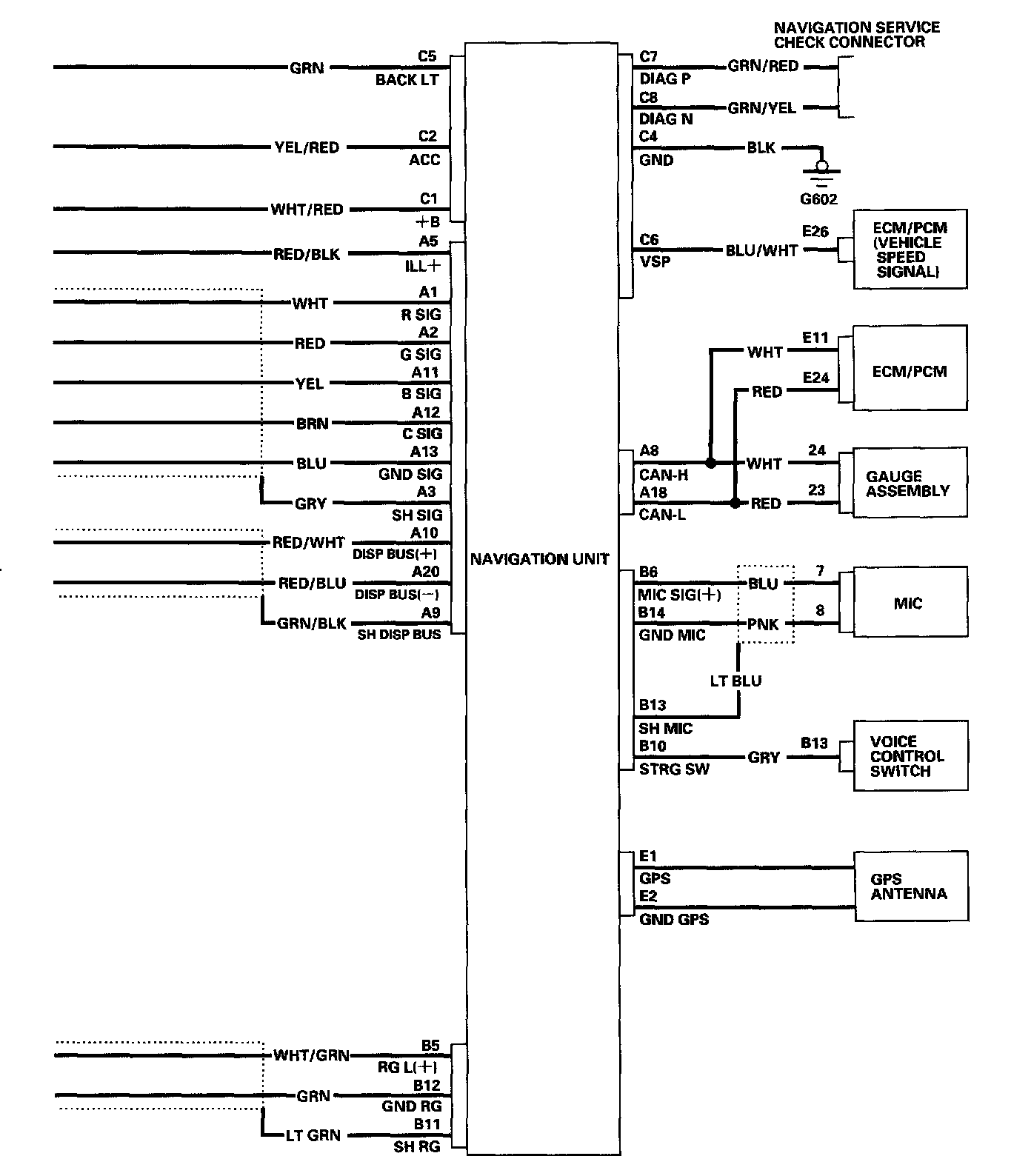

Navigation System - Circuit Diagram Part 2:



Navigation System - Circuit Diagram Part 3:
