Under-Dash Fuse/Relay Box

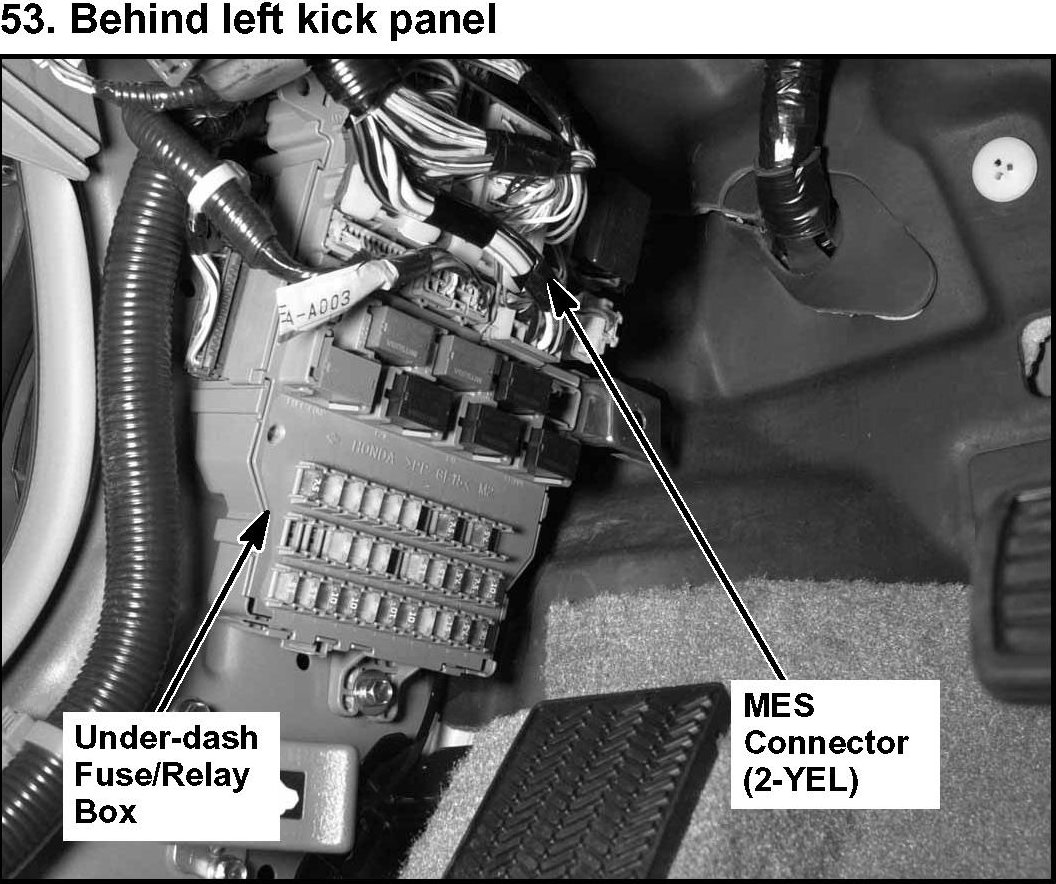

53. Behind Left Kick Panel:

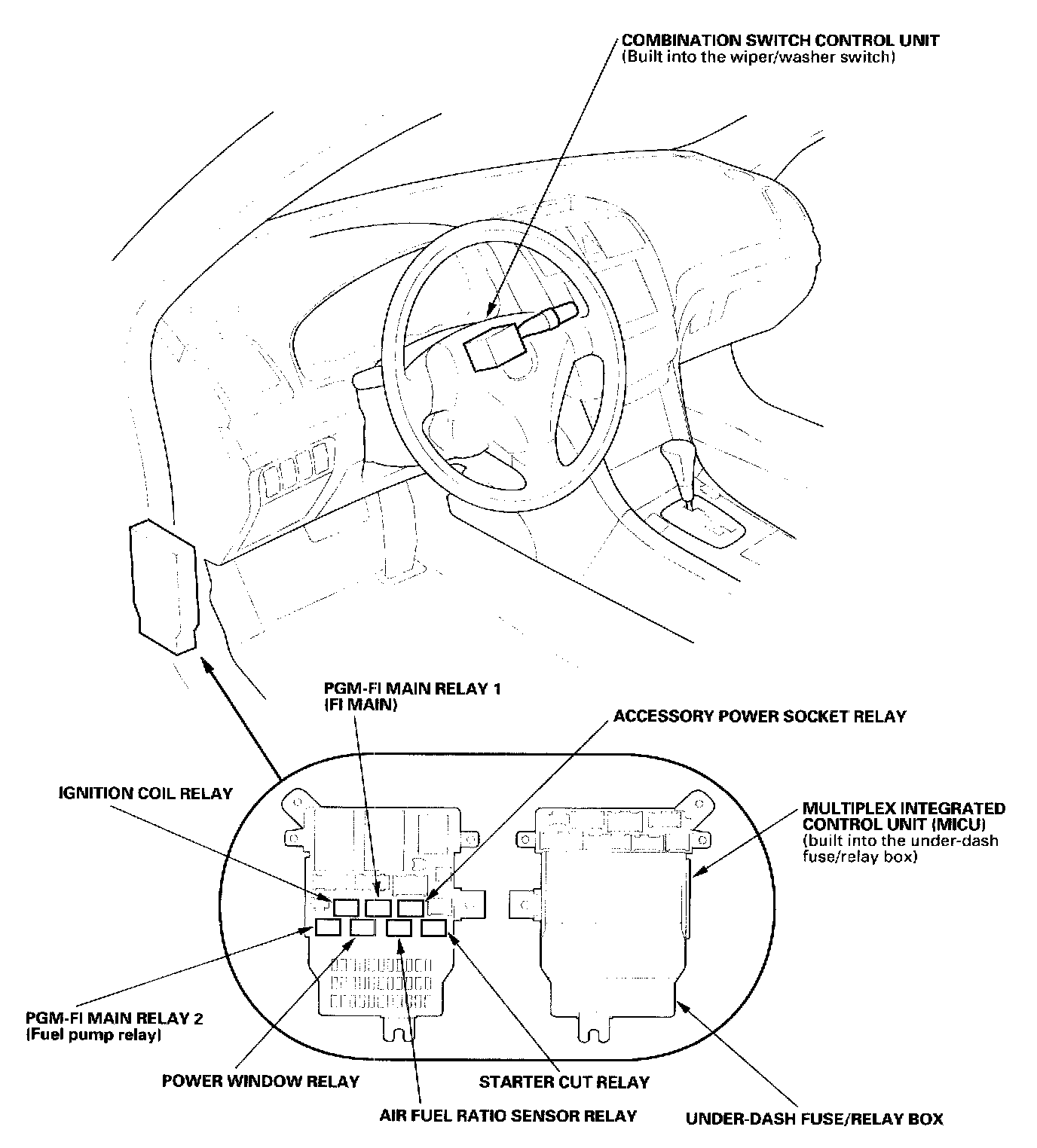

Starting System - Component Location Index:



Relay And Control Unit Locations - Dashboard:



Under-dash Fuse/Relay Box:

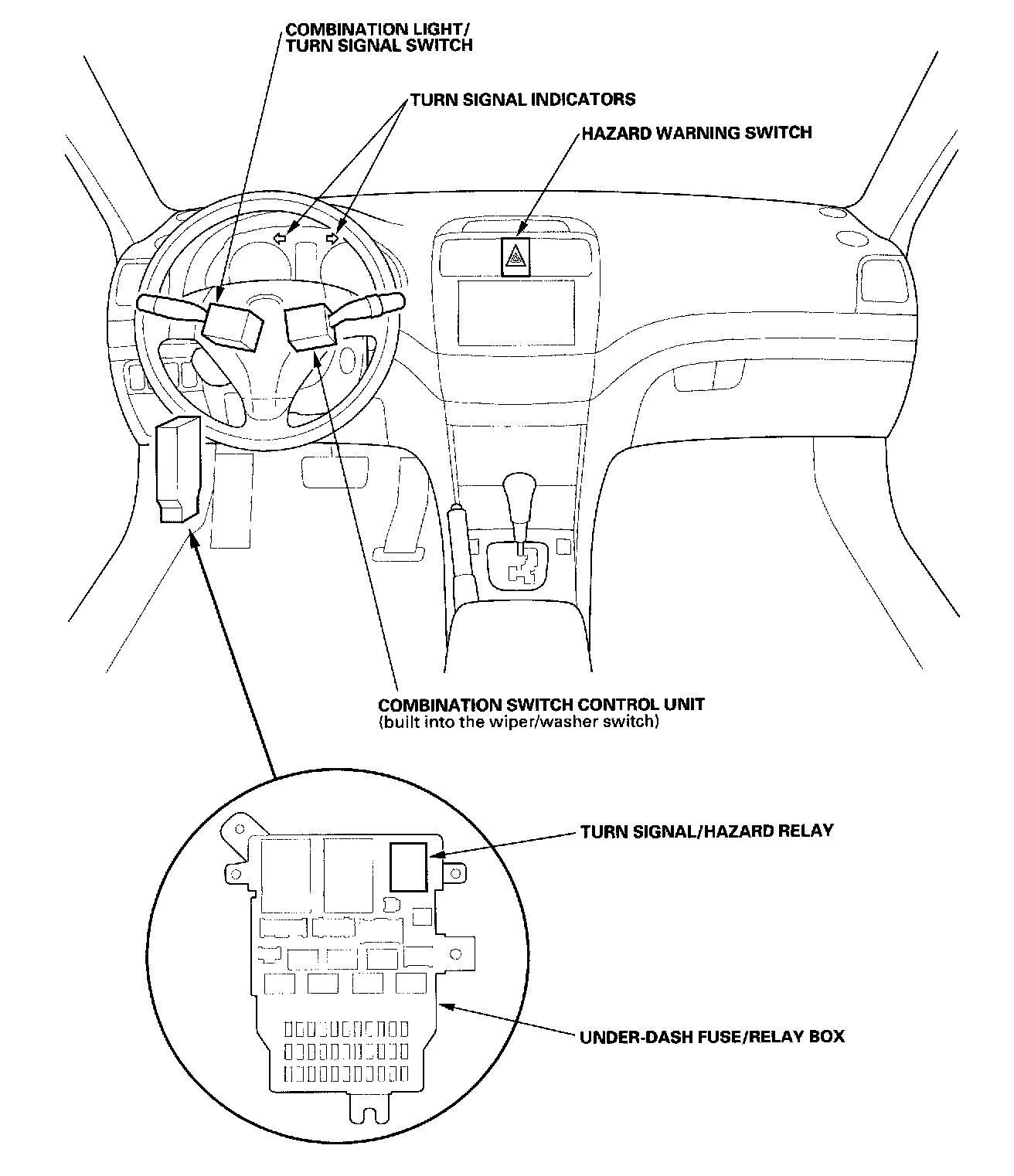

Turn Signal/Hazard Flasher - Component Location Index:
