Exploded View
'04-05 models

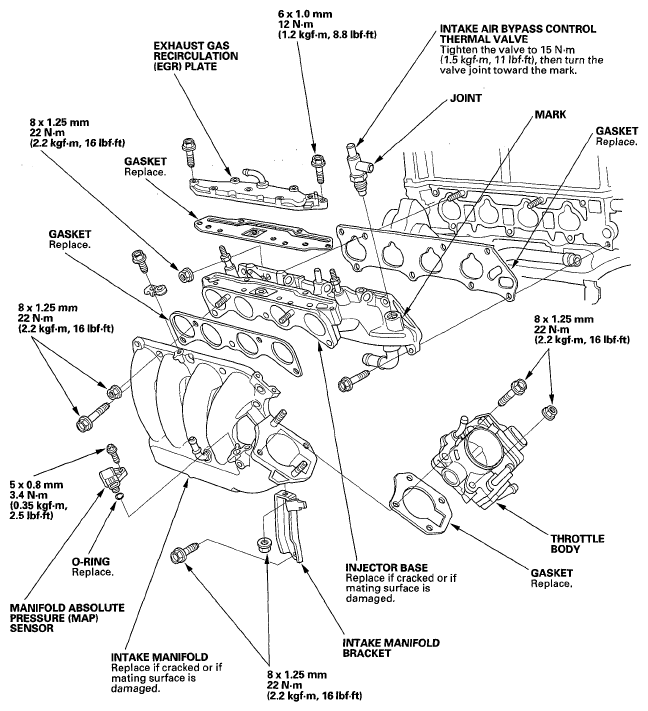

Fig 1: Exploded View Of Intake Manifold W/Torque Specifications - '04-05 Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.
'06-08 models

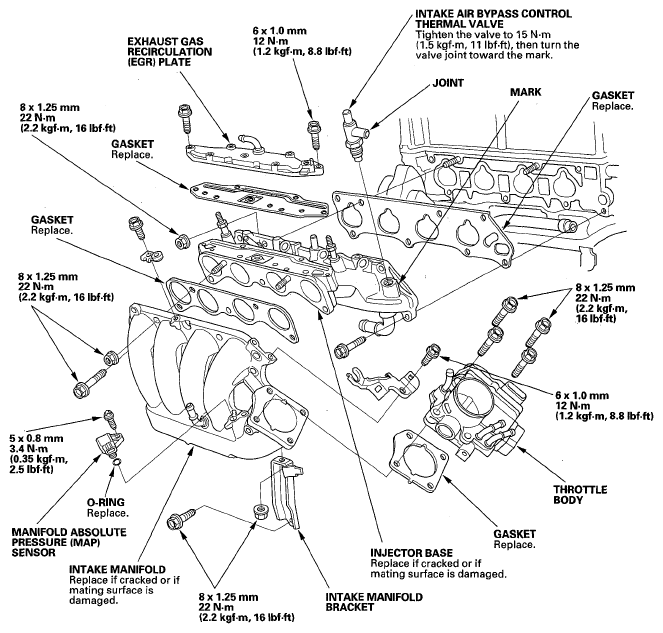

Fig 1: Exploded View Of Intake Manifold W/Torque Specifications - '06-08 Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
