Navigation Unit Removal/Installation
WARNING: This page is about a different car, the 2008 Acura TSX, 2007 Acura TSX, and 2006 Acura TSX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Before replace the navigation unit, back-up the client data using system diagnostic mode "save users memory" under the functional set up (see SAVE USERS MEMORY ).
- If the navigation unit is replaced or disconnected, a Map Matching must be done (see MAP MATCHING ).
- Turn the ignition switch ON (II).
- Eject the DVD from the original navigation unit (see DVD-ROM REPLACEMENT
). To avoid scratching or damaging the DVD, temporarily place the DVD in a jewel case.NOTE: If the DVD will not eject, refer to NAVIGATION UNIT WILL NOT EJECT OR ACCEPT THE NAVIGATION DVD symptom troubleshooting .
- Turn the ignition switch to LOCK (0).

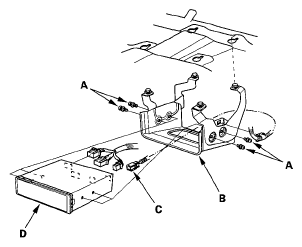

- Remove the four screws (A) from the bracket (B) located in the trunk.
- Disconnect the navigation unit connectors (C).
- Remove the navigation unit (D).
- Install in the reverse order of removal.
- Turn the ignition switch ON (II), then reinstall the client's original DVD, verifying that the DVD is free of scratches or smudges.
- Check any official Honda website for any service publications prescribing patches for the navigation system, and if any should be applied to the new navigation unit.NOTE: Simply transferring the DVD from the original navigation unit to the new navigation unit does not assure the correct software for the vehicle will be loaded into the new navigation unit. Doing the DVD transfer without doing software patches may cause the new navigation unit to appear to be malfunctioning.
- Enter the new navigation anti-theft code.
- Park the vehicle outside, and do the GPS initialization (see GPS INITIALIZATION ).
- Give the new navigation anti-theft code to the client.
