Function Diagram

WARNING: This page is about a different car, the 2008 Acura TSX, 2007 Acura TSX, and 2006 Acura TSX. However, it is still accessible from the selected car via links, so may be relevant.

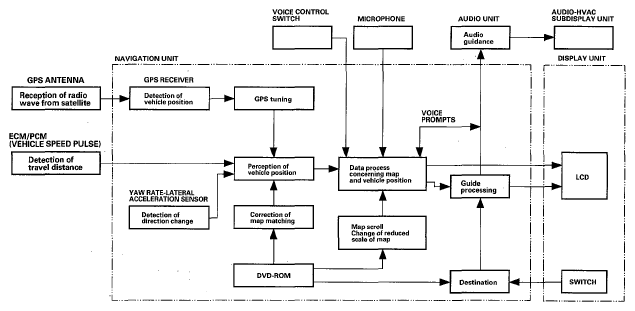

Fig 1: Navigation System Function Diagram
G05489389Courtesy of AMERICAN HONDA MOTOR CO., INC.
