Body Specifications

'04-05 Models:

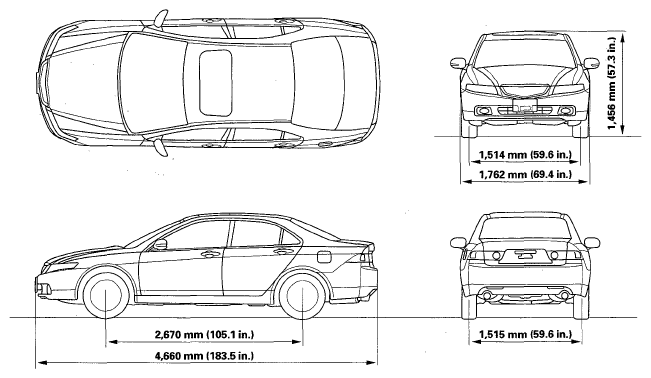

Fig 1: Identifying Body Specifications ('04-05 Models)
G05489881Courtesy of AMERICAN HONDA MOTOR CO., INC.

'06-08 Models:

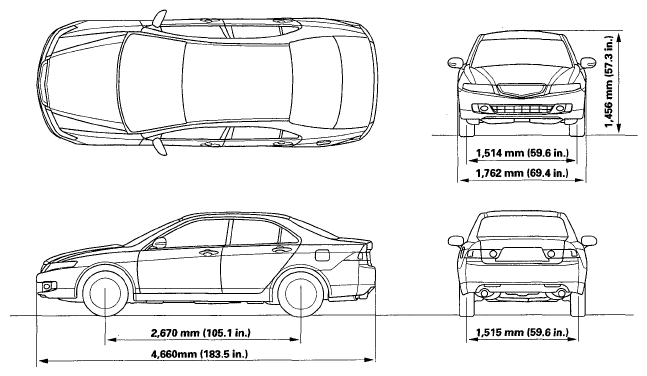

Fig 2: Identifying Body Specifications ('06-08 Models)
G05489882Courtesy of AMERICAN HONDA MOTOR CO., INC.
