Display Unit Removal/Installation

  1. Remove the center panel (see DASHBOARD CENTER PANEL REMOVAL/INSTALLATION ).
  2. Remove the display unit/audio unit.
  3. Remove the bracket (A), then remove the display unit (B) from the audio unit (C).

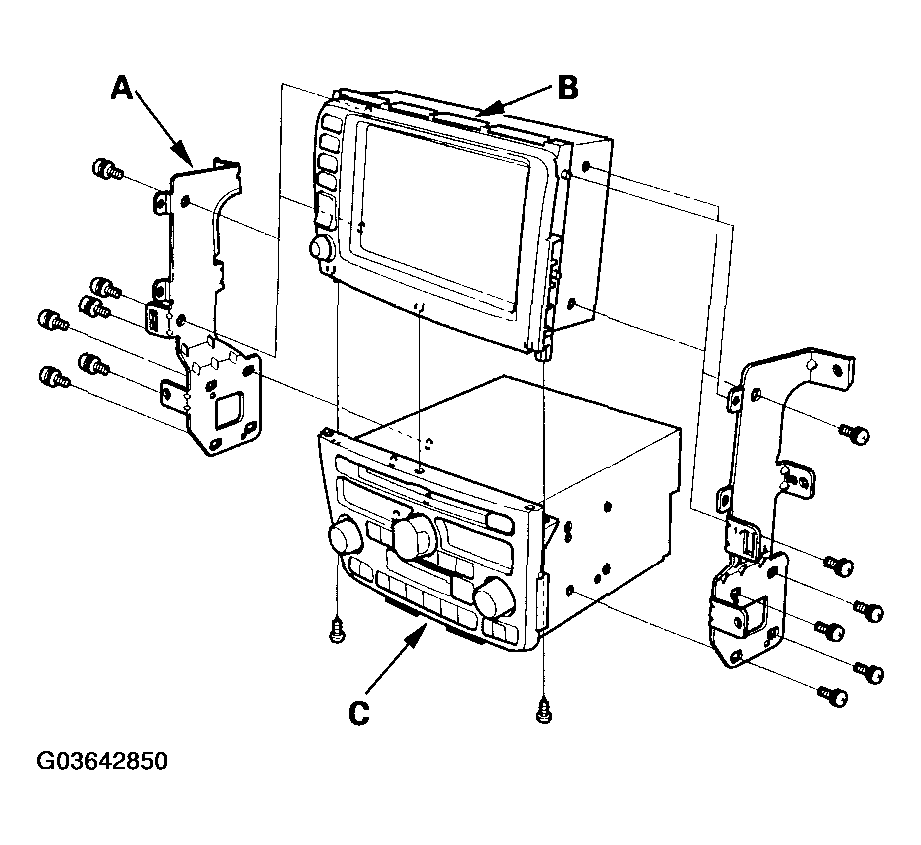

    Fig 1: Removing Bracket And Display Unit From Audio Unit
    G03642850Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install in the reverse order of removal.
