Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

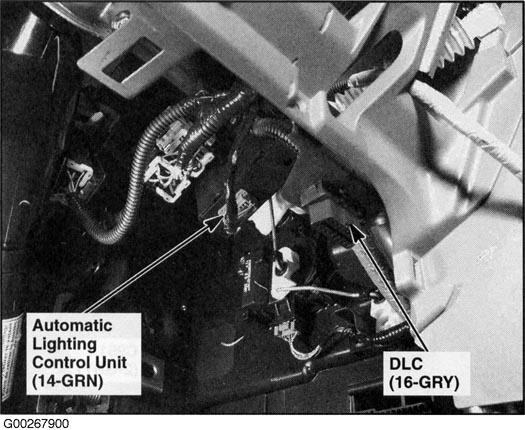

| Automatic Lighting Control Unit | Under middle of dash. See Figure . |
| Climate Control Unit | Lower center of dash, forward of center console. See Figure . |
| Door Multiplex Control Unit | In driver's door. |
| Driver's Multiplex Control Unit | Behind left end of dash. See Figure . |

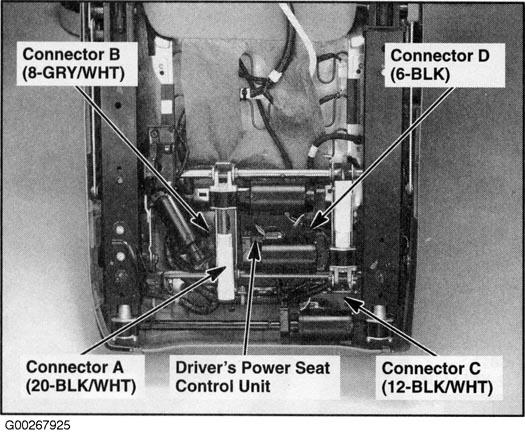

| Driver's Power Seat Control Unit | Under driver's seat. See Figure . |
| ELD Unit | At right rear of engine compartment. |

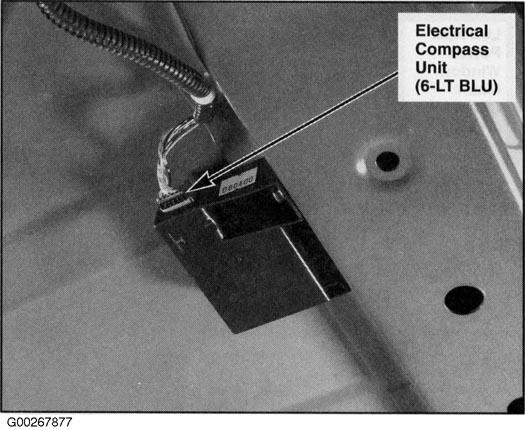

| Electrical Compass Unit | Middle Of Roof. See Figure . |

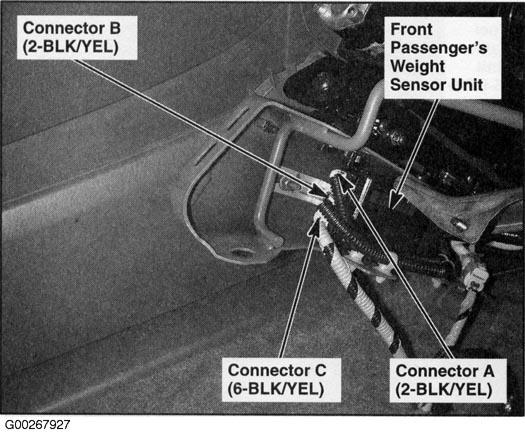

| Front Passenger's Weight Sensor Unit | Under front passenger's seat. See Figure . |
| Front Stereo Amplifier | Below center console. See Figure . |

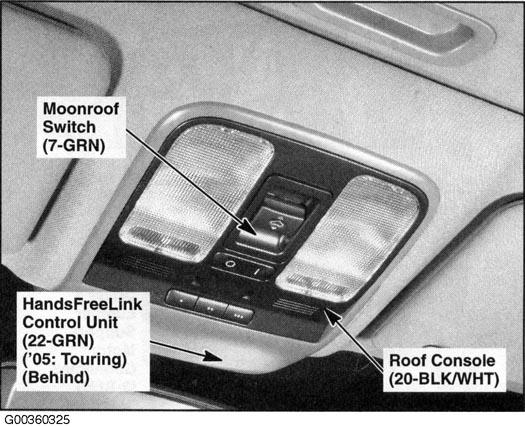

| HandsFreeLink Control Unit | At front of roof. See Figure . |
| Immobilizer Control Unit Receiver | In steering column cover. See Figure . |

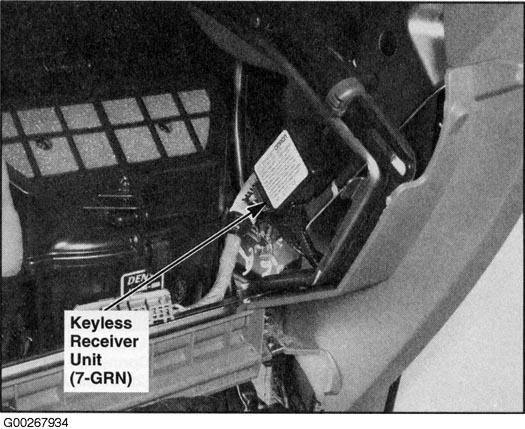

| Keyless Receiver Unit | Behind right side of glove box. See Figure . |
| Navigation Unit | Under right front seat. |

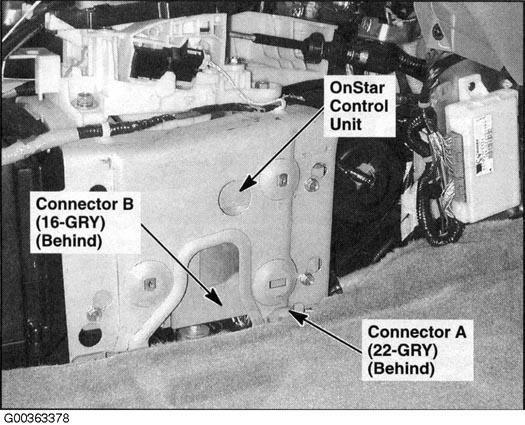

| OnStar Control Unit | Under center console. See Figure . |

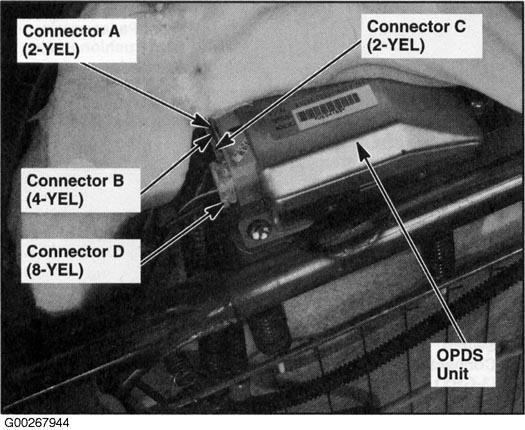

| OPDS Unit | In front passenger's seat. See Figure . |

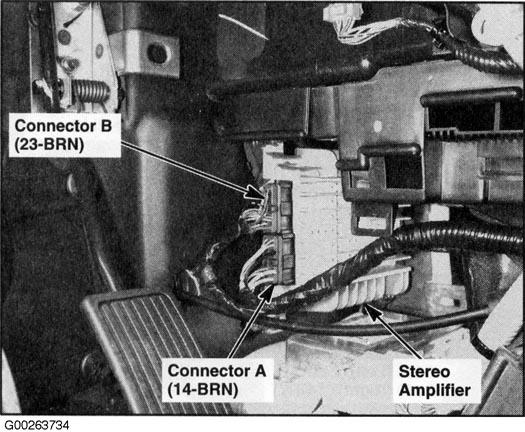

| Passenger's Multiplex Control Unit Connector B | Behind right kick panel. See Figure . |

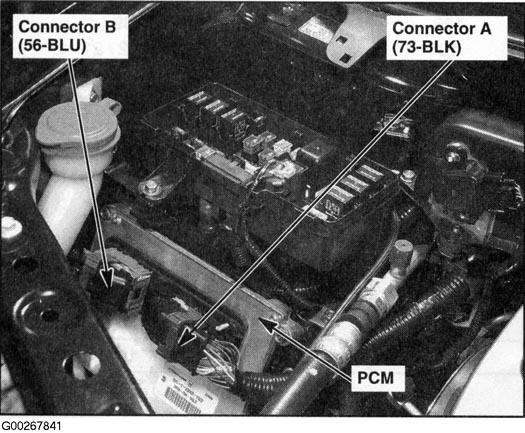

| PCM | On right side of engine compartment. See Figure . |

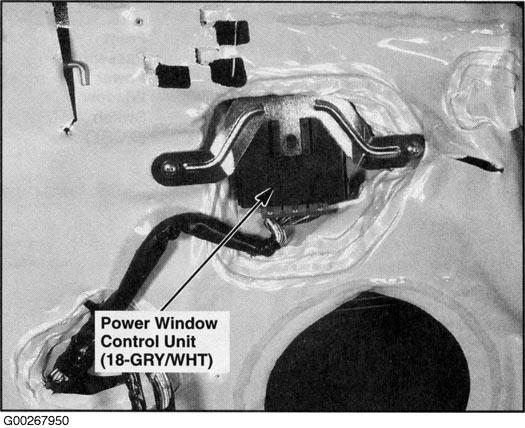

| Power Window Control Unit | In driver's door. See Figure . |

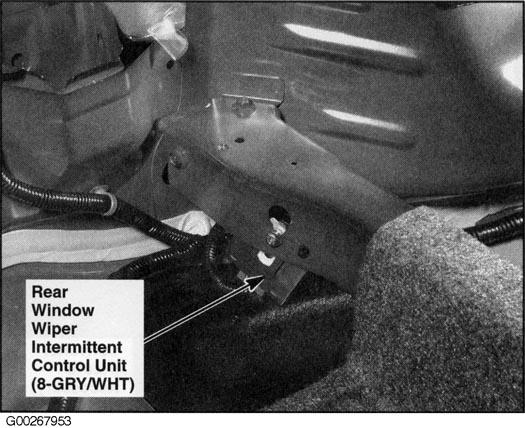

| Rear Window Wiper Intermittent Control Unit | Left side of cargo area. See Figure . |

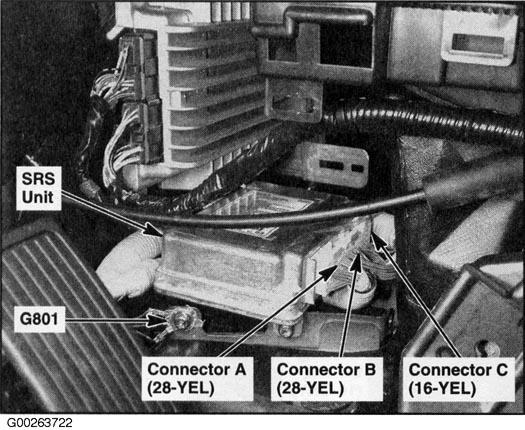

| SRS Unit | Behind lower center of dash. See Figure . |

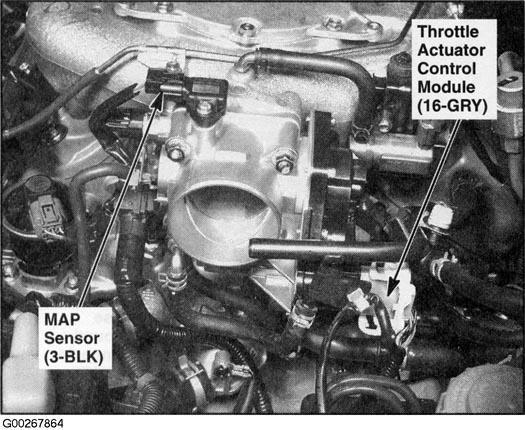

| Throttle Actuator Control Module | At middle of engine compartment. See Figure . |

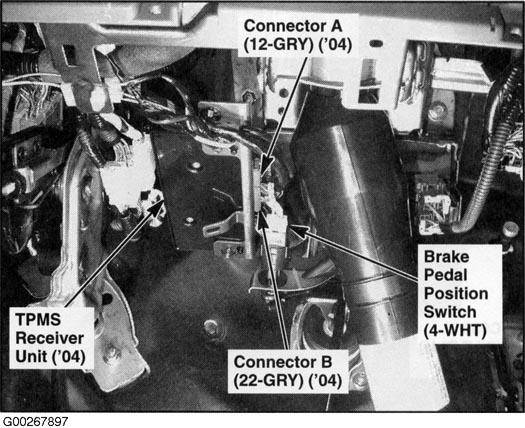

| TPMS Receiver Unit | Under left side of dash. See Figure . |

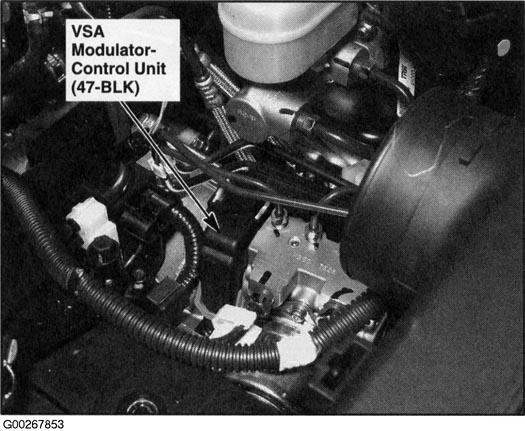

| VSA Modulator Control Unit | On left side of engine compartment. See Figure . |

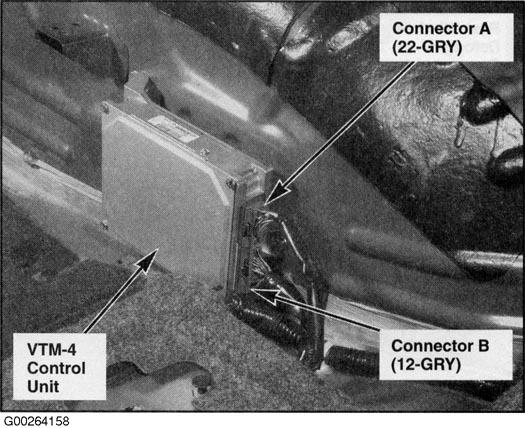

| VTM-4 Control Unit | At right side of cargo area, behind rear side trim panel. See Figure . |
