Exploded View

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

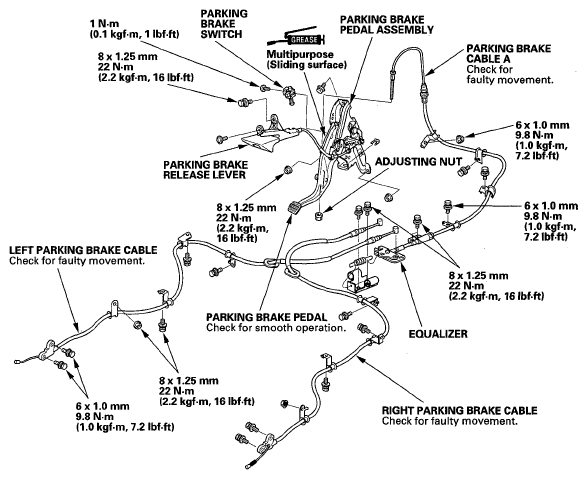

Fig 1: Exploded View Of Parking Brake Cable With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:

The parking brake cables must not be bent or distorted. This will lead to stiff operation and premature cable failure.
Refer to the EXPLODED VIEW as needed during this procedure.

Loosen the parking brake cable adjusting nut (see MINOR ADJUSTMENT ).
Remove the parking brake shoes, and disconnect the parking brake cable from the parking brake lever (see PARKING BRAKE SHOE REPLACEMENT ).
Remove the parking brake cable mounting bolts from the backing plate (A).

Fig 2: Parking Brake Cable Mounting Bolts And Backing Plate With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull the parking brake cable (B) and remove it from the backing plate.
Reinstall the parking brake cable in the reverse order of removal, and note these items:
- Be careful not to bend or distort the cable.
- Connect the parking brake cable to the brake lever, and install the parking brake shoes and rear brake disc/drum (see PARKING BRAKE SHOE REPLACEMENT ).
- Do the parking brake adjustment (see MINOR ADJUSTMENT ). Apply the parking brake firmly 10 times then adjust it again.
