Power Seat Control Module: Locations

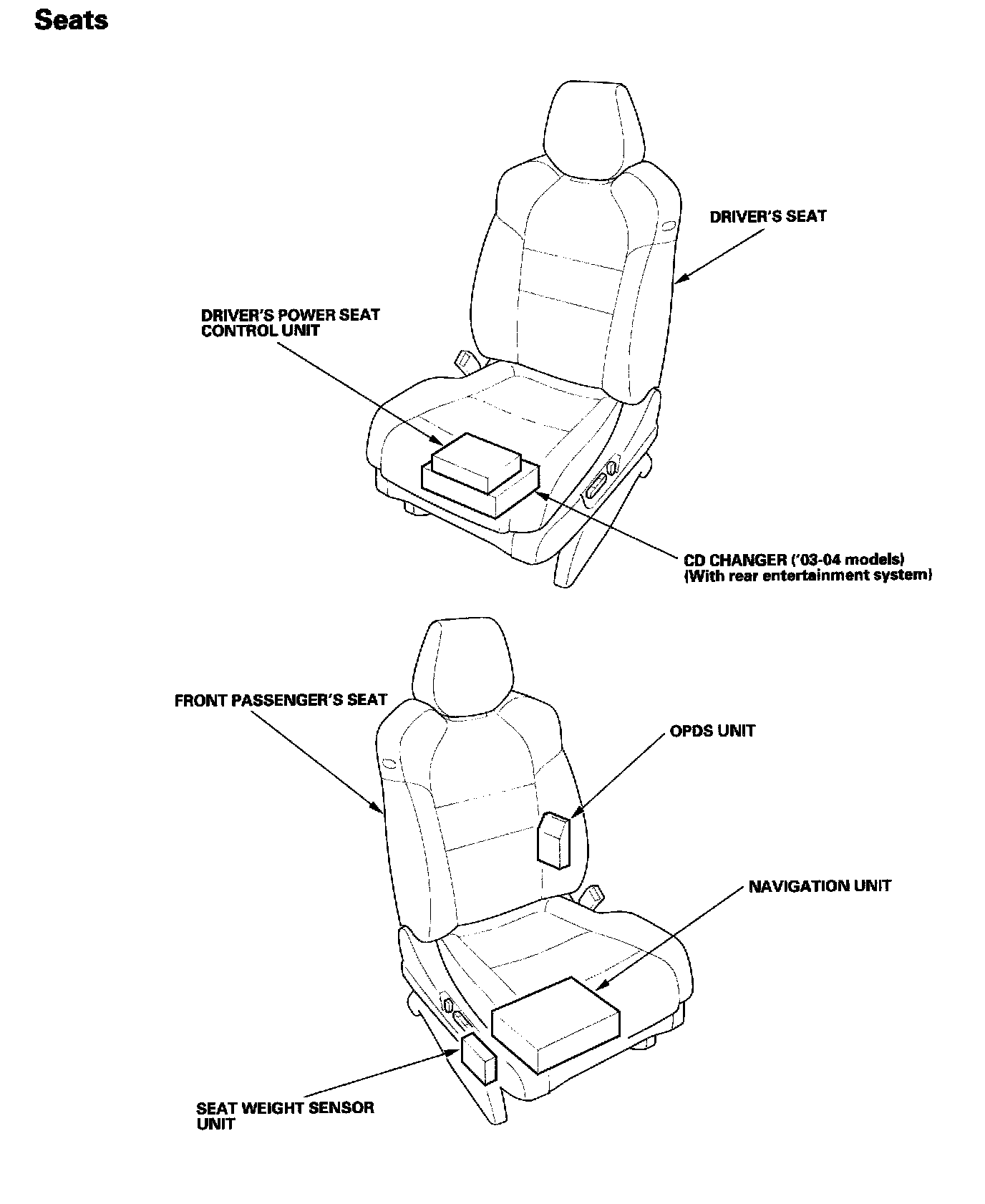

Relay And Control Unit Locations - Seats:

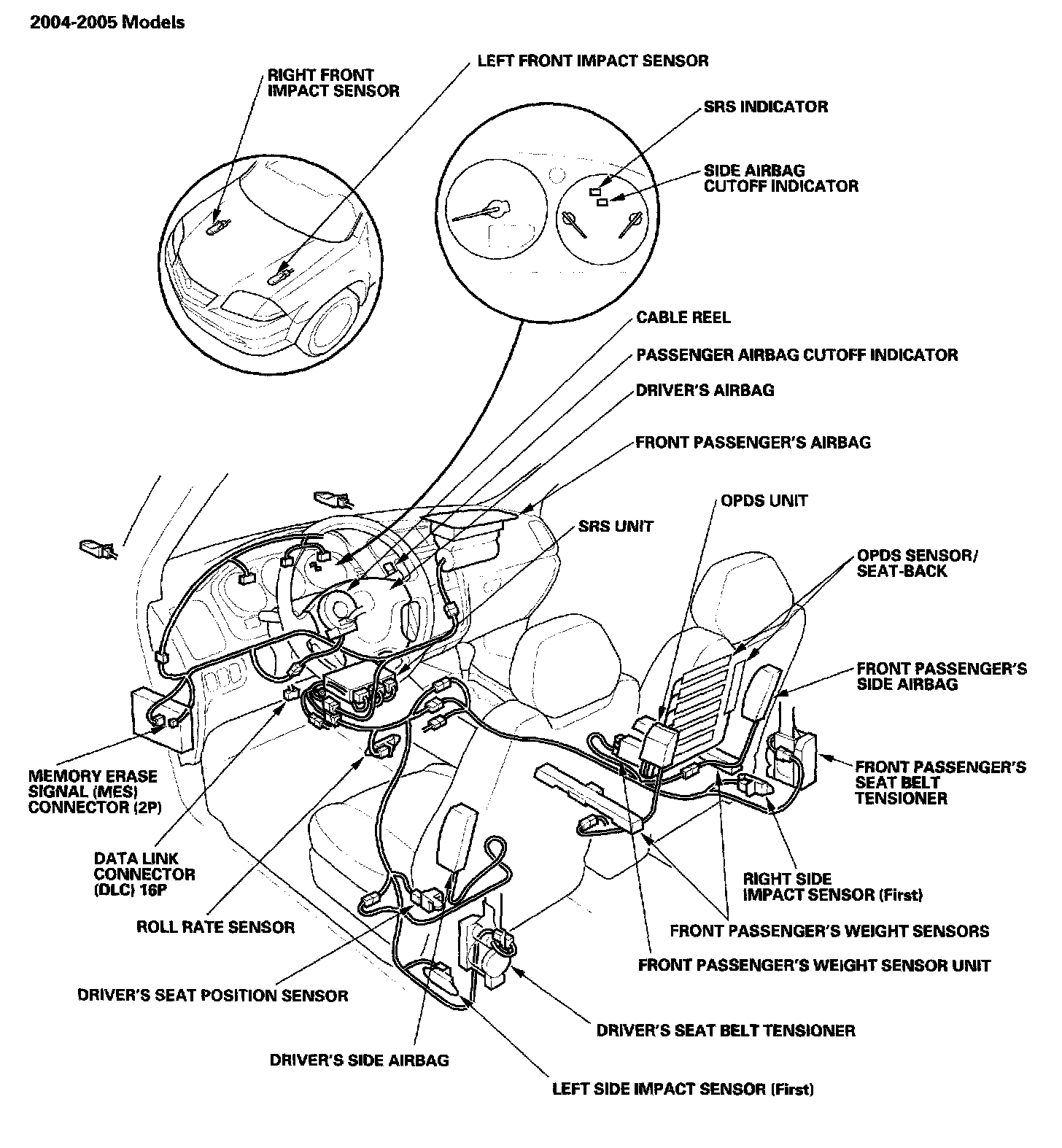

SRS - Component Location Index:

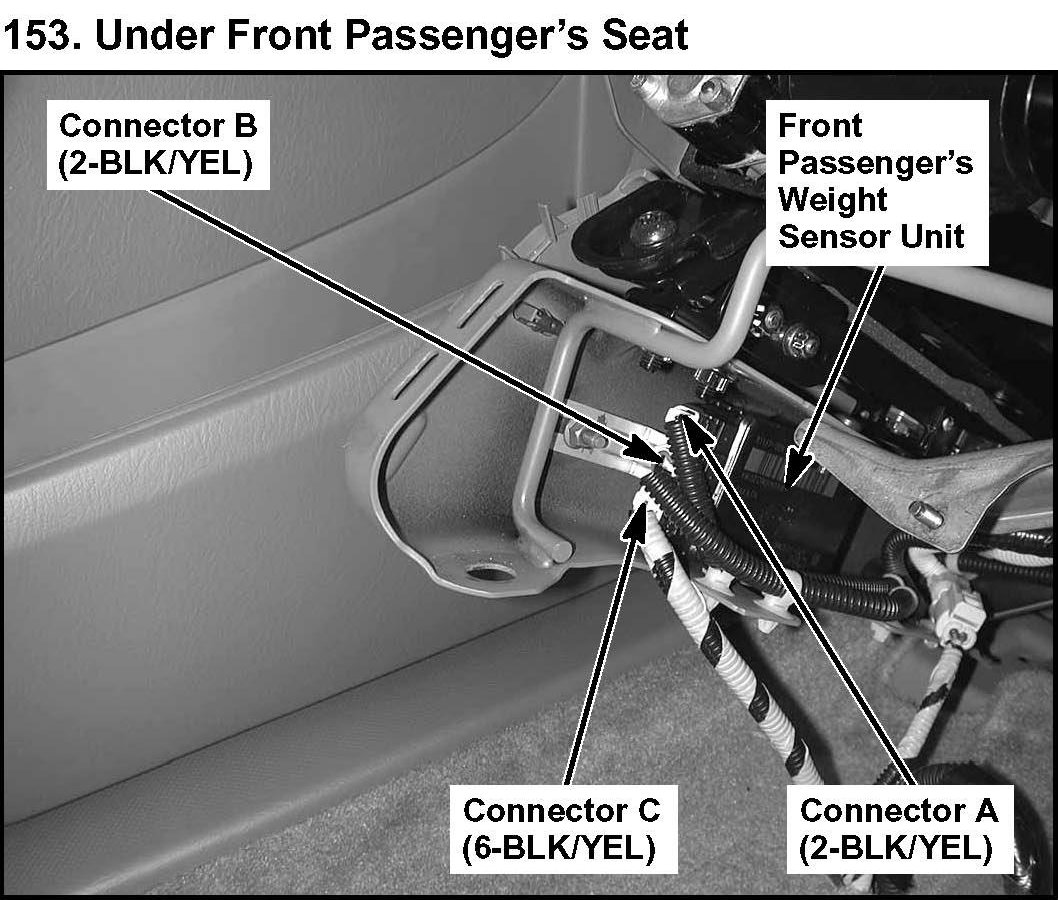

153. Under Front Passenger's Seat:
