Information Bus: Locations

Multiplex Integrated Control System - Component Location Index:



Multiplex Integrated Control System - Component Location Index:

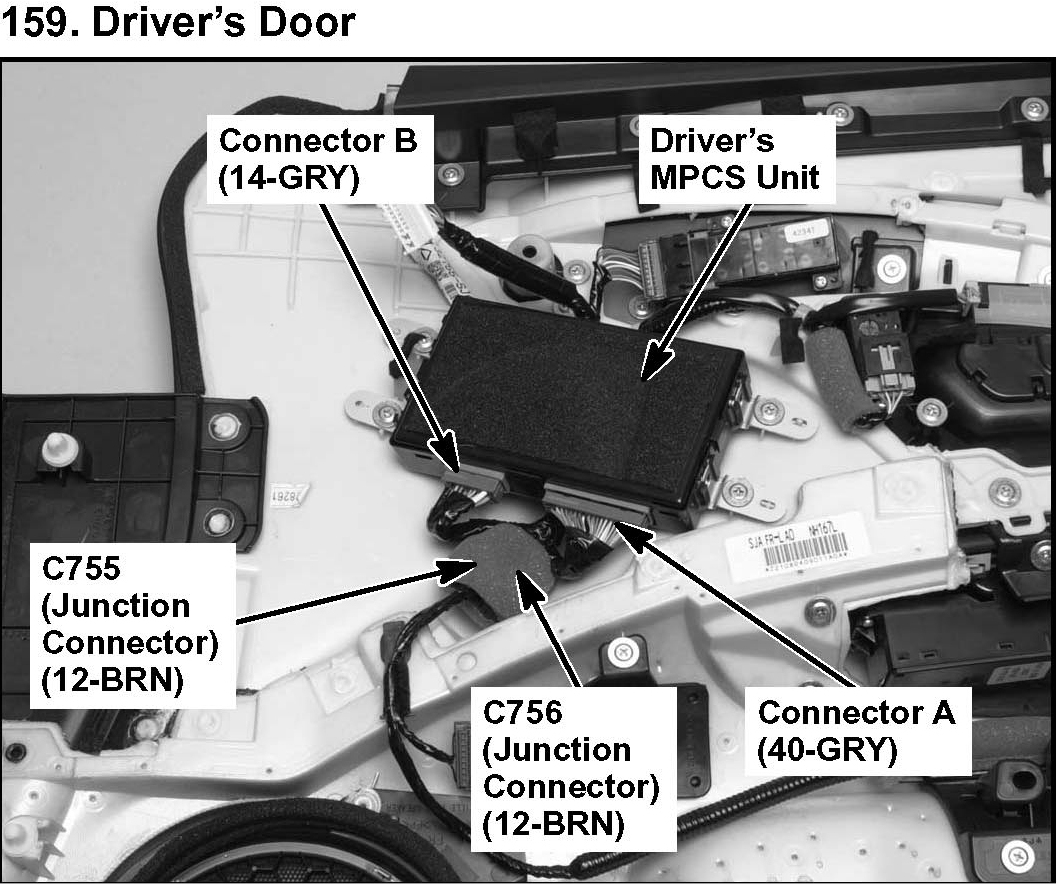

159. Driver's Door:

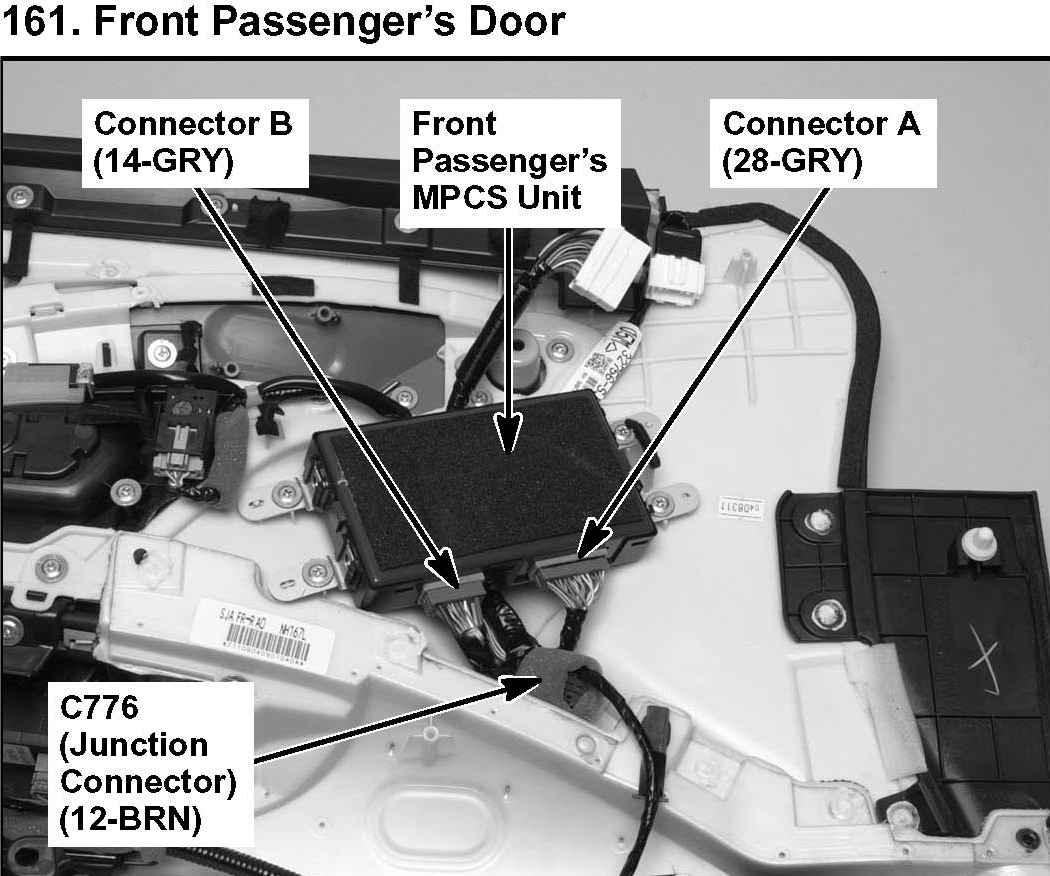

161. Front Passenger's Door:
