Ignition Switch: Locations

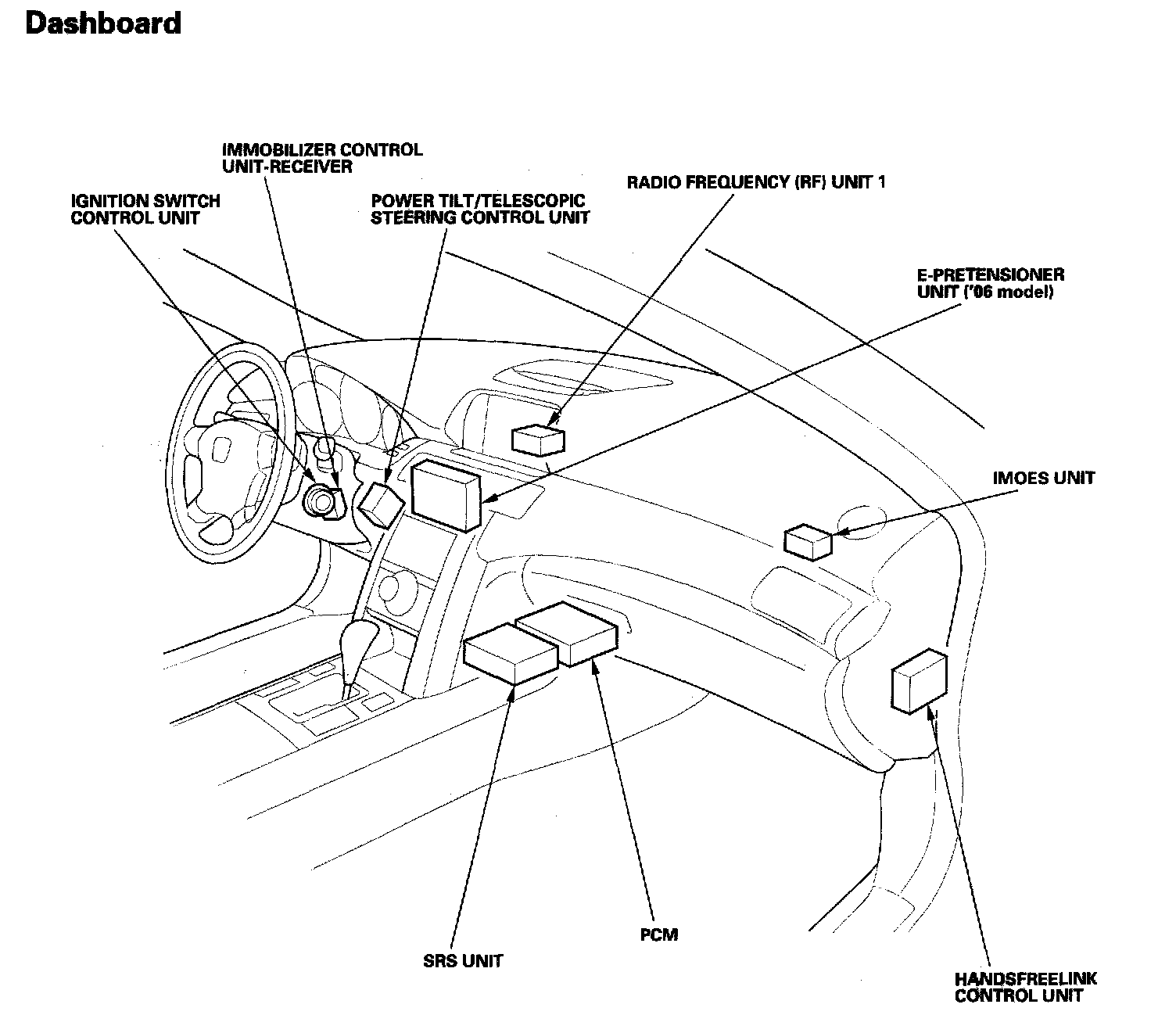

Relay And Control Unit Locations - Dashboard:

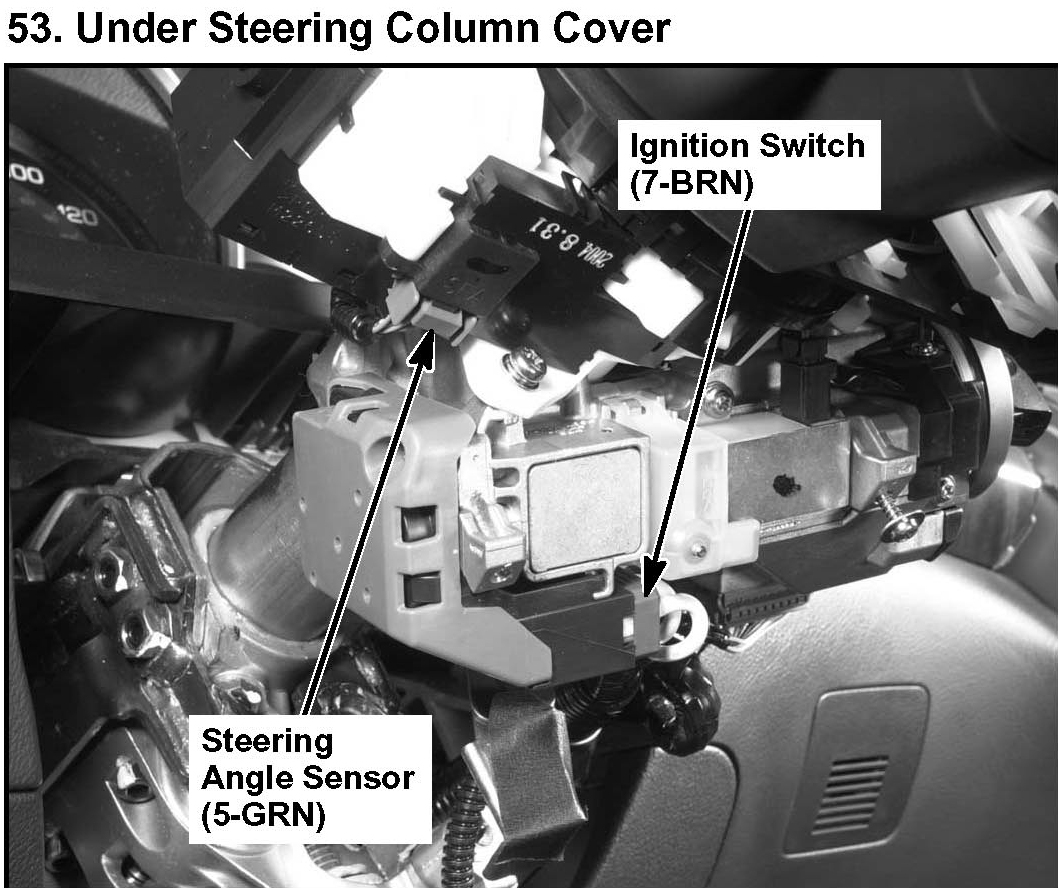

53. Under Steering Column Cover:

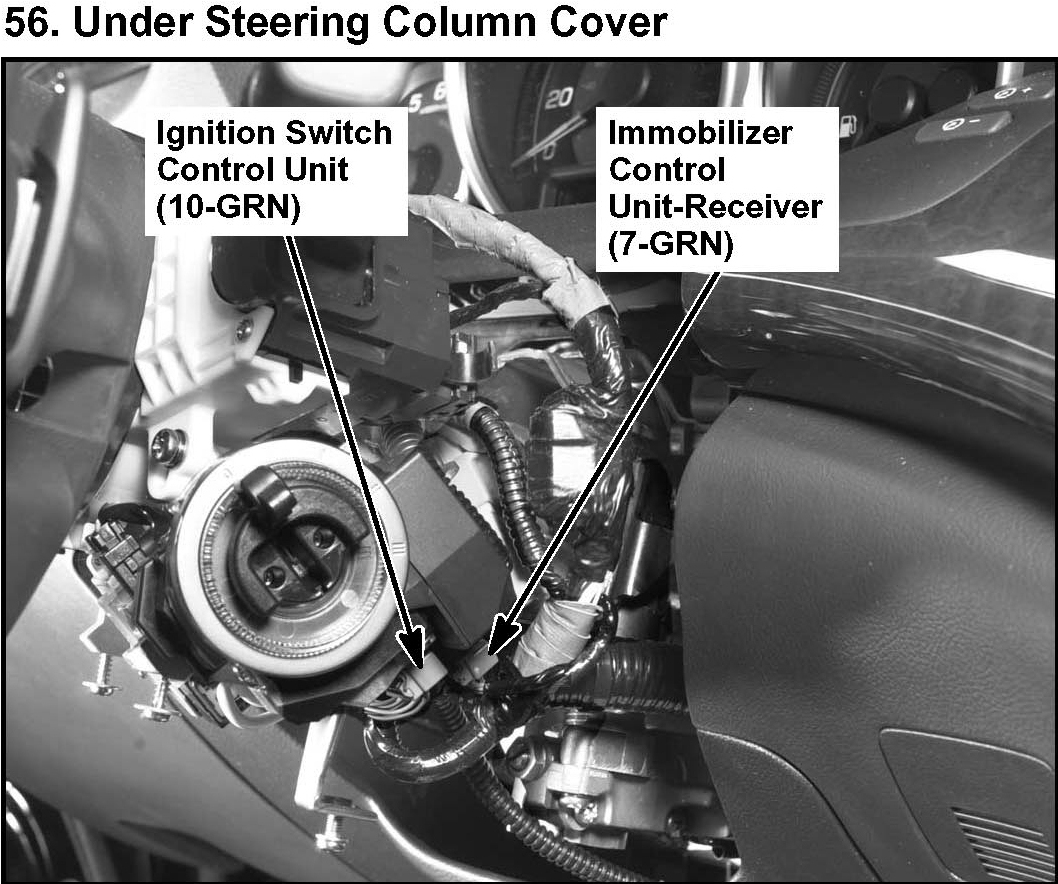

56. Under Steering Column Cover:
