A/C Line Replacement
WARNING:
This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

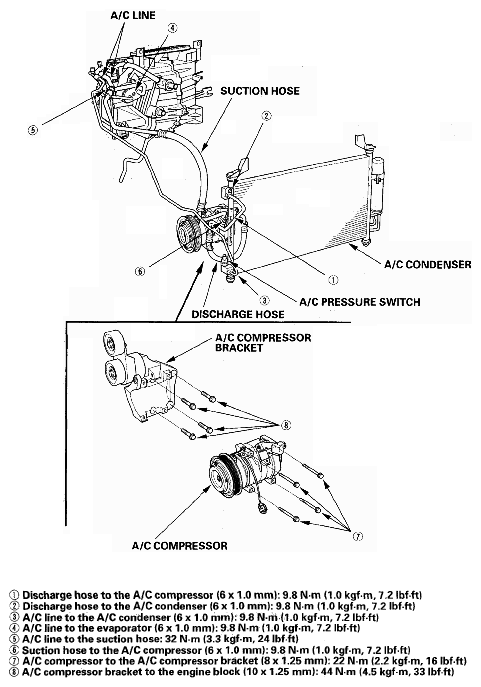

Fig 1: A/C Line Replacement Procedure With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
