Dual Mode Control System

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

All modes (except defroster) can be controlled independently.

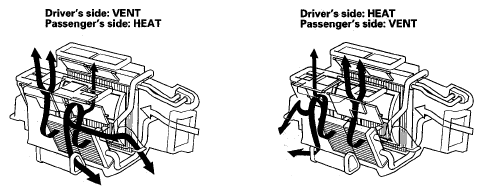

Fig 1: Dual Mode Control System Diagram
G05462384Courtesy of AMERICAN HONDA MOTOR CO., INC.
