HDS Method: Notes

With the ignition switch OFF, connect the HDS to the 16P data link connector (DLC) (A) under the driver's side of the dashboard next to the accelerator pedal.

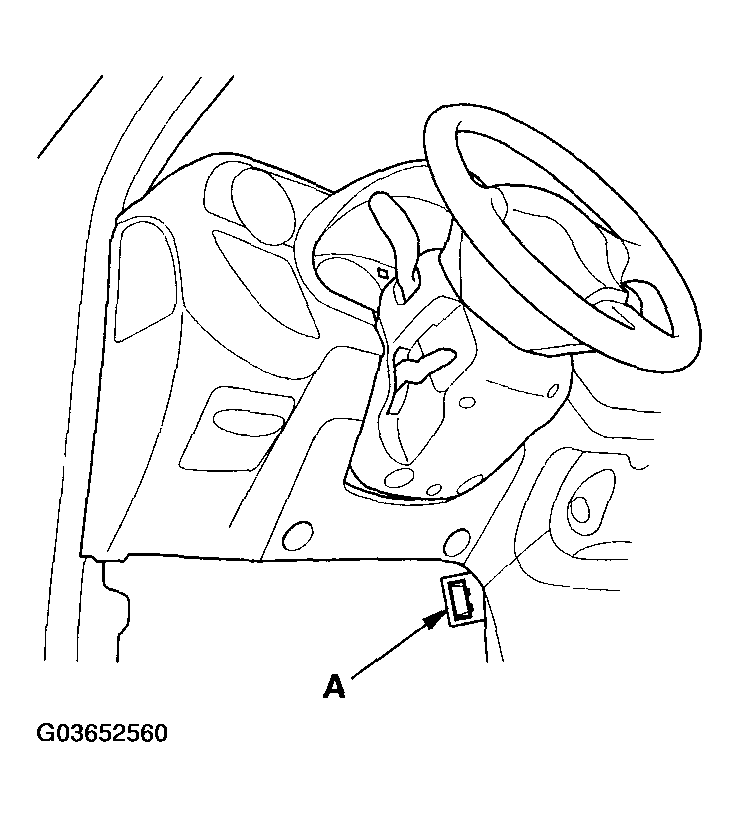

Fig 1: Connecting HDS To 16P Data Link Connector (DLC)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch ON (II), and follow the prompts on the HDS to display the DTC(s) on the screen. After determining the DTC, refer to the DTC TROUBLESHOOTING .
NOTE: See the HDS Help menu for specific instructions.
