Wheel Sensor Replacement: Front

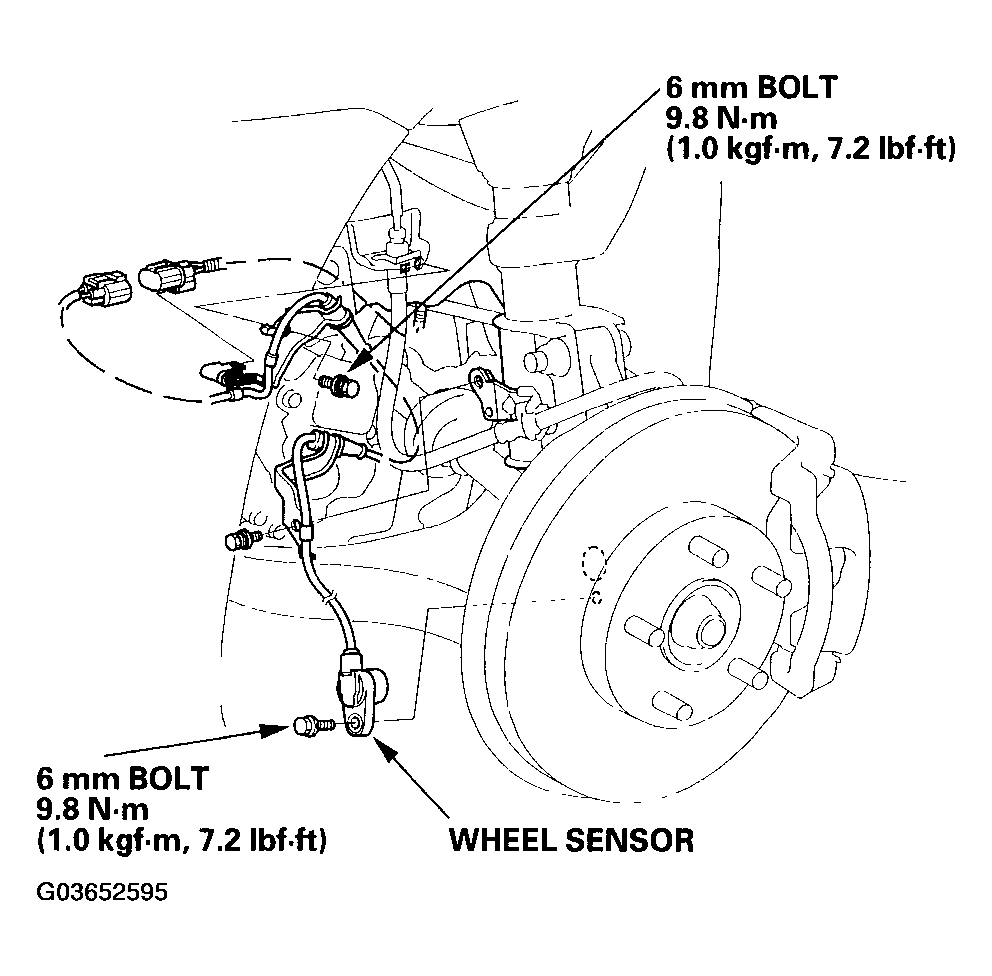

Fig 1: Installing Wheel Sensor Carefully To Avoid Twisting Wires And Torque Specifications (Front)
G03652595Courtesy of AMERICAN HONDA MOTOR CO., INC.
