Component Location Index: Notes

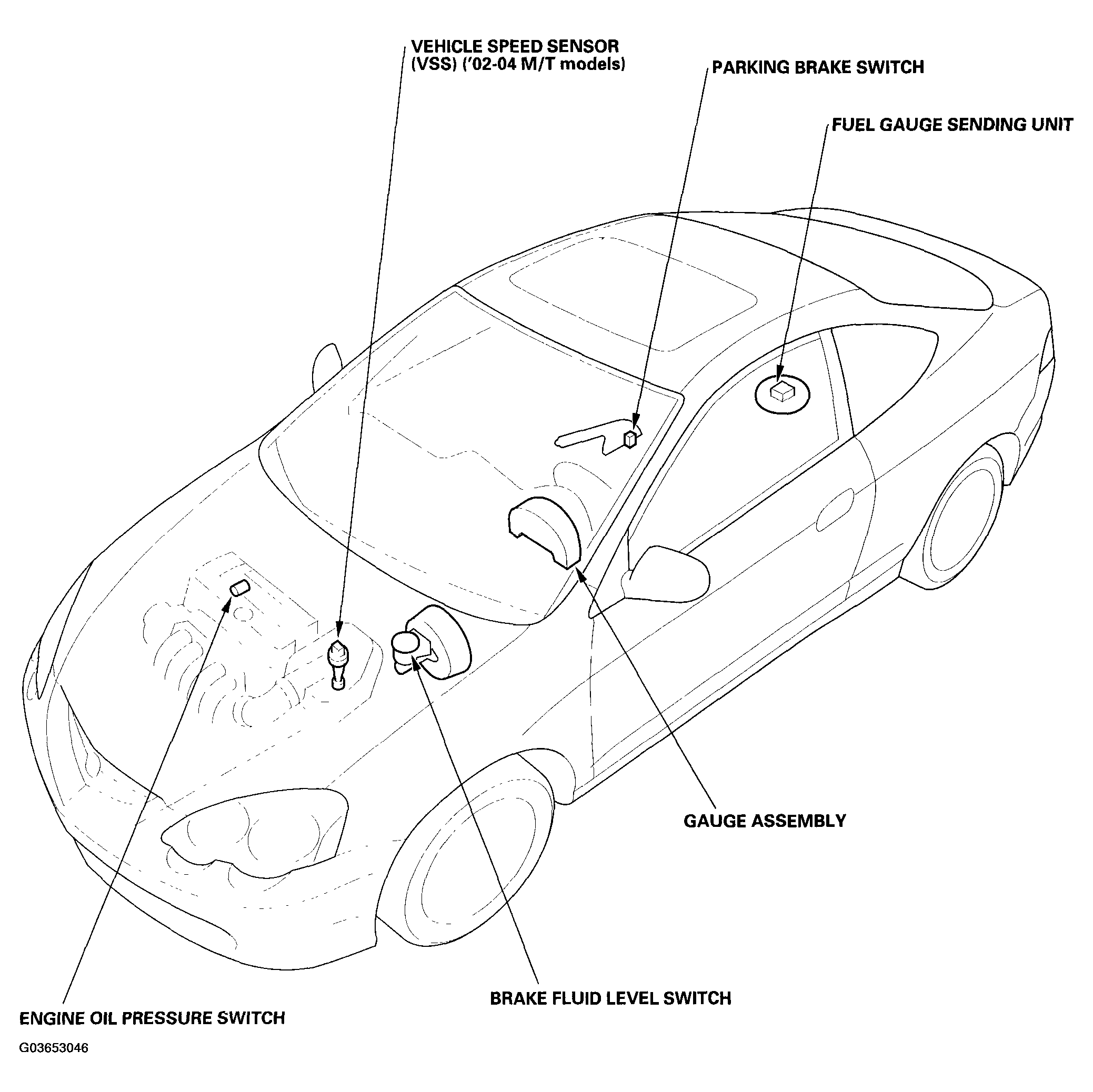

Fig 1: Identifying Components Location (1 Of 2)

G03653046

Courtesy of AMERICAN HONDA MOTOR CO., INC.
