Pinout Values and Diagnostic Parameters

PCM Inputs and Outputs

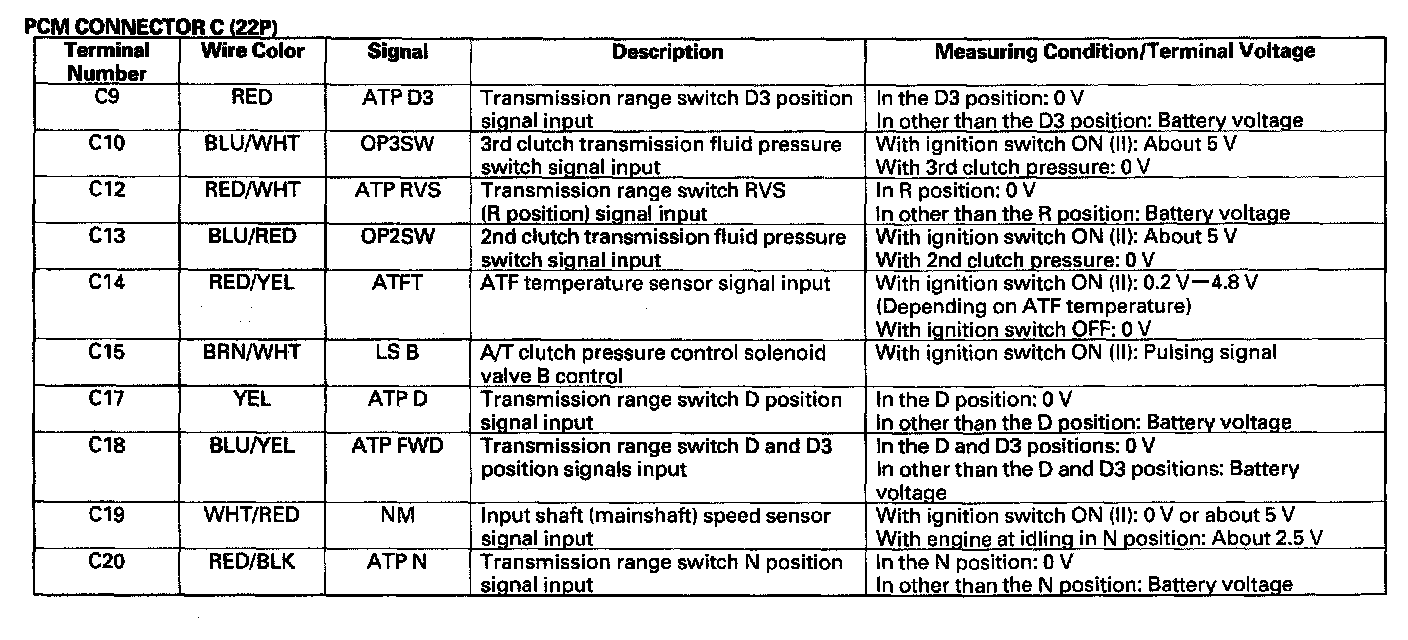

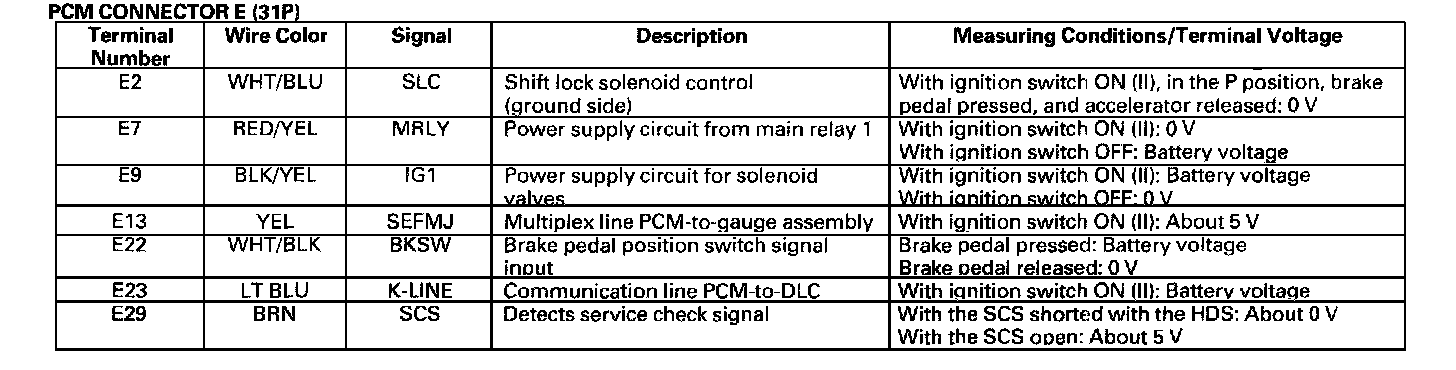

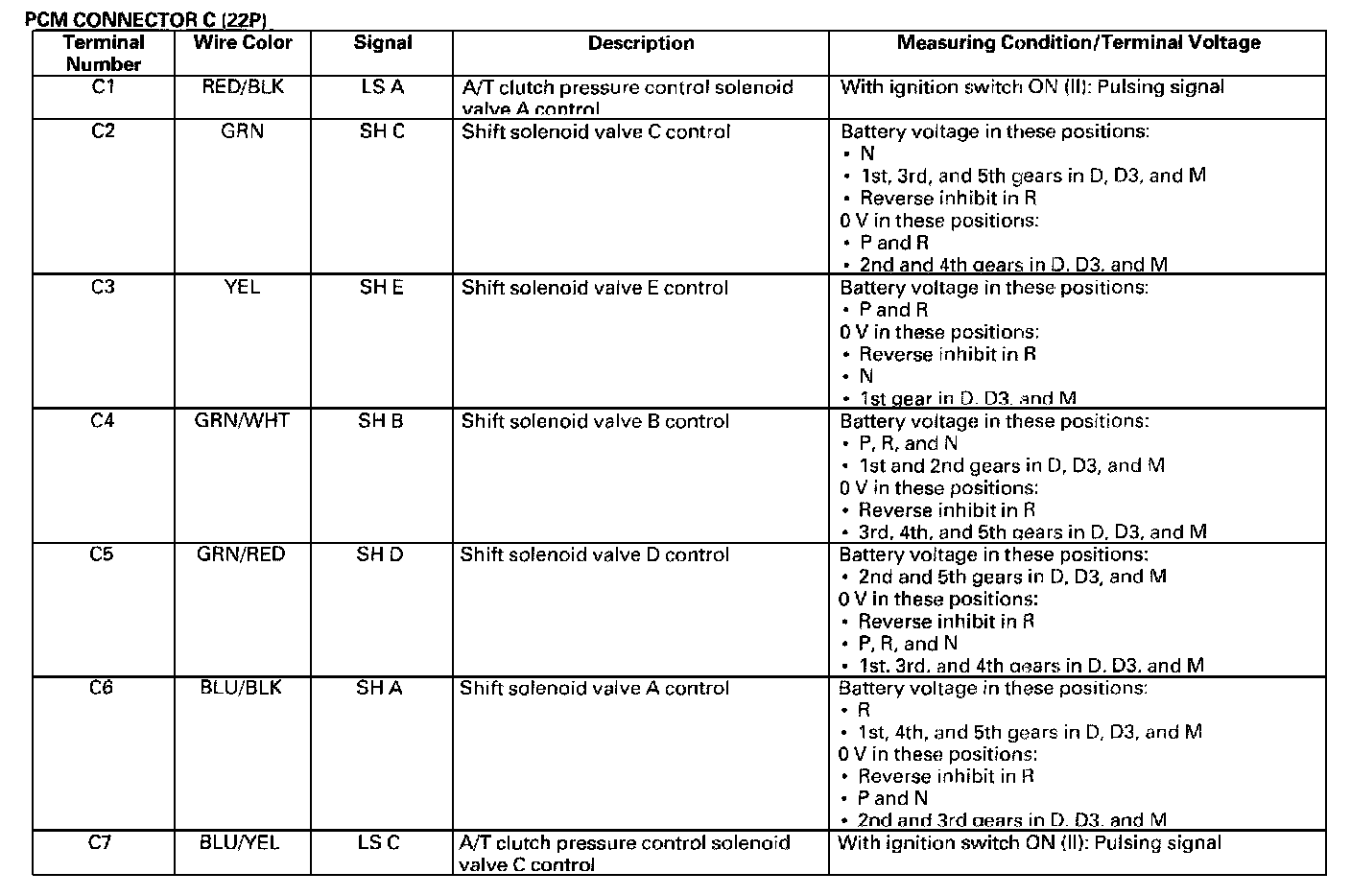

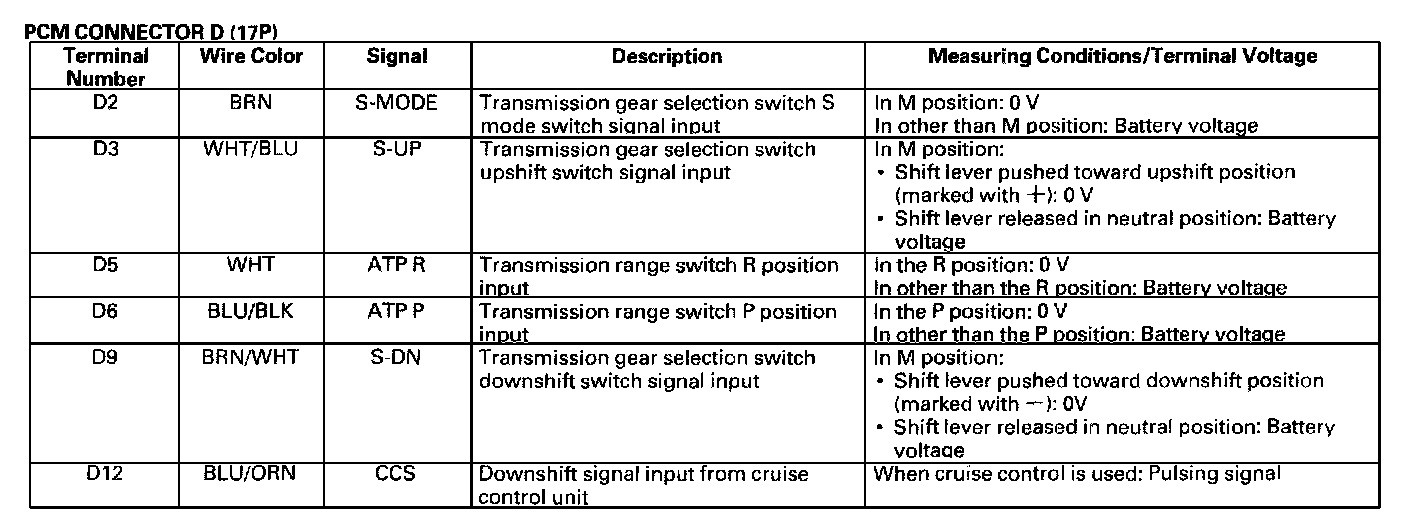

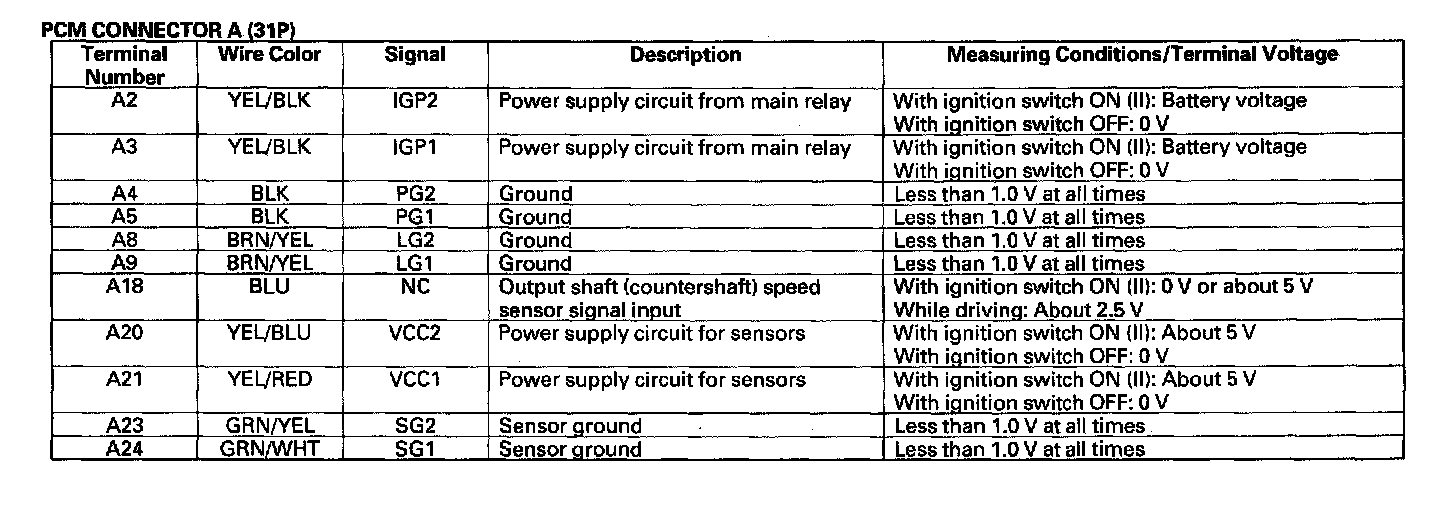

The PCM terminal voltage and measuring conditions are shown for the connector terminals that are related to the A/T control system. The other terminal voltage and measuring conditions are described in Fuel and Emission.
