Electronic Brake Control Module: Testing and Inspection

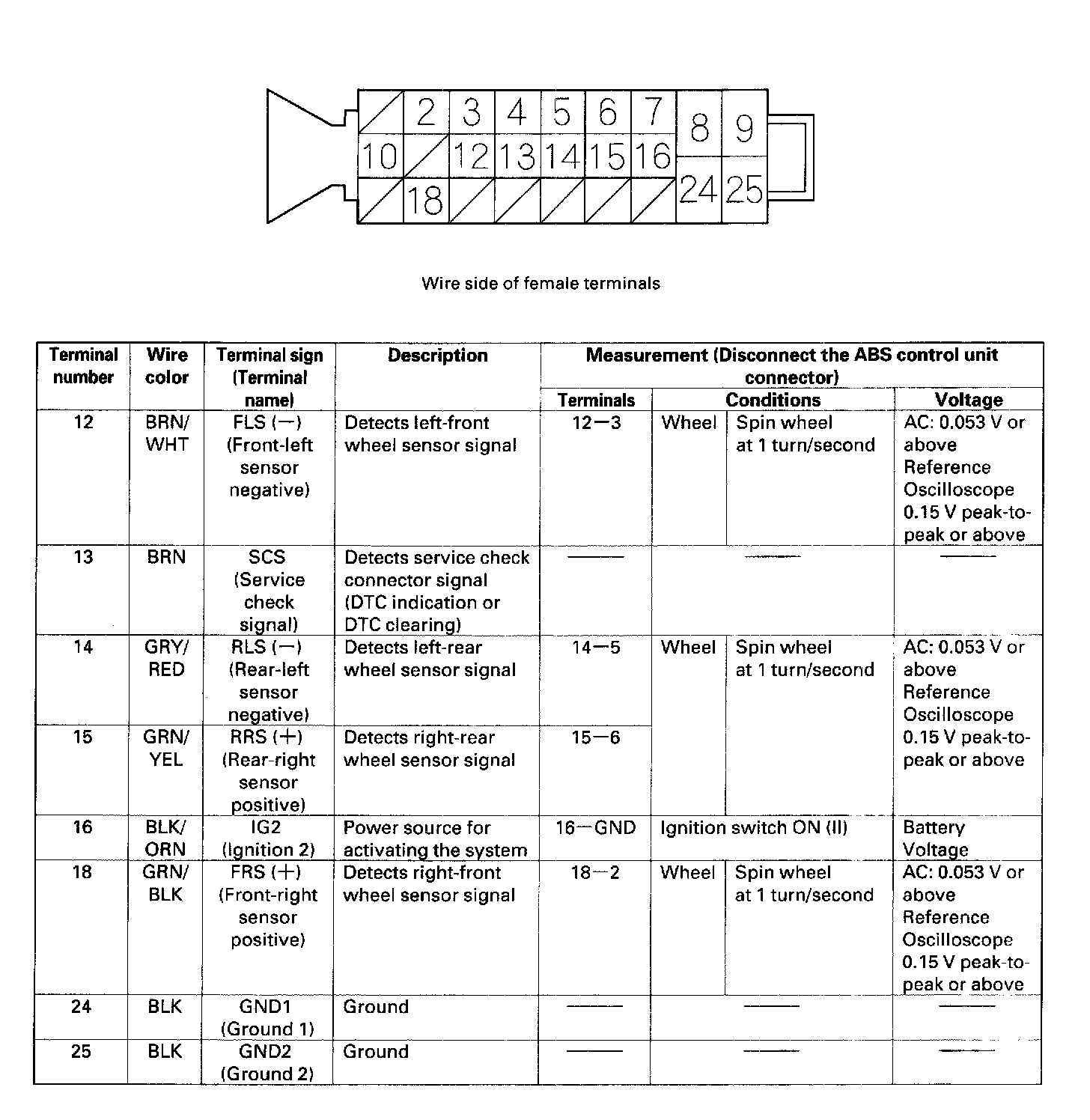

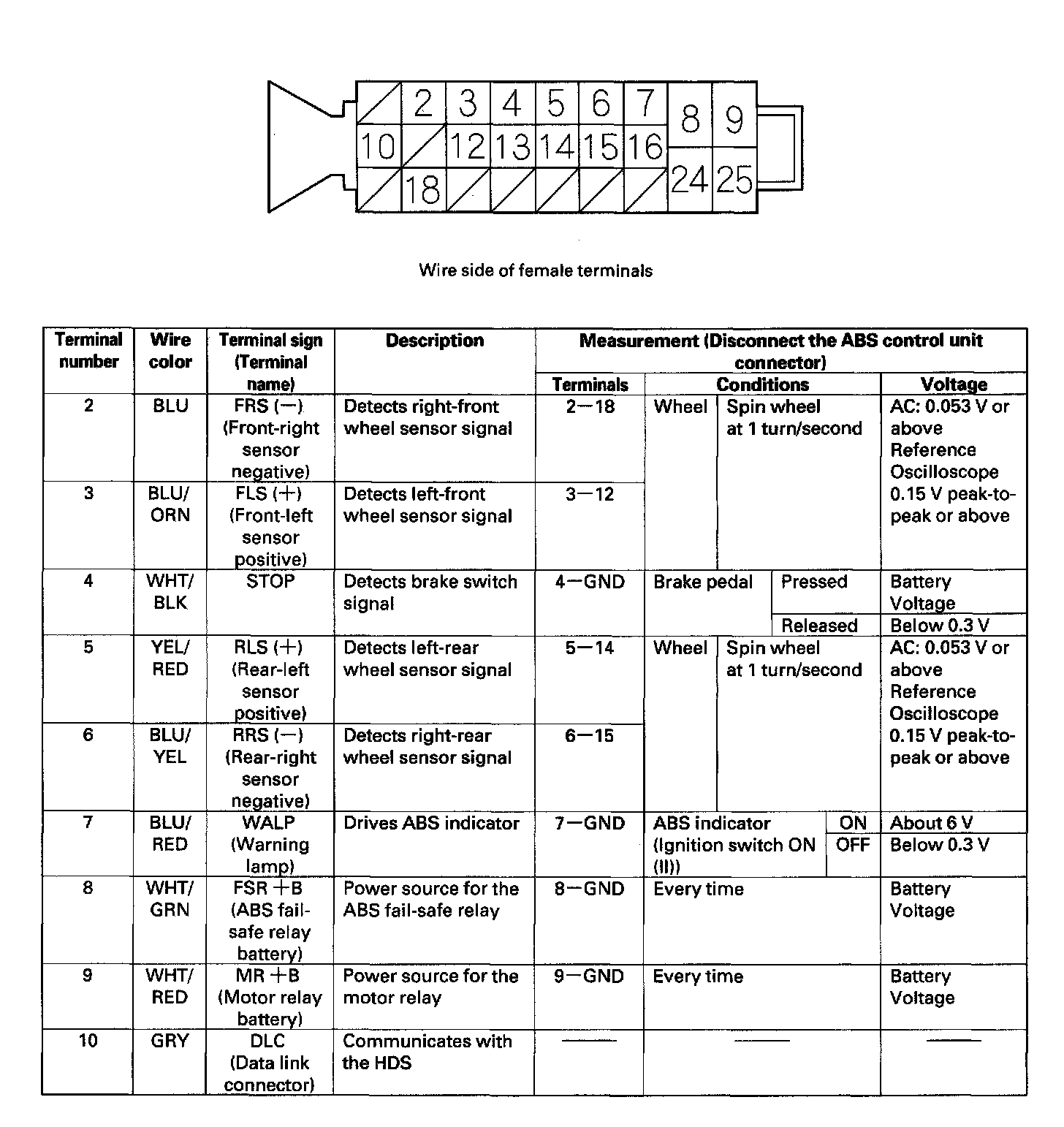

ABS Control Unit Inputs and Outputs for 25P Connector
