2006 Model

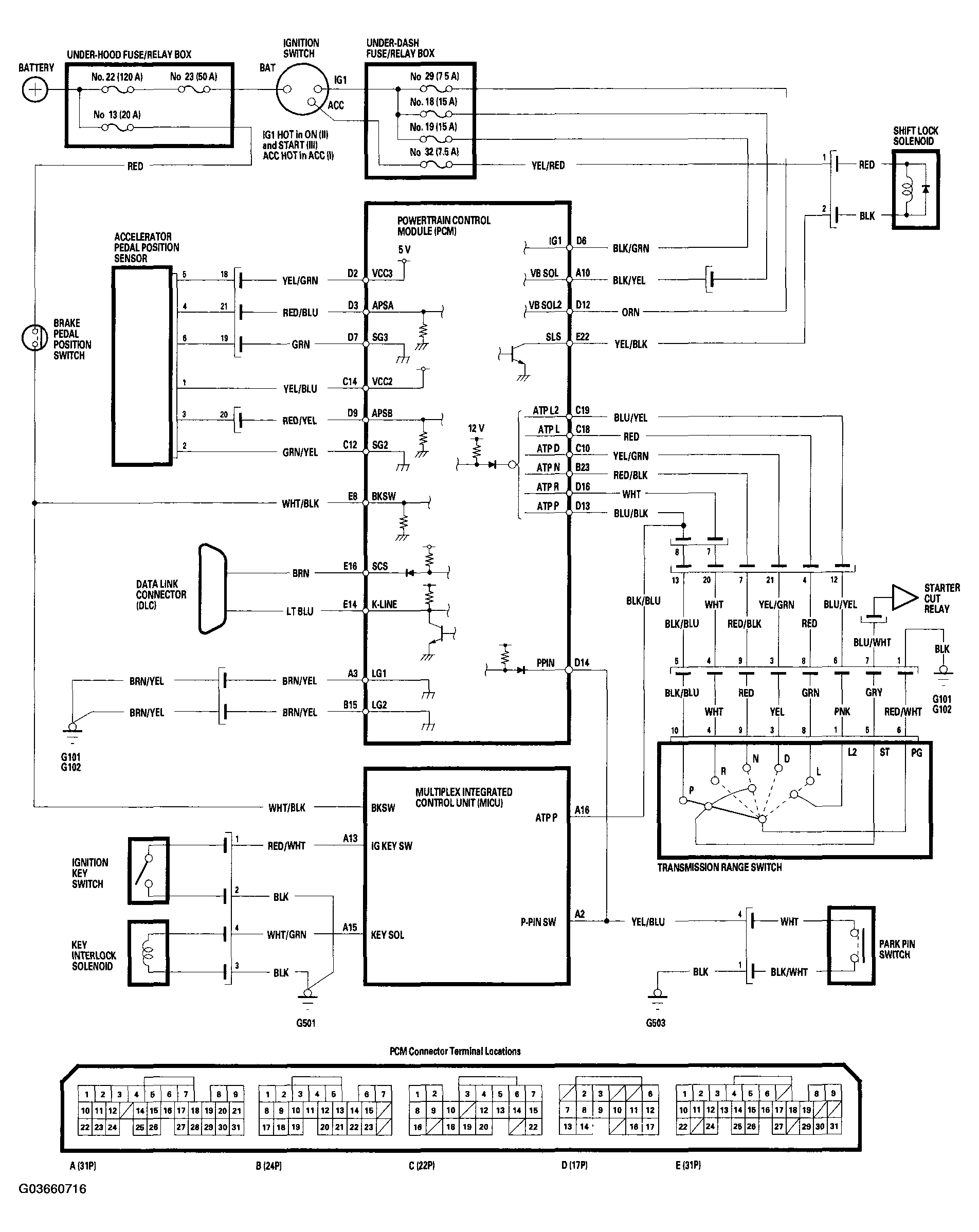

Fig 1: A/T Interlock System - Circuit Diagram (2006 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
