Under-Dash Fuse/Relay Box

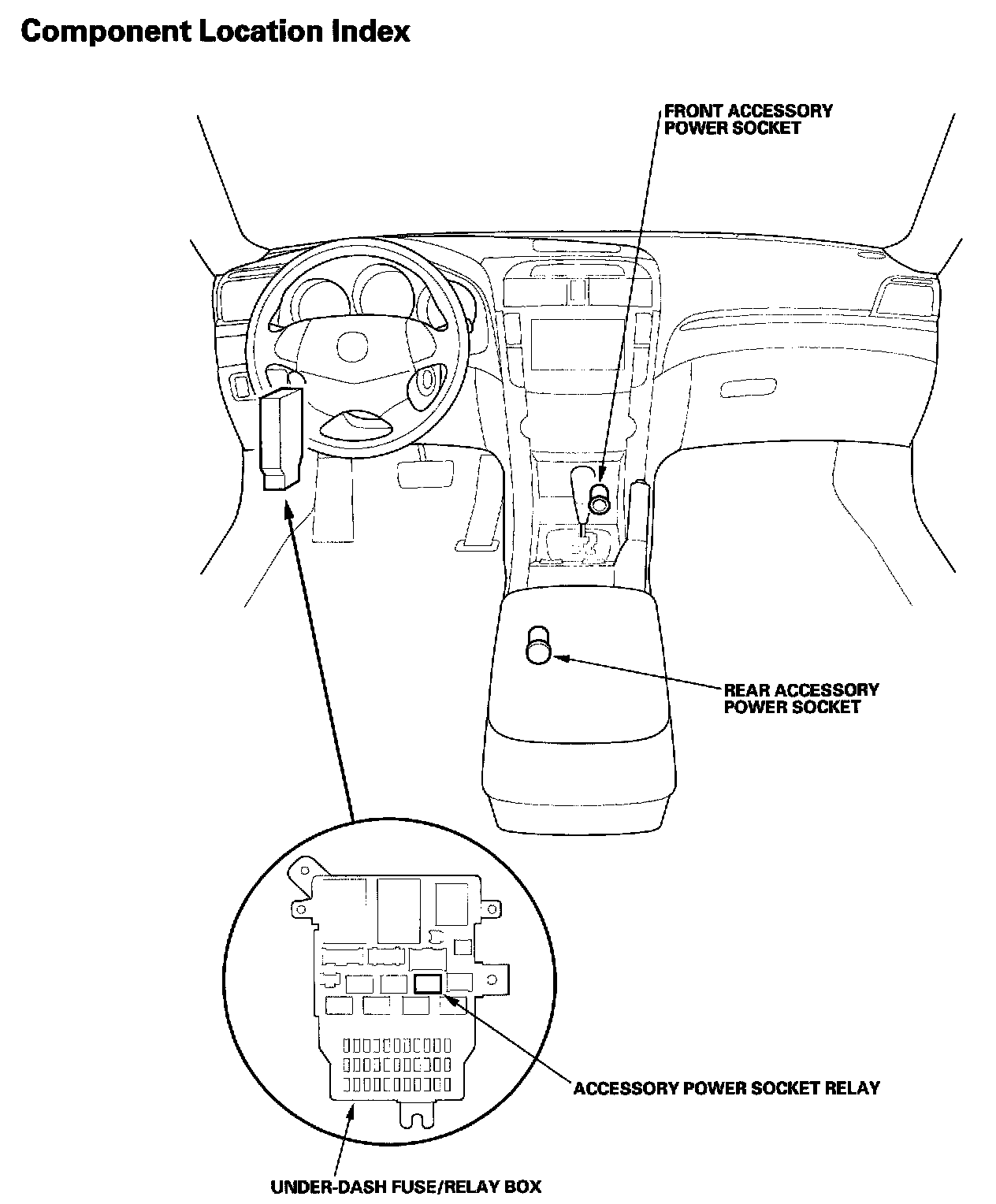

Accessory Power Sockets - Component Location Index:



Power Windows - Component Location Index:

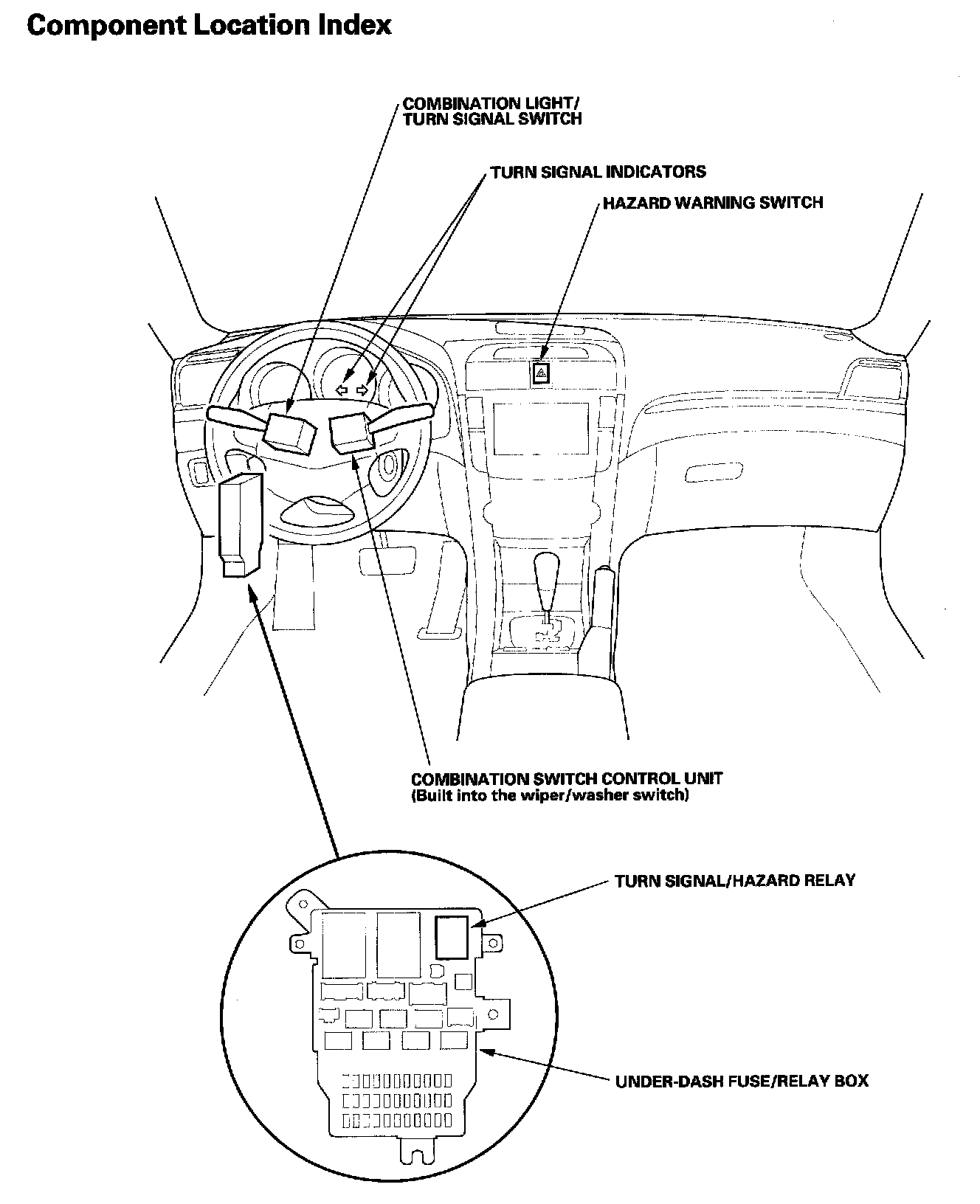

Turn Signal/Hazard Flasher - Component Location Index:



Relay And Control Unit Locations - Dashboard:



Starting System - Component Location Index:



Ignition System - Component Location Index:
