July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Fuse Block

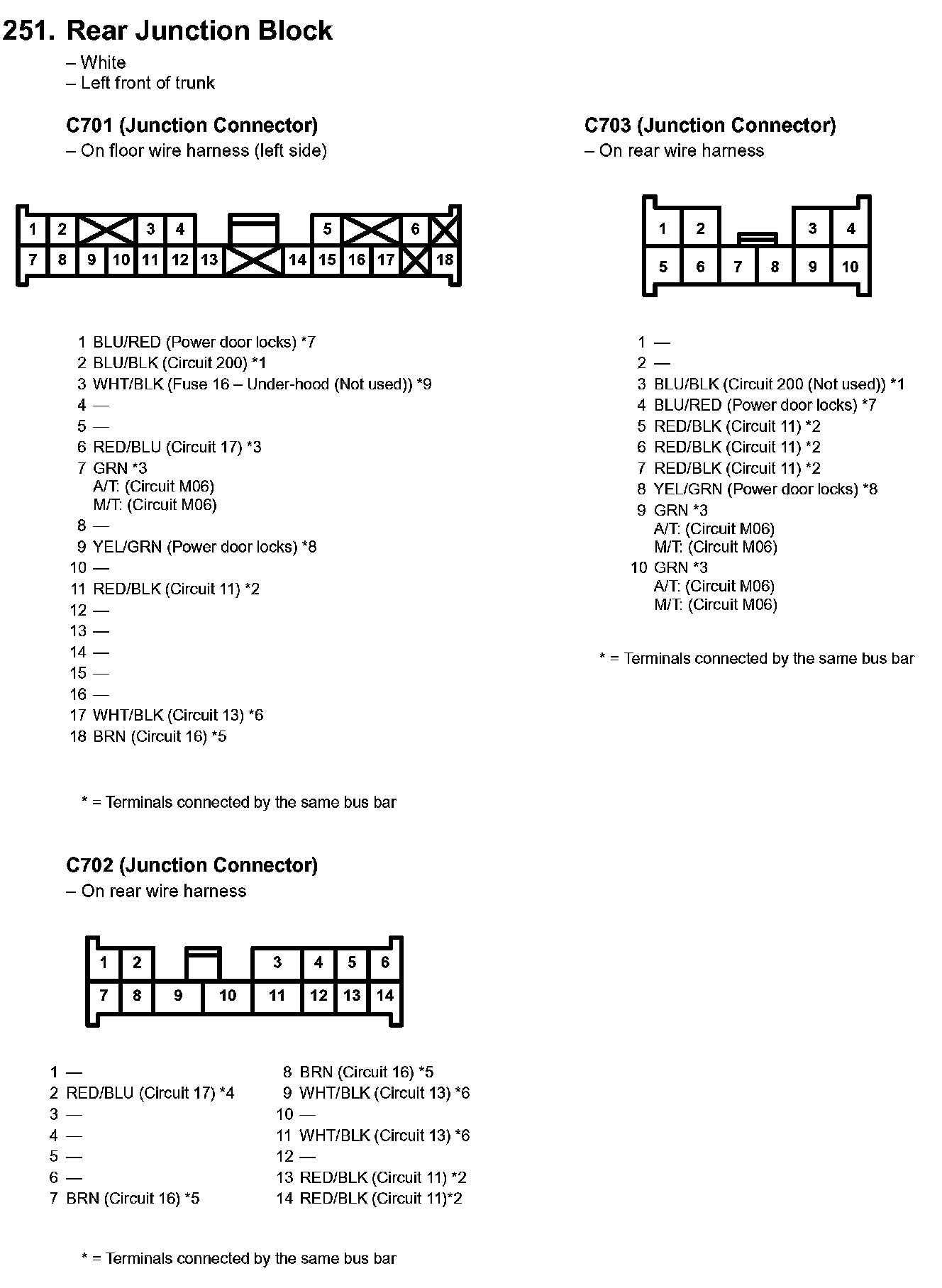

251. Rear Junction Block:

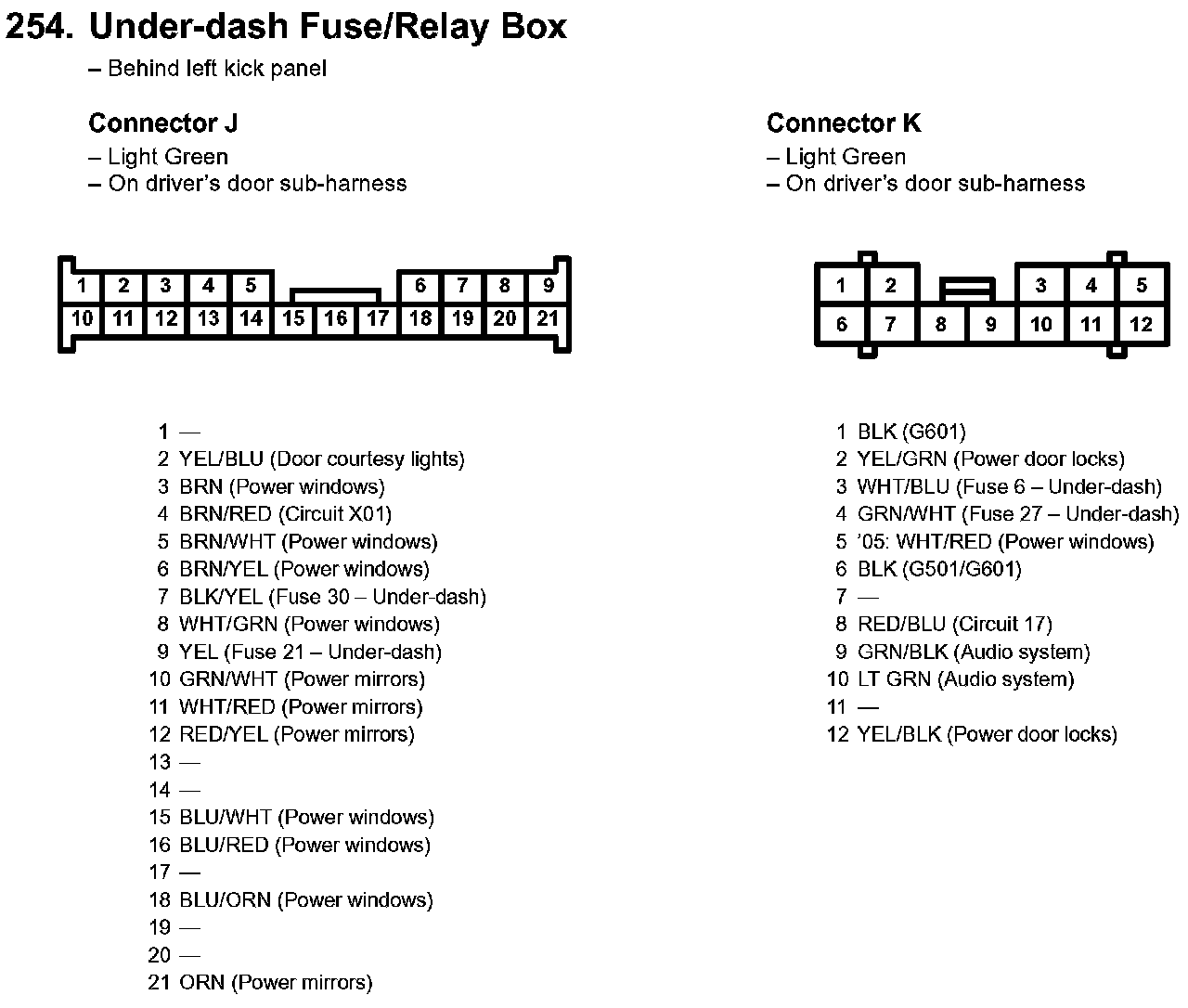

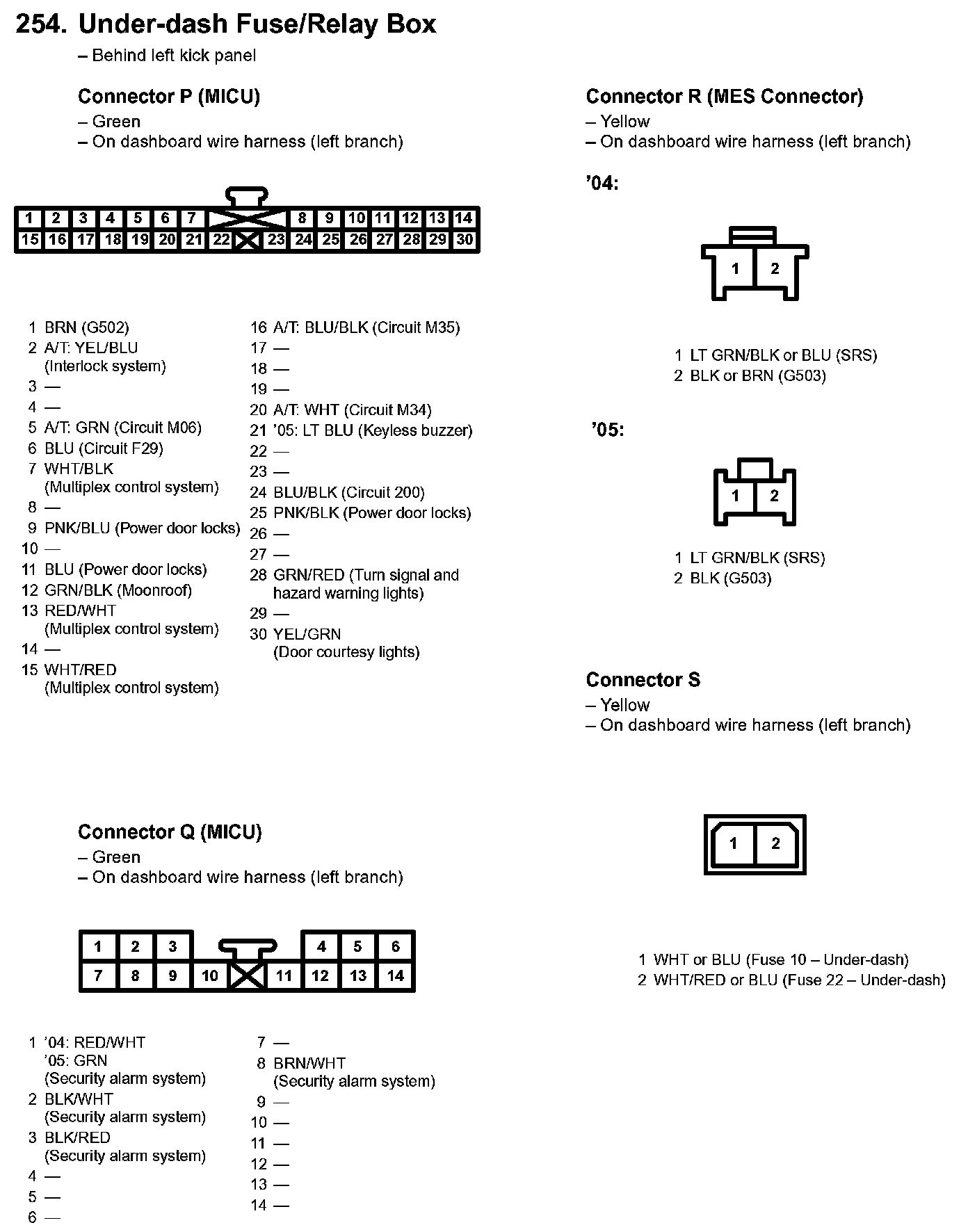

254. Under-Dash Fuse/Relay Box Part 1:

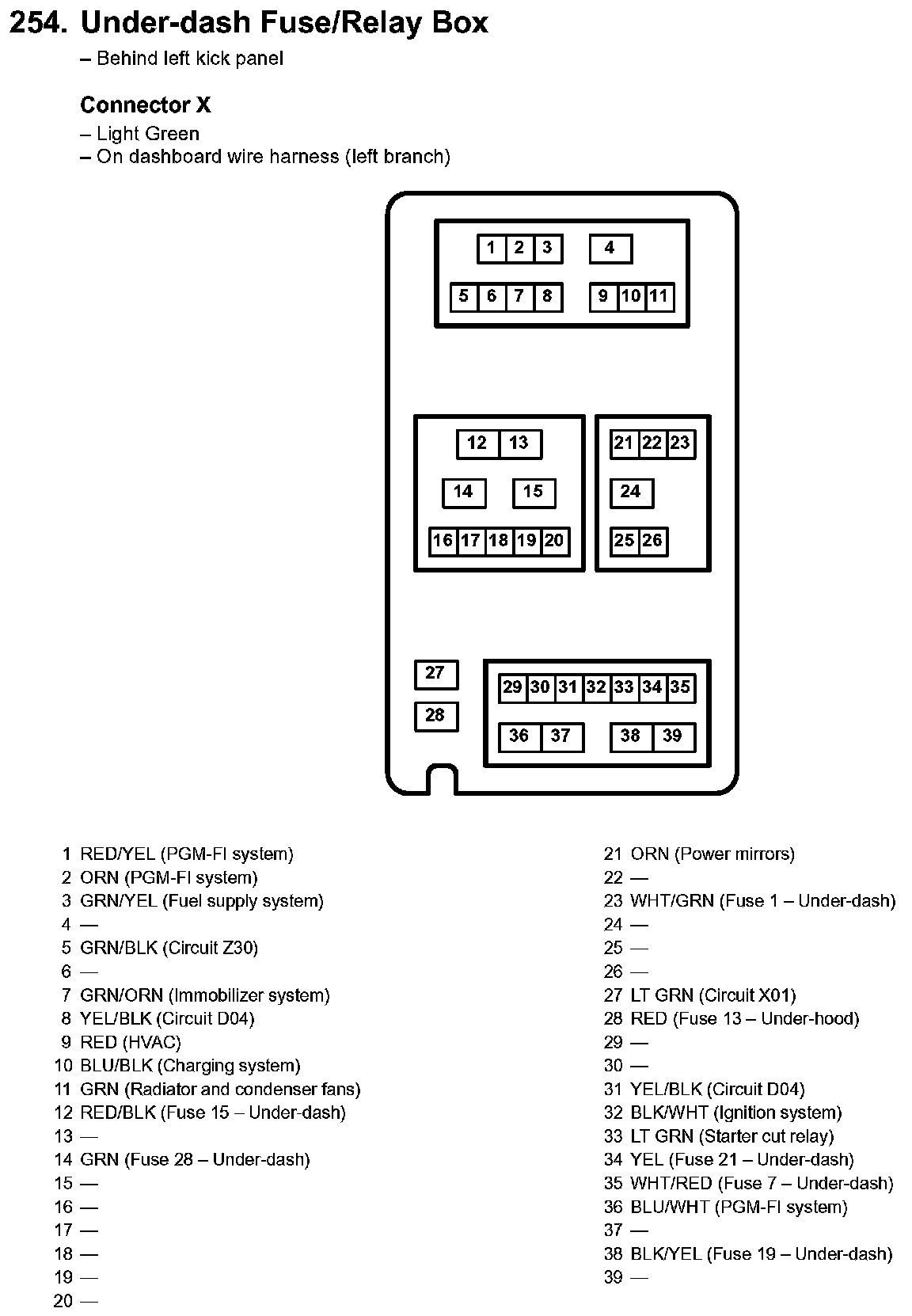

254. Under-dash Fuse/Relay Box Part 2:

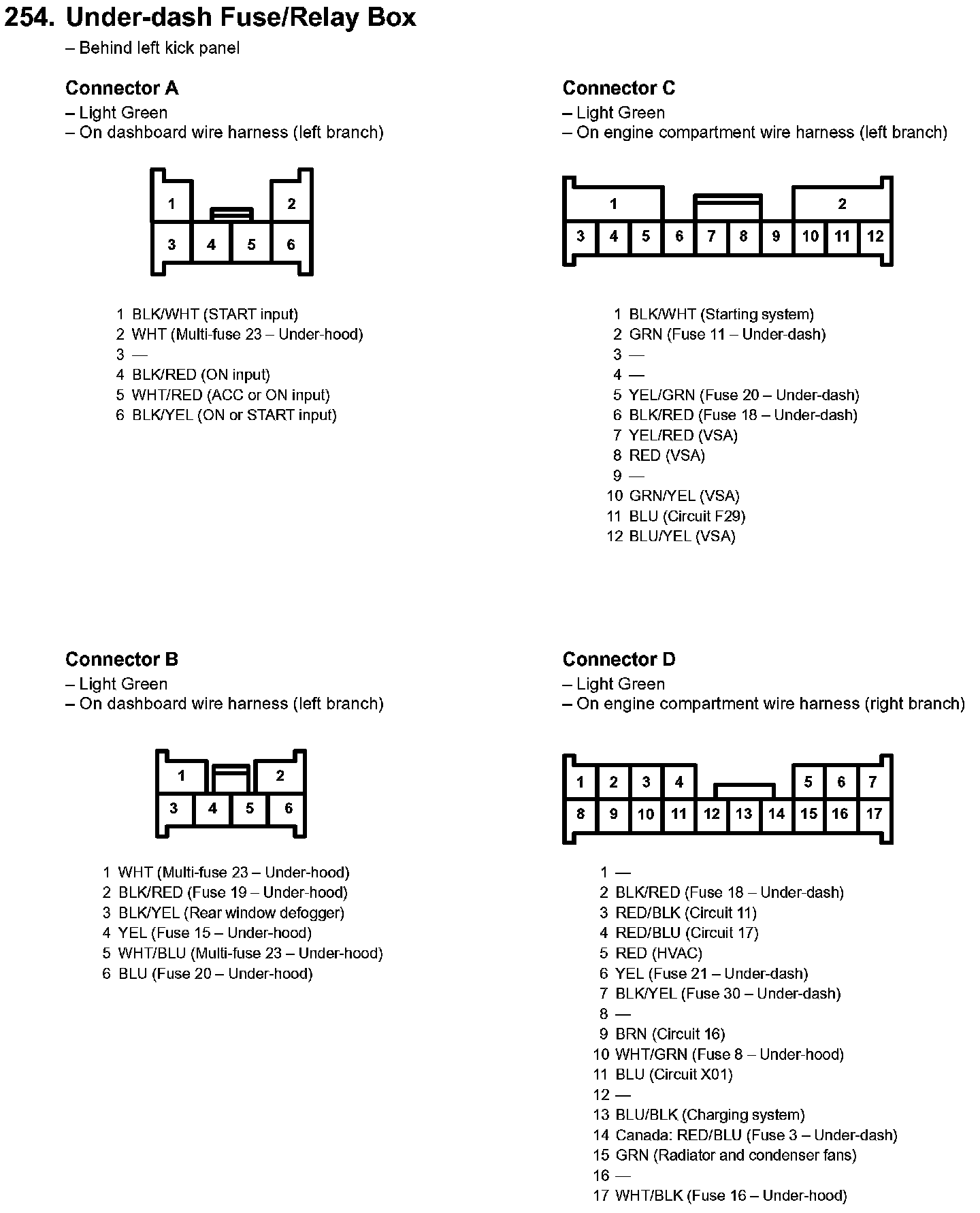

254. Under-dash Fuse/Relay Box Part 3:

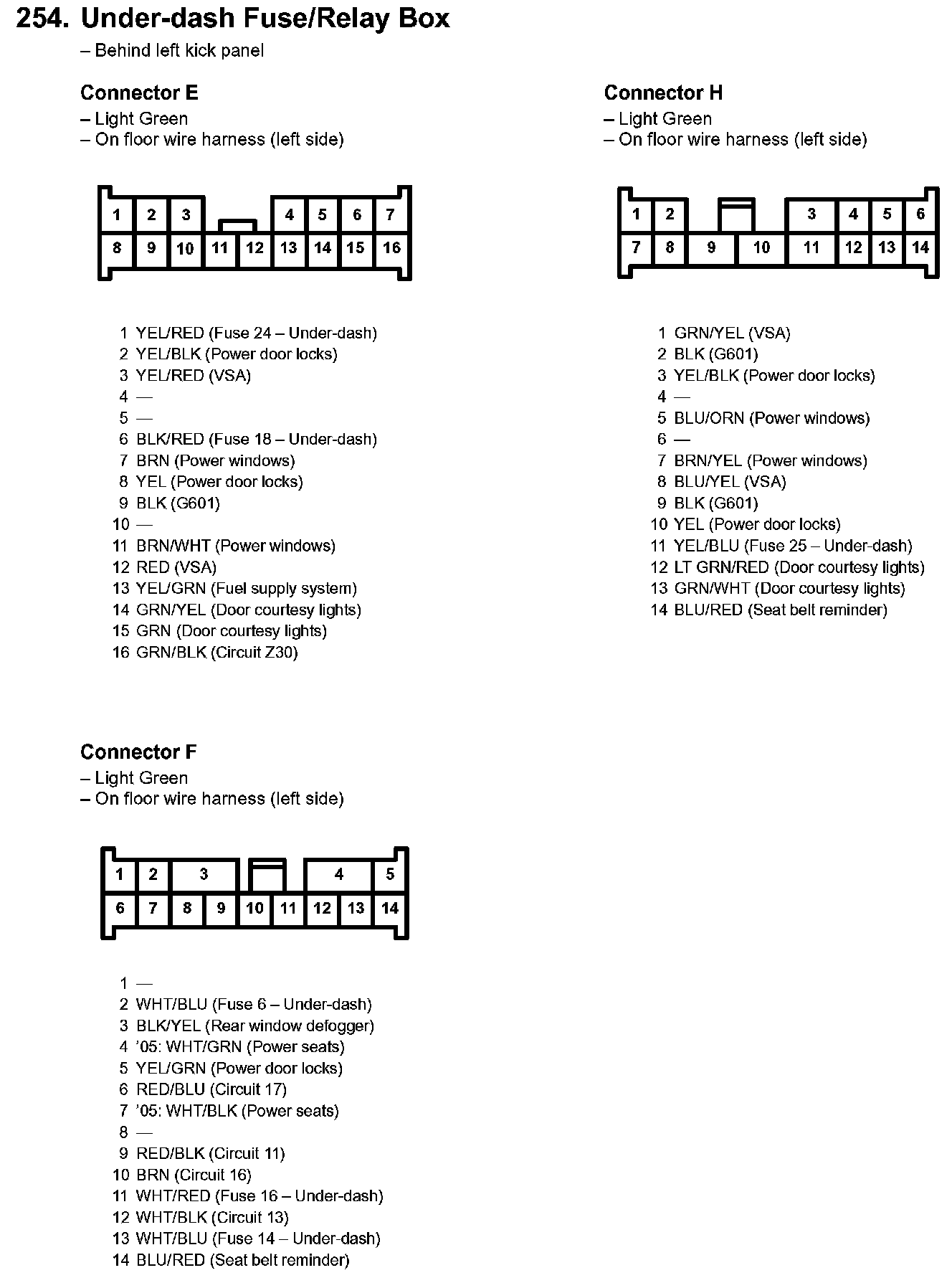

254. Under-dash Fuse/Relay Box Part 4:

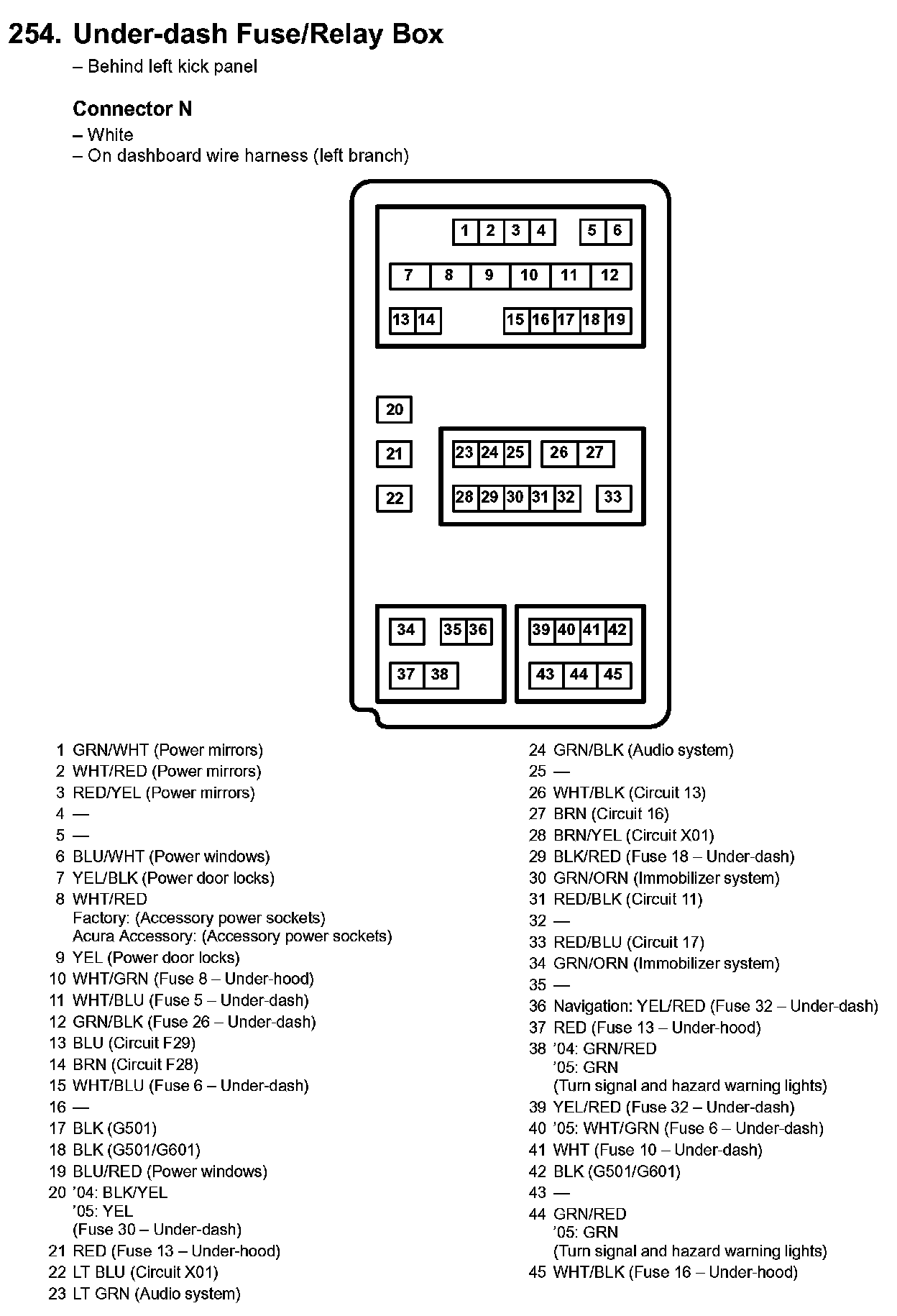

254. Under-dash Fuse/Relay Box Part 5:

254. Under-dash Fuse/Relay Box Part 6:

254. Under-dash Fuse/Relay Box Part 7:

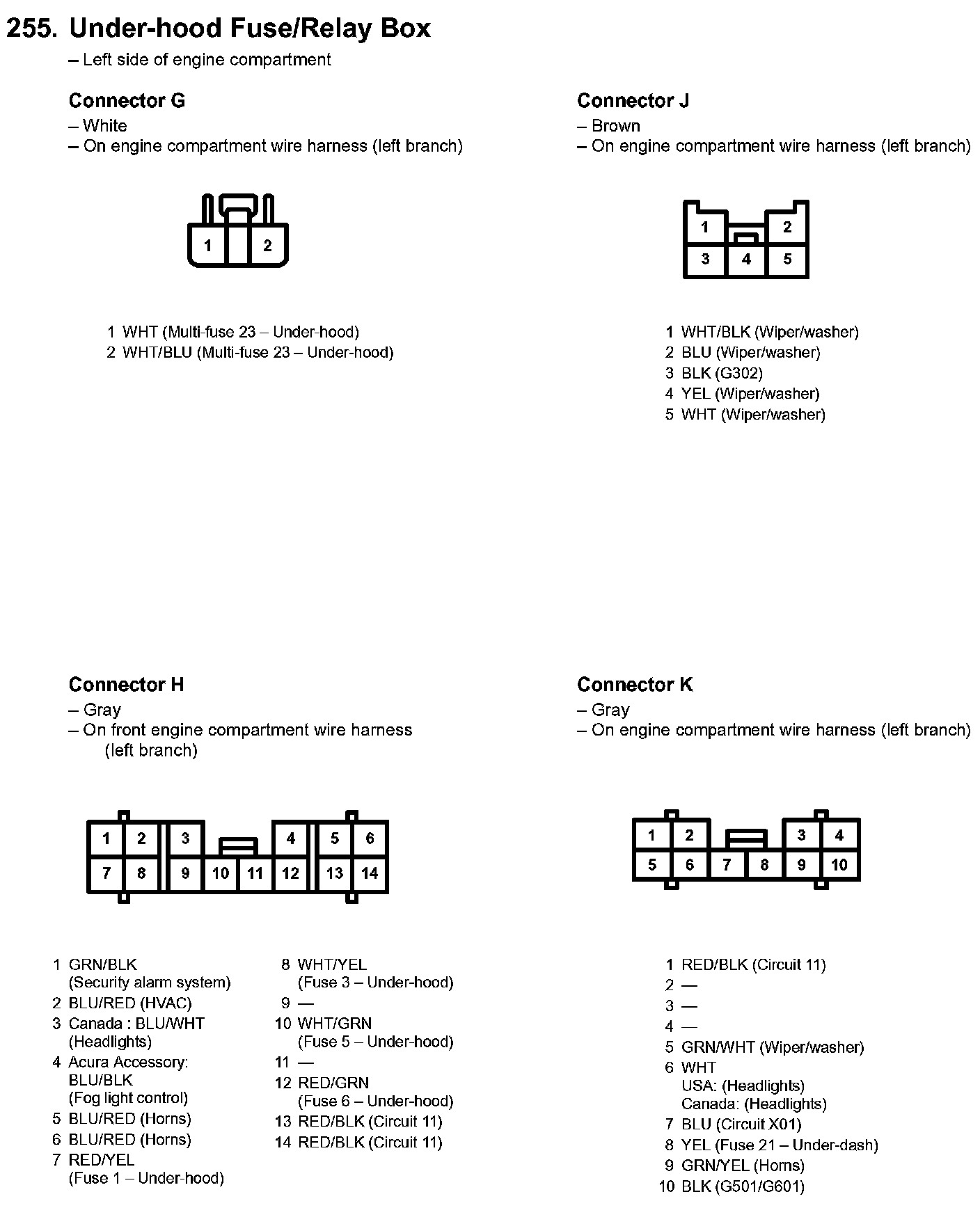

255. Under-hood Fuse/Relay Box Part 1:

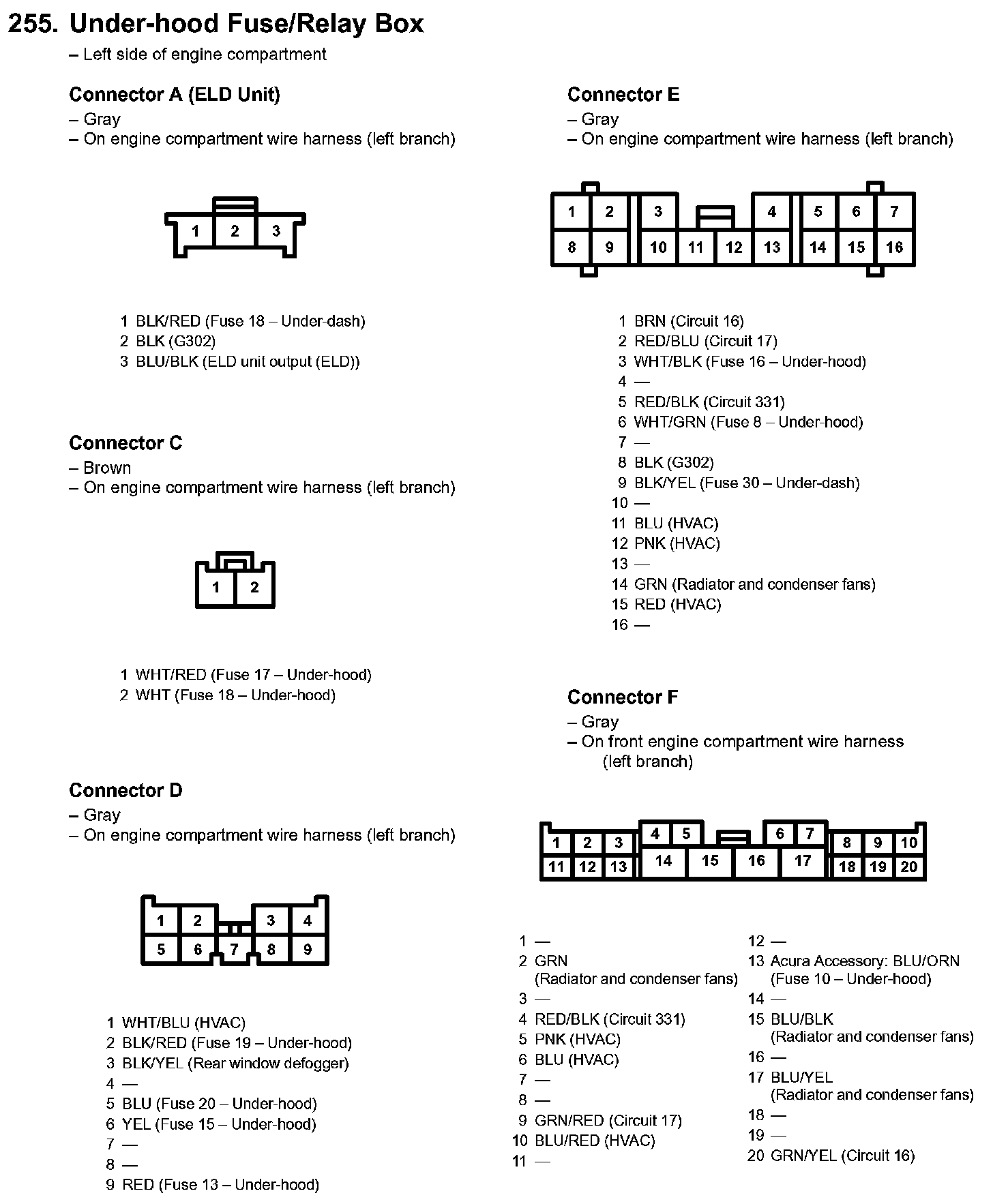

255. Under-hood Fuse/Relay Box Part 2:
