Inputs and Outputs For Connectors

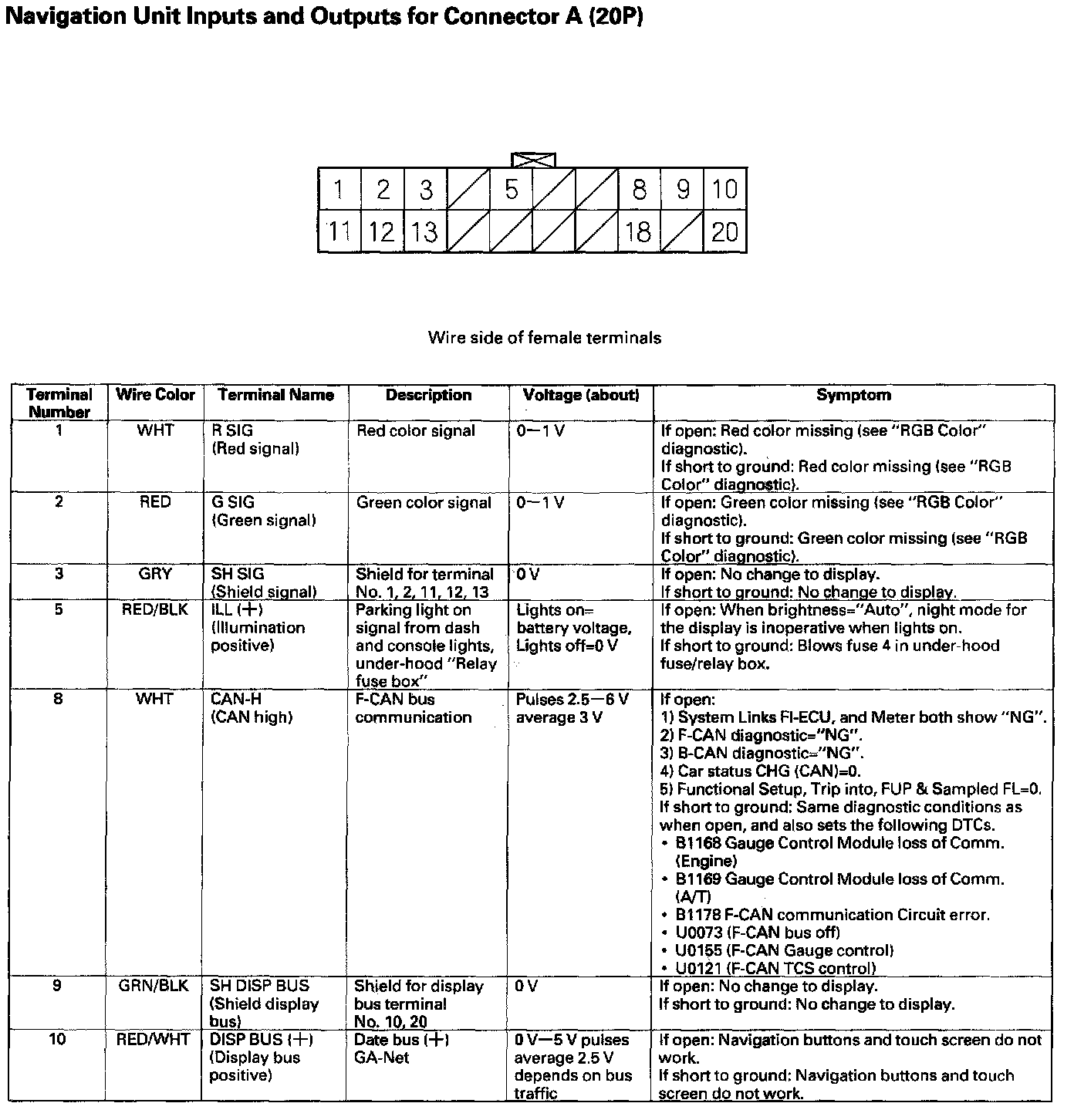

Navigation Unit Inputs And Outputs For Connector A (20P) Part 1:

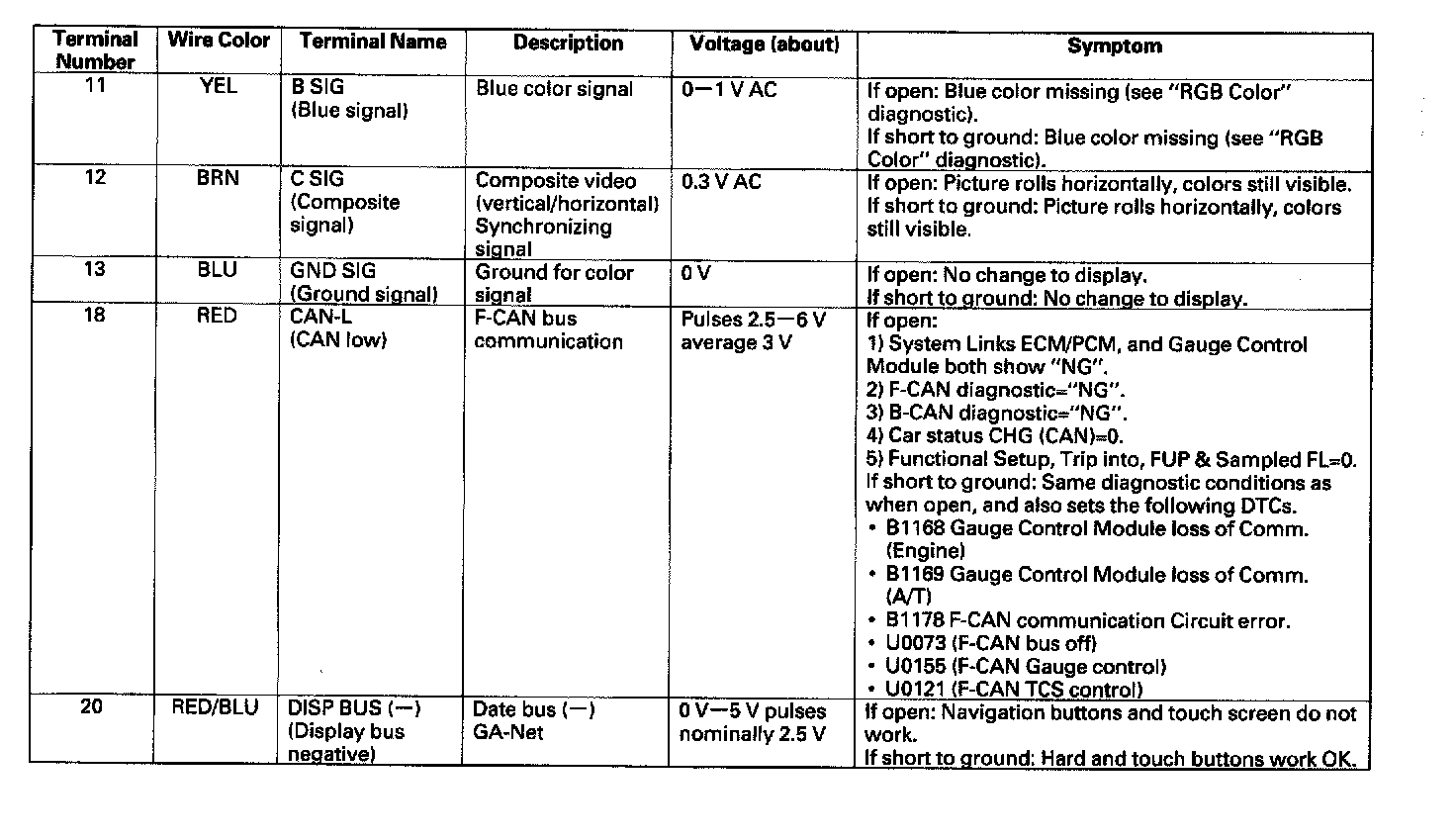

Navigation Unit Inputs And Outputs For Connector A (20P) Part 2:

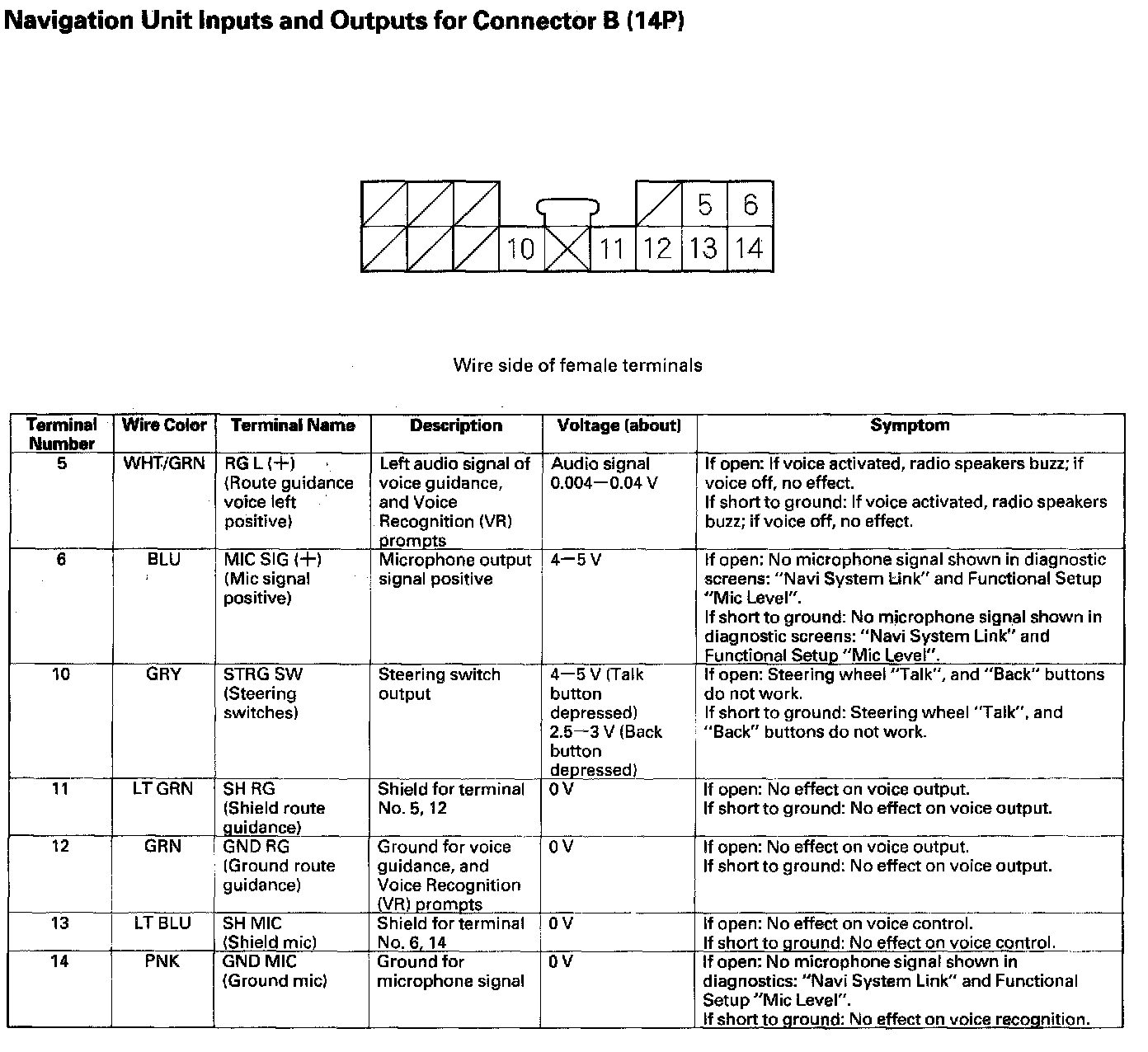

Navigation Unit Inputs And Outputs For Connector B (14P):

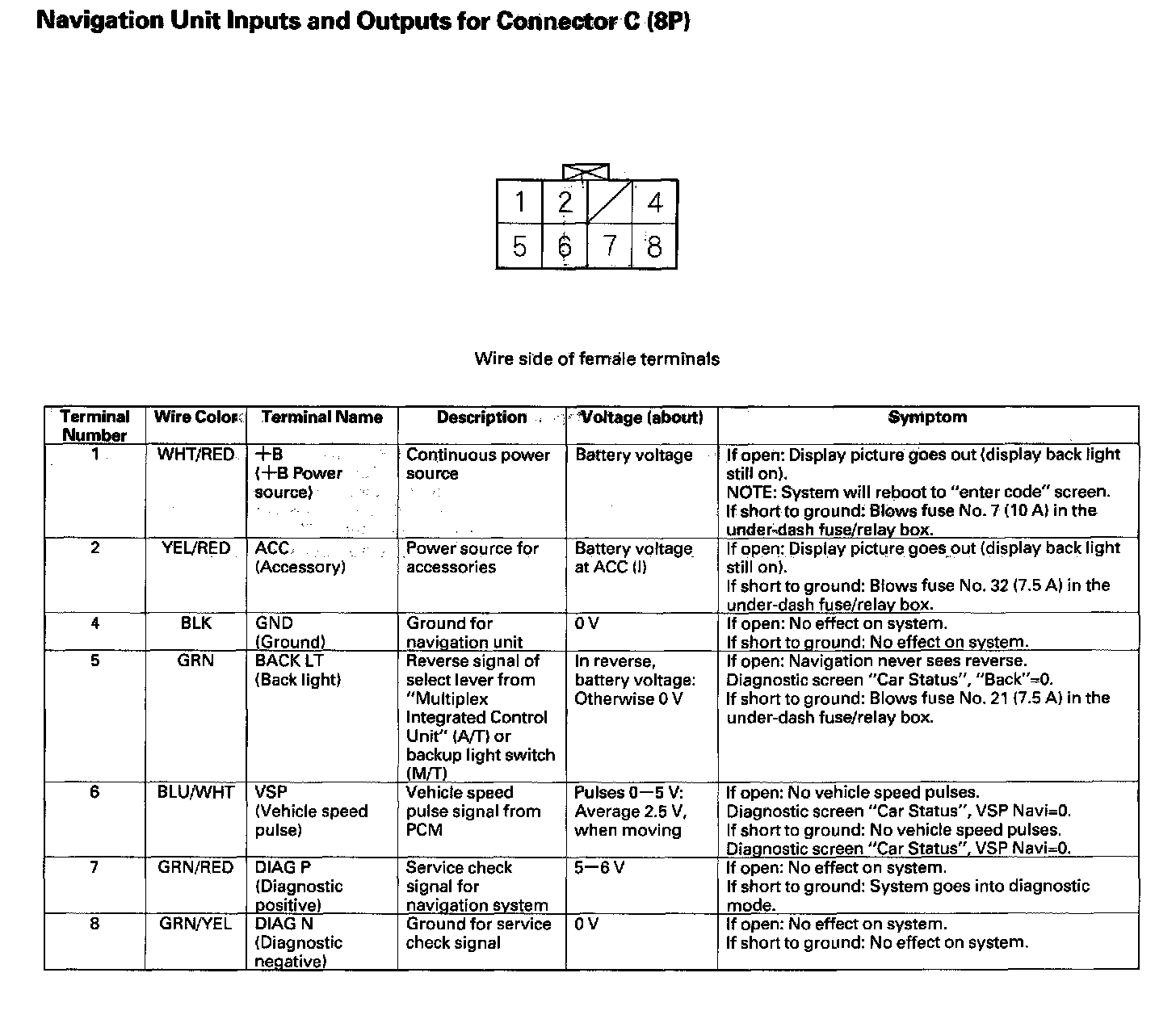

Navigation Unit Inputs And Outputs For Connector C (8P):



Navigation Unit Inputs And Outputs For Connector E (2P):

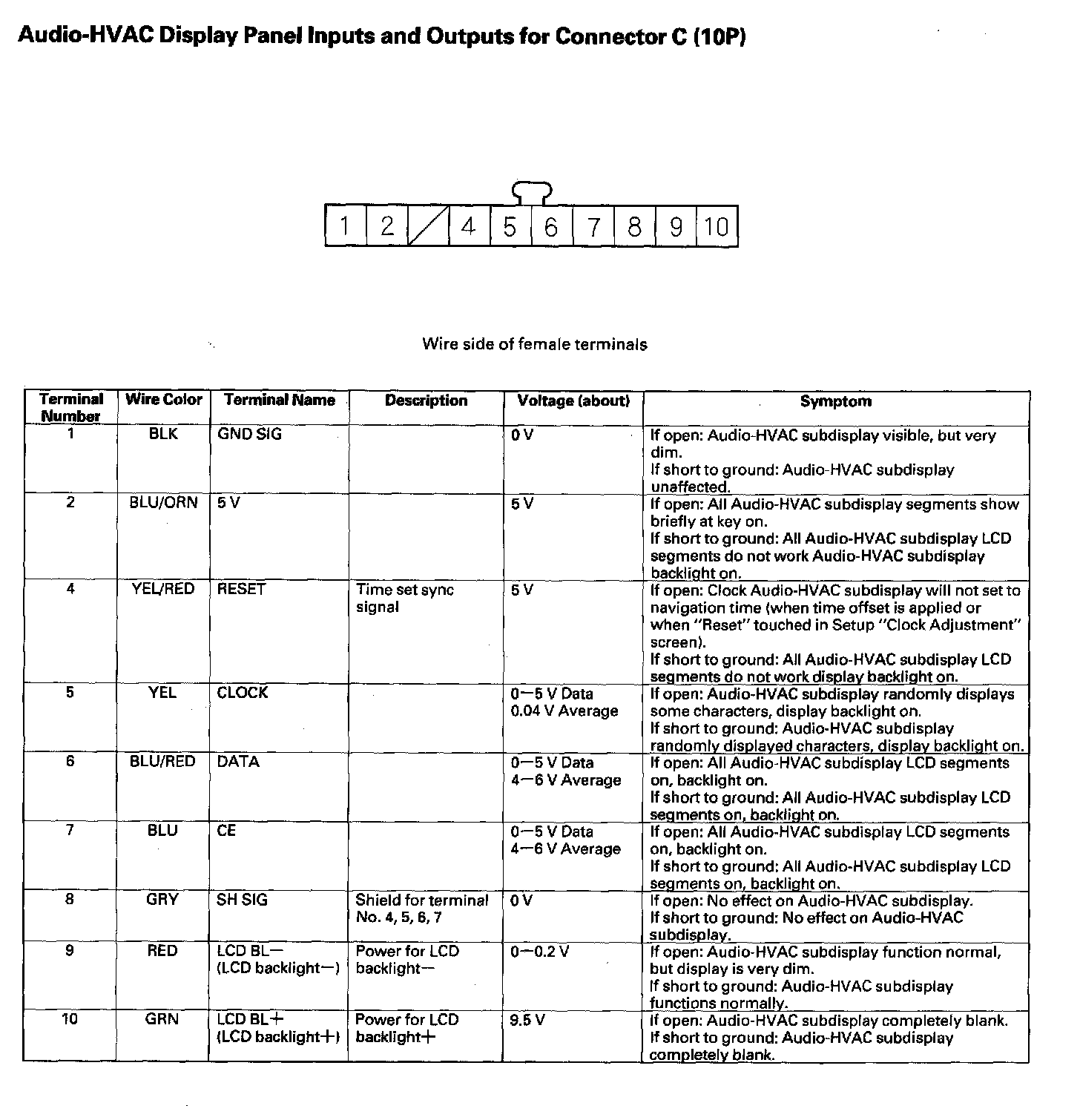

Audio-HVAC Display Panel Inputs And Outputs For Connector C (10P):

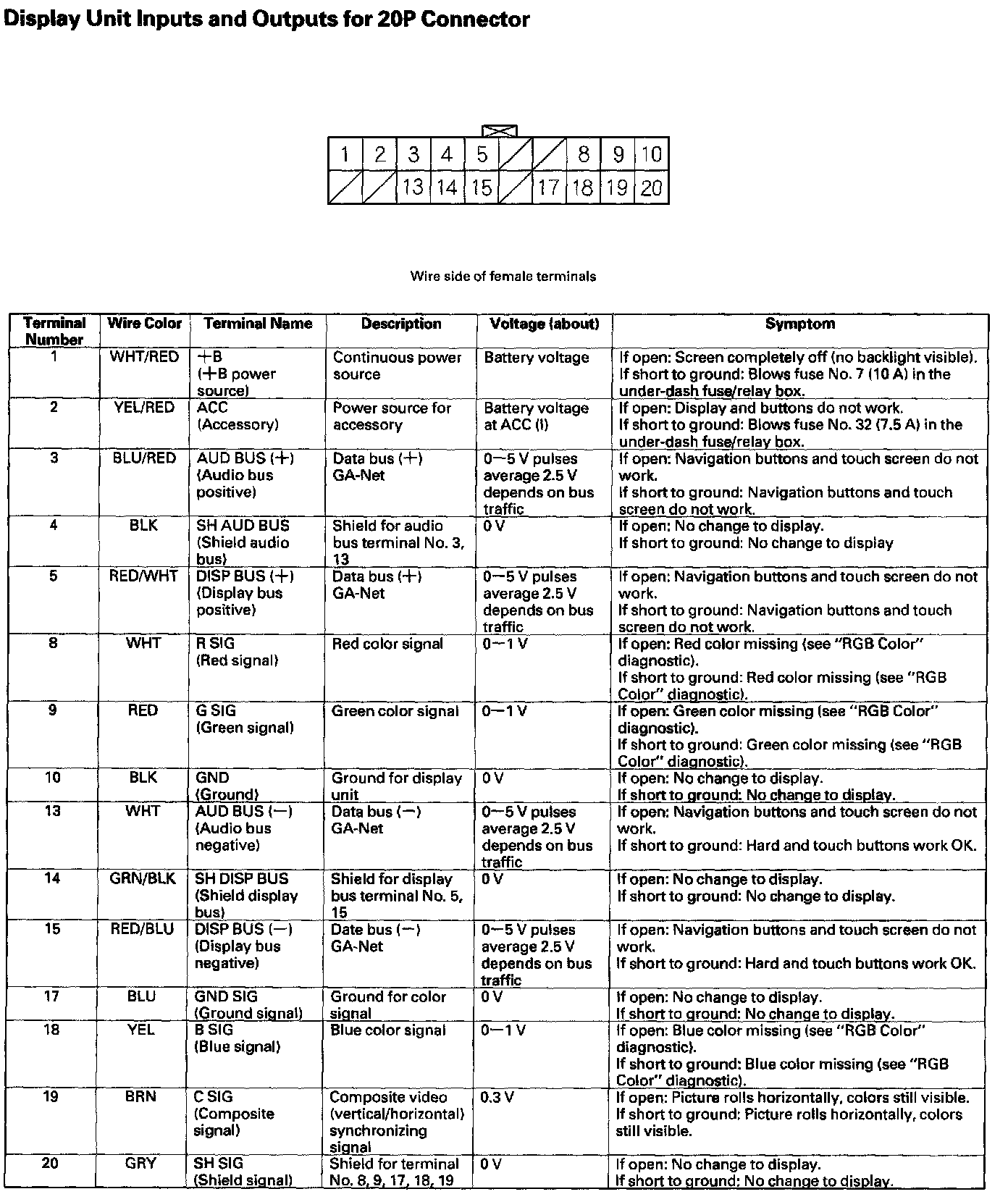

Display Unit Inputs And Outputs For 20P Connector:

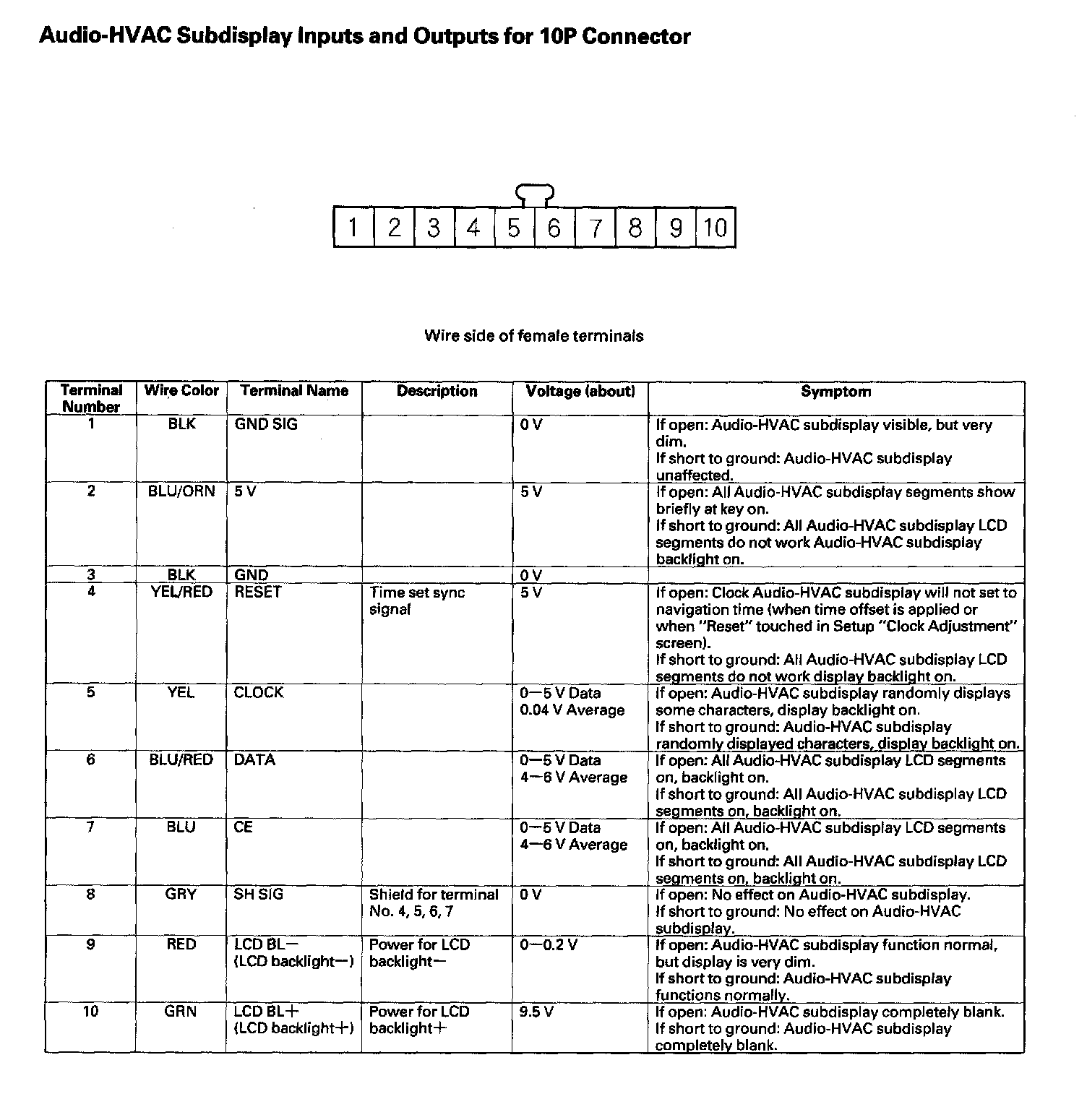

Audio-HVAC Subdisplay Inputs And Outputs for 10P Connector:
