Air Bag Control Module: Locations

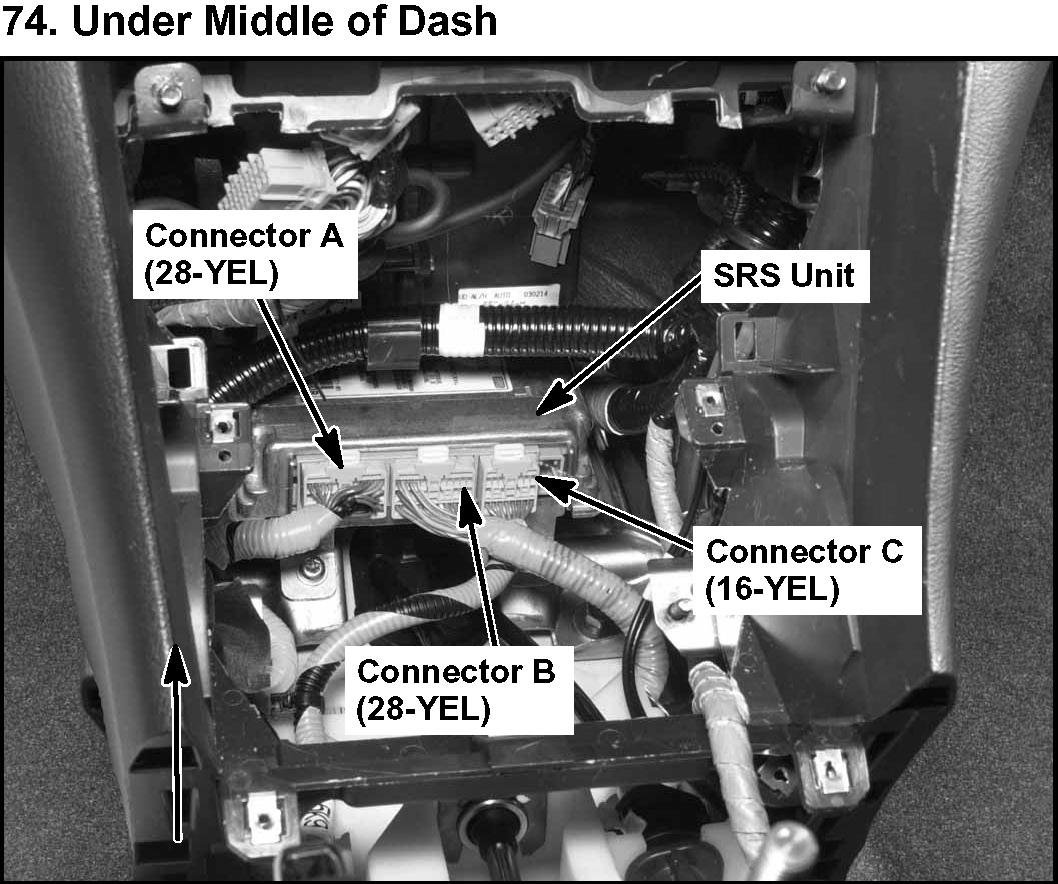

74. Under Middle Of Dash:

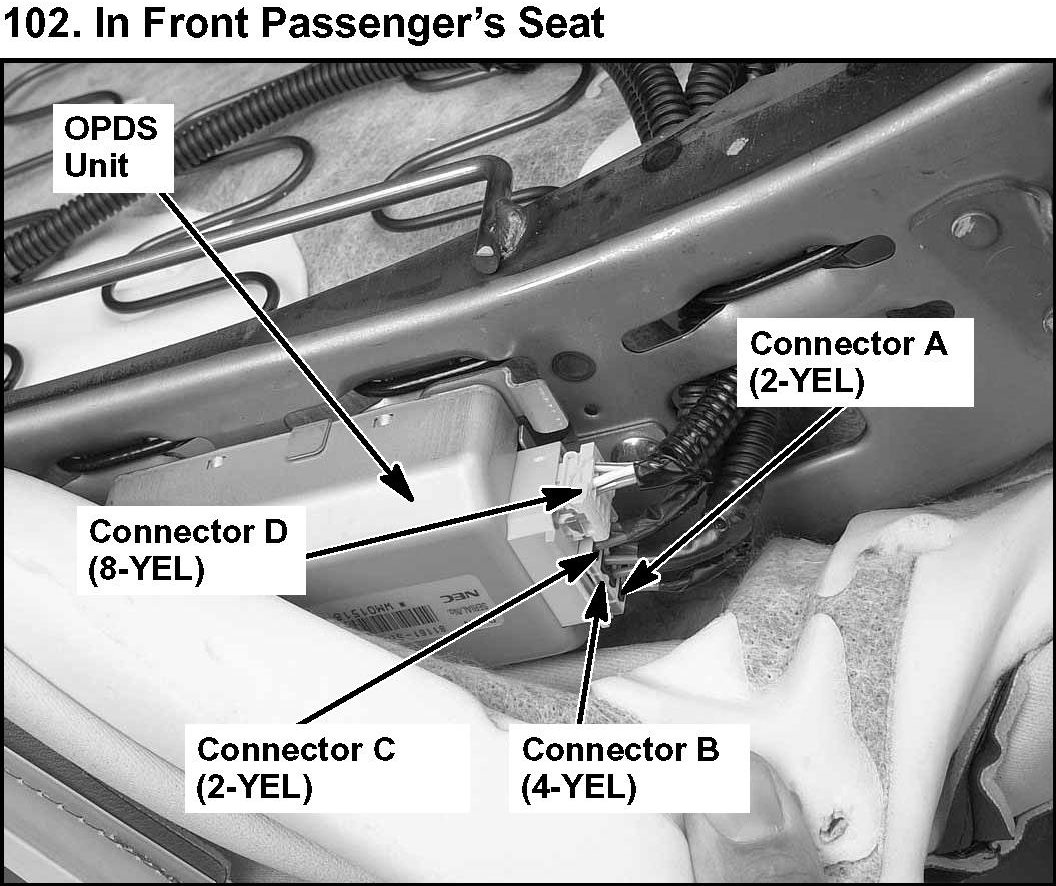

102. In Front Passenger's Seat:

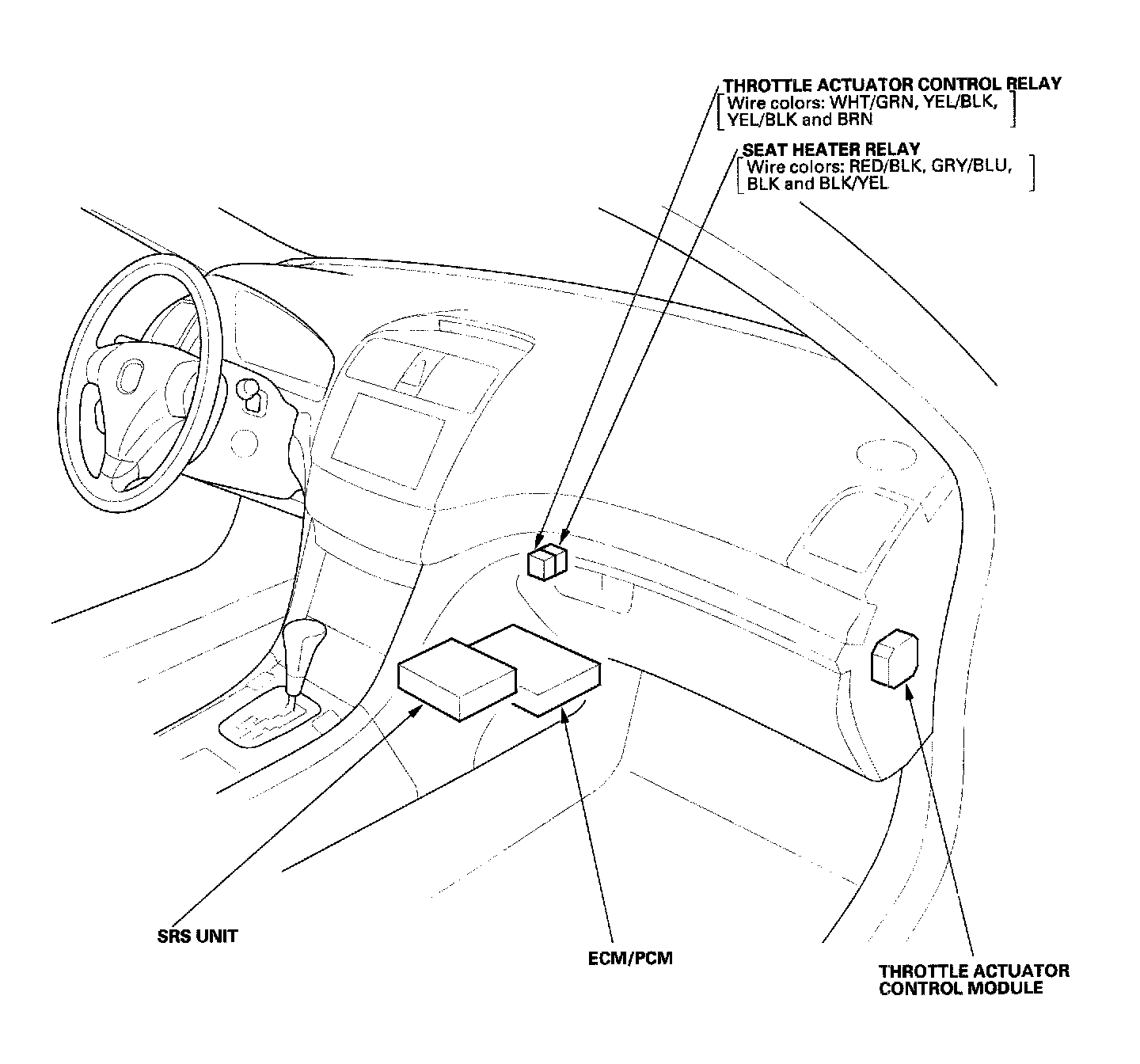

Relay And Control Unit Locations - Dashboard:

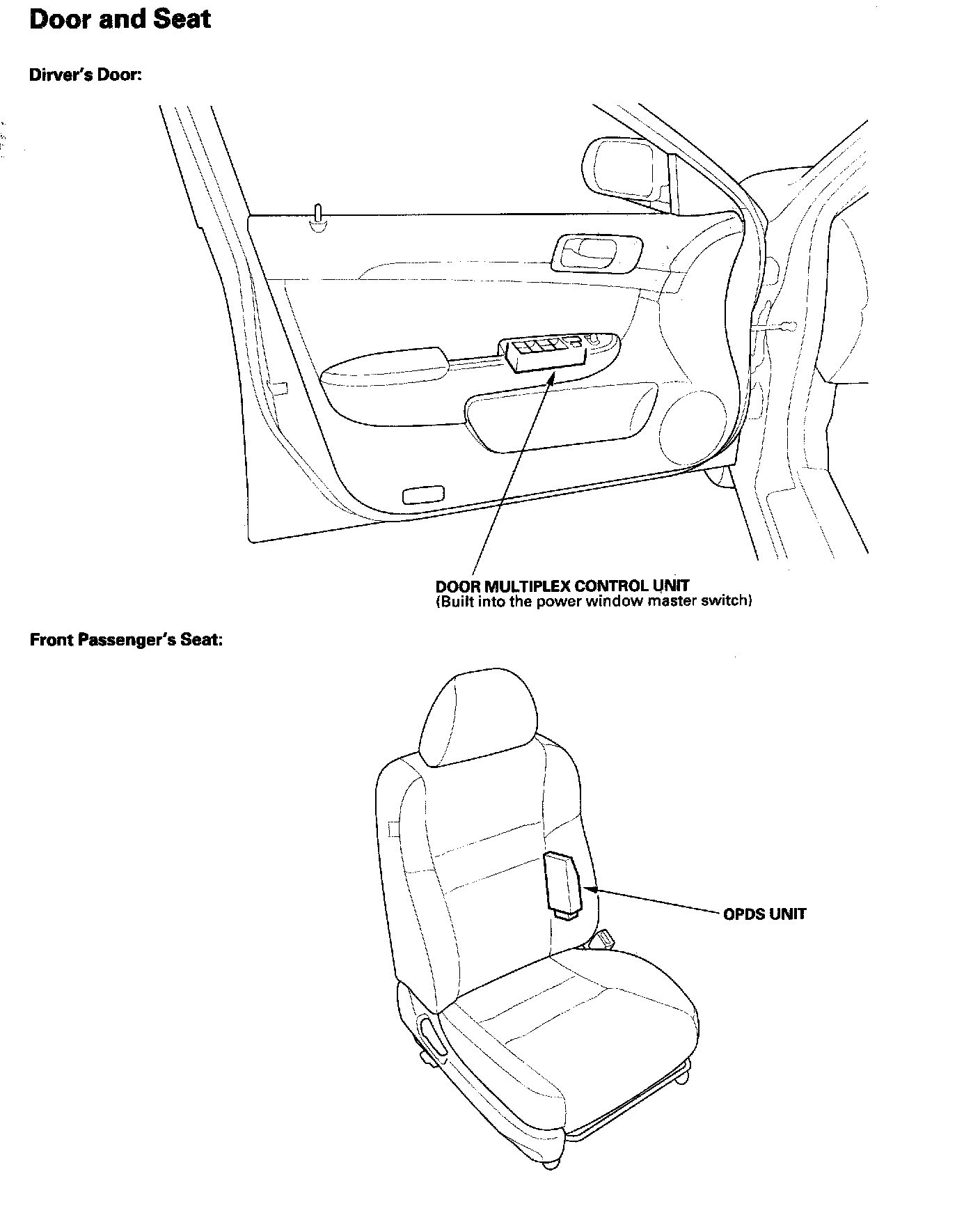

Relay And Control Unit Locations - Door And Seat:

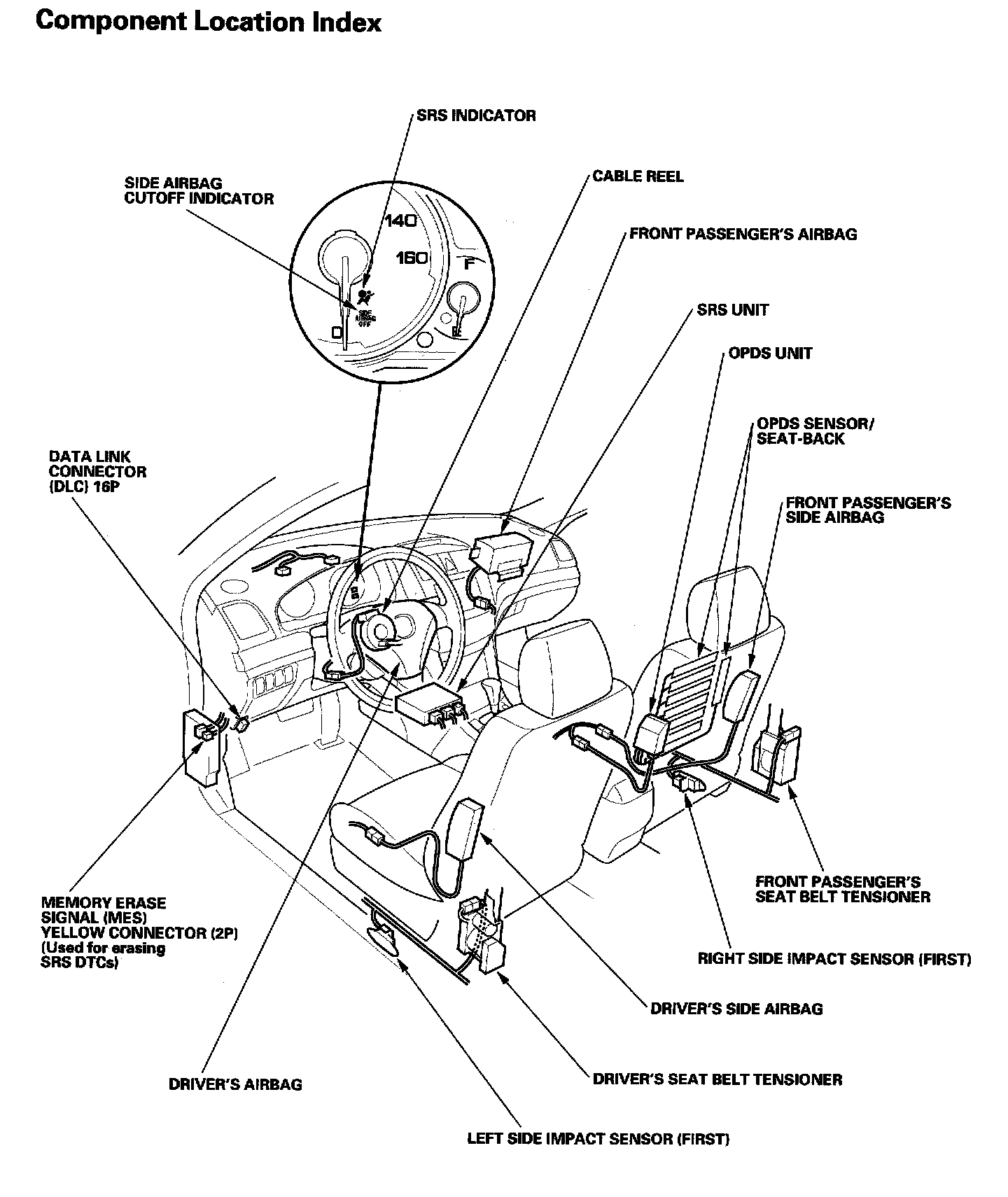

SRS - Component Location Index:
