Connecting Rod Bearing

Connecting rod bearing
Reinstall the bearing half and cap, and torque the bolts to 36 Nm (3.7 kgf-m, 27 ft. lbs.) + 120°.

NOTE: Do not rotate the crankshaft during inspection.

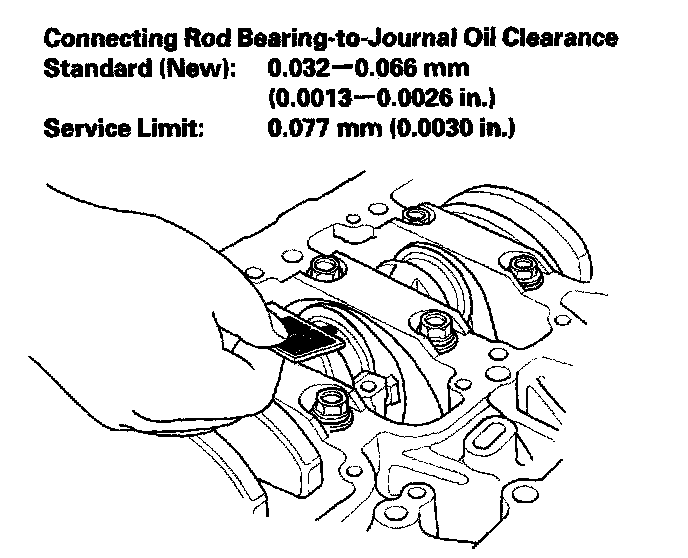

Remove the rod cap and bearing half, and measure the widest part of the plastigage.
