Power Window Switch: Locations

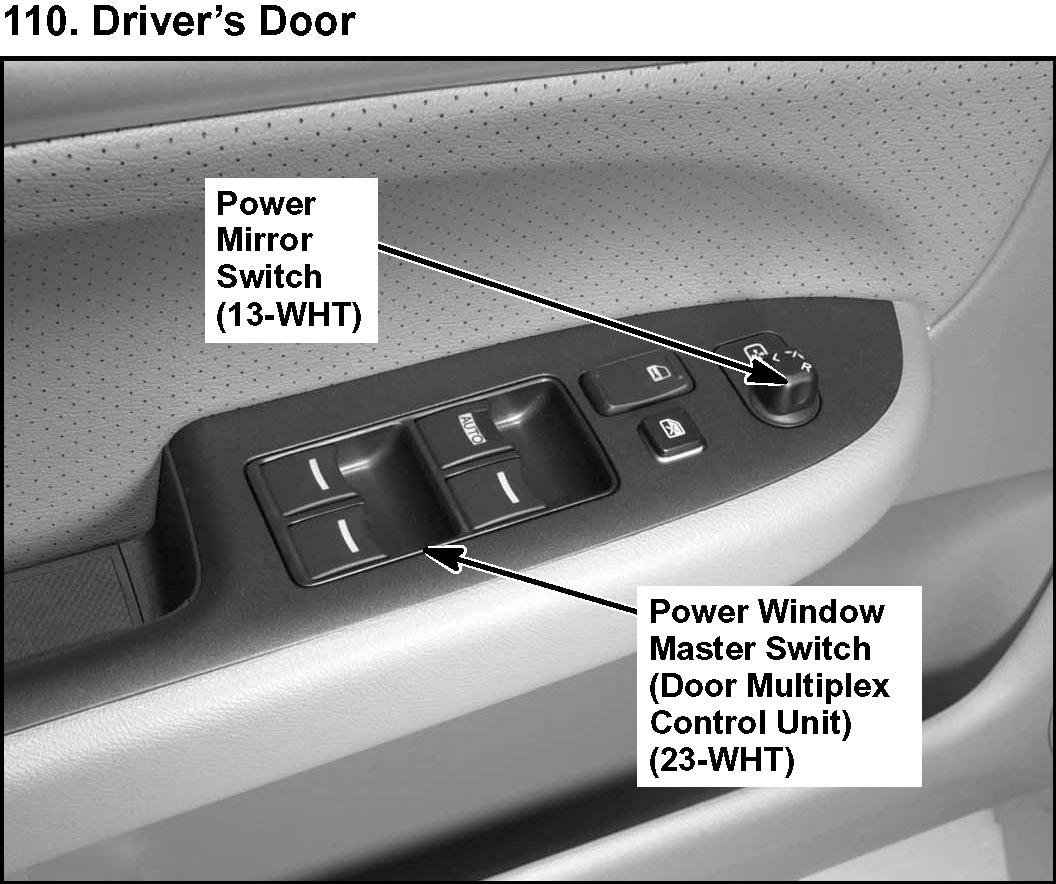

110. Driver's Door:

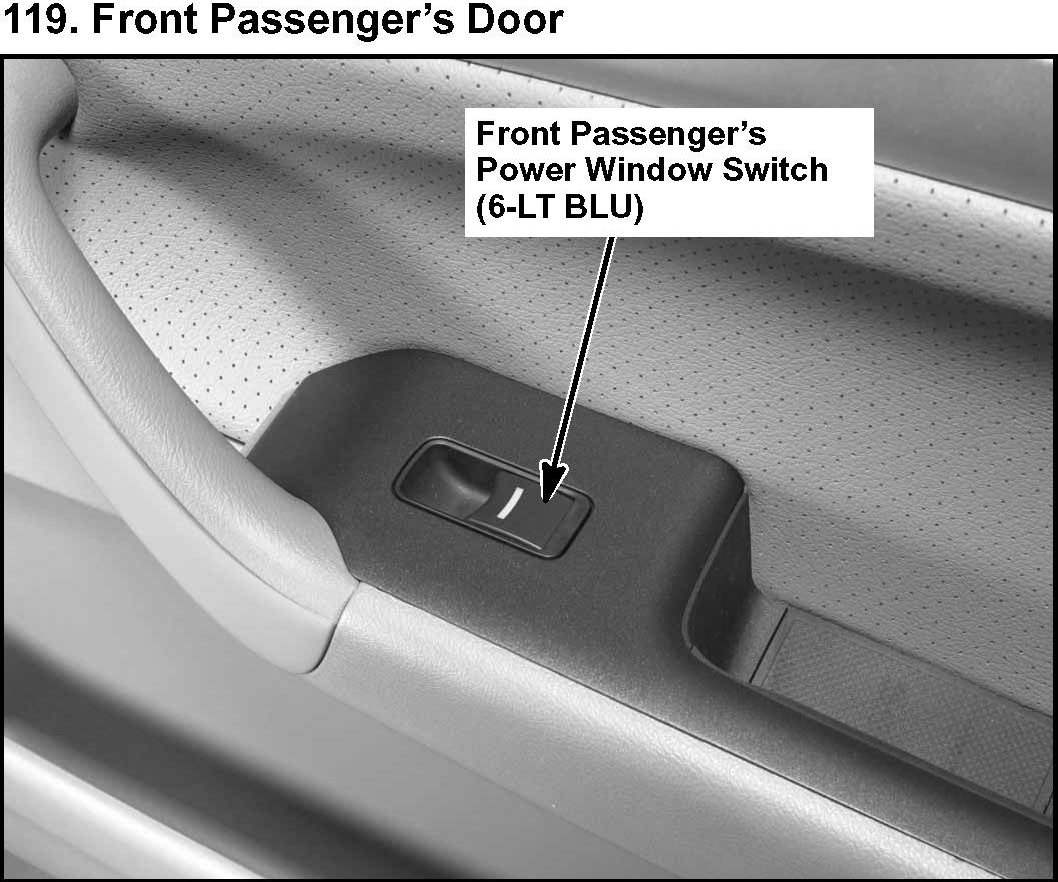

119. Front Passenger's Door:

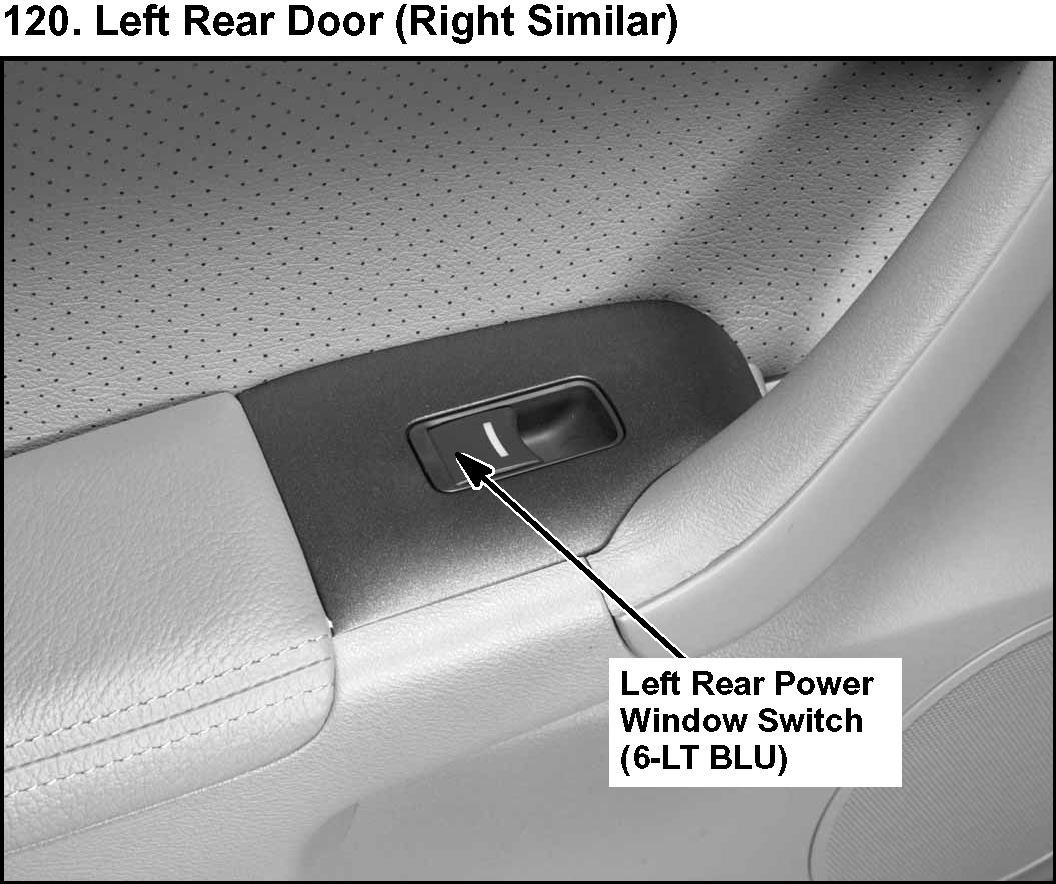

120. Left Rear Door (Right Similar):

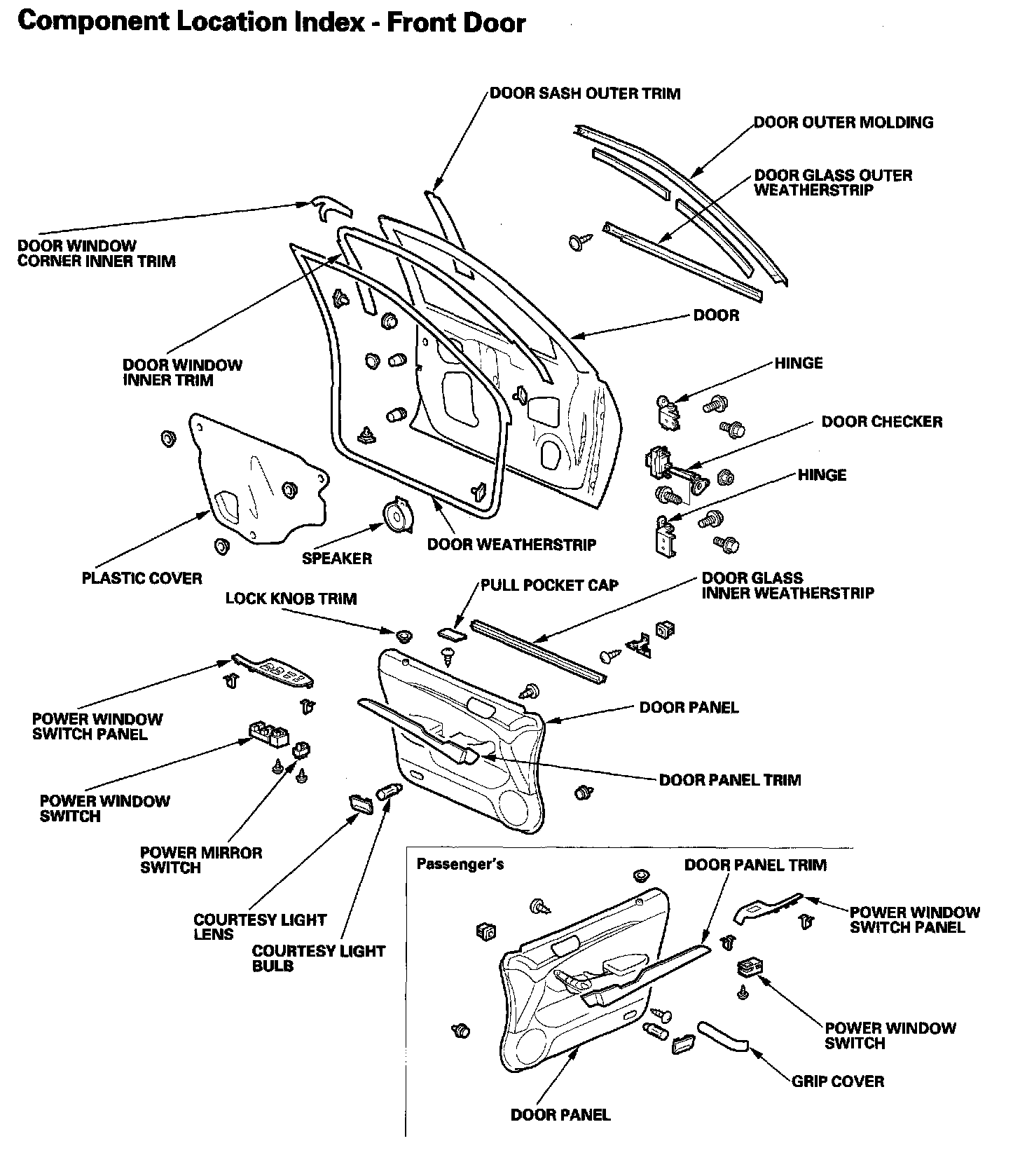

Doors - Component Location Index - Front Door:

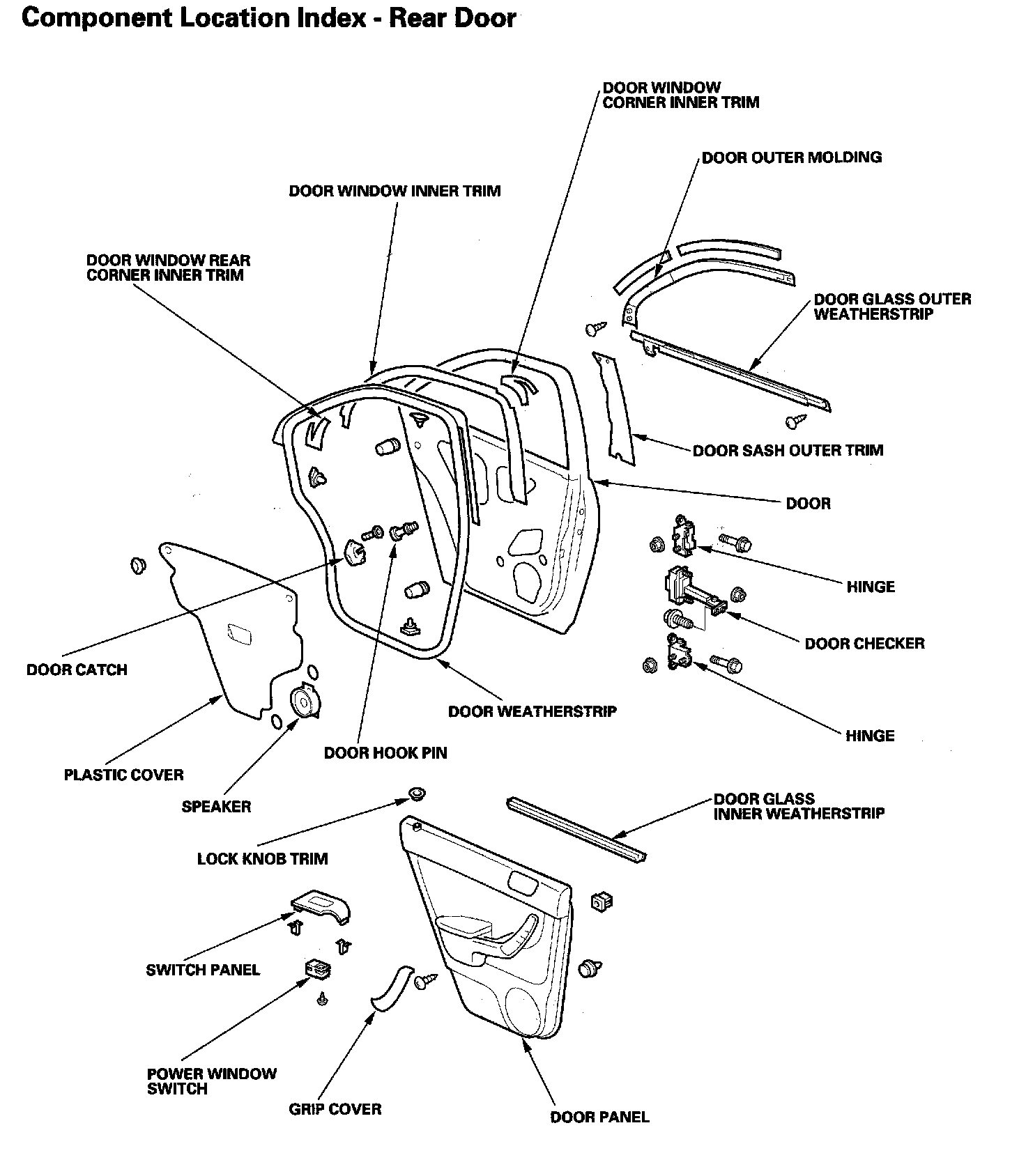

Doors - Component Location Index - Rear Door:



Power Windows - Component Location Index:



Doors - Component Location Index - Front Door:



Doors - Component Location Index - Rear Door:
